C157

$382.65$387.65

SKU: c157
Clear Options

Information

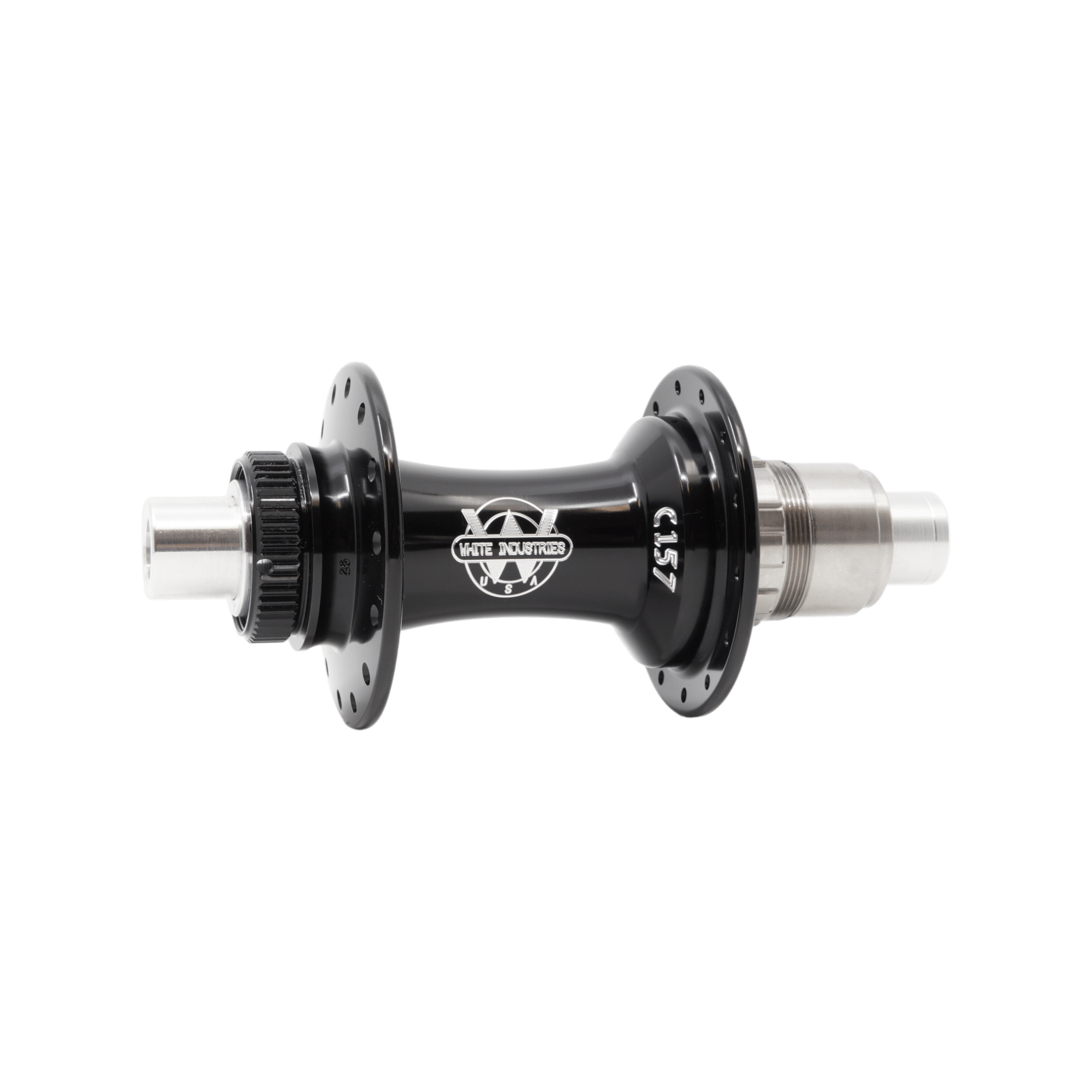

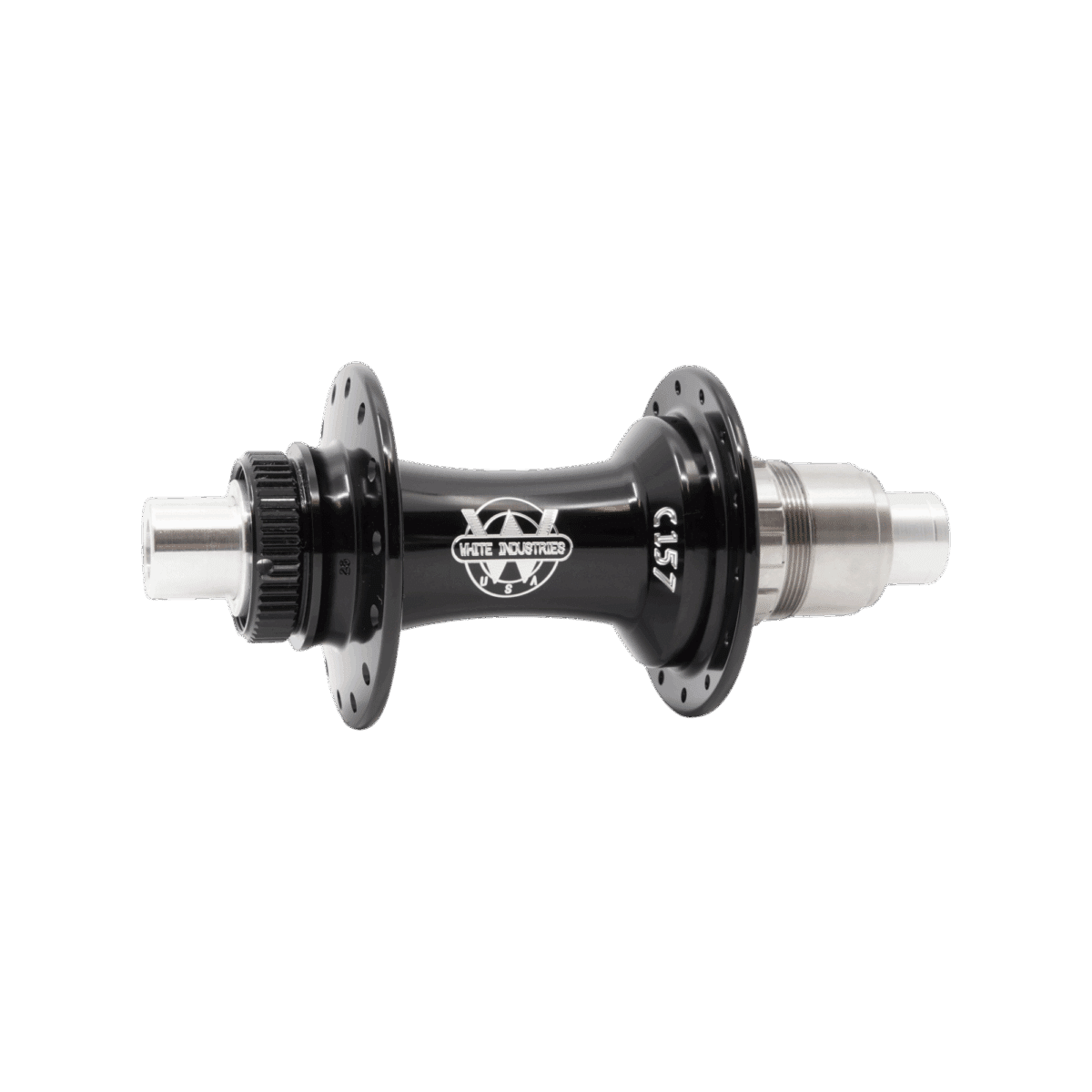

Our C157 hub is a “Super Boost” 12mm x 157mm version of our CLD disc hub.  The Super Boost spacing allows for even wider hub flange spacing which results in better spoke bracing angles.  Made in our shop from U.S. sourced 6061-T6 aluminum.



Features

  • U.S. made 6061-T6 aluminum
  • Enduro bearings
  • 6/4 titanium freehub body
  • 3-pawl, 48 point (7.5 degree) engagement
  • Compatible with Center Lock style rotors
  • Rotor lockrings not included
  • Rotor lockring compatibility
      • Internally splined lockring such as Shimano SM-RT81
  • Cassette spacer included only on XDR freehub bodies
    • Available separately for Shimano HG11 (part# SPACER11)

Specs

  • 305g
  • 28H, 32H, and 36H drillings
  • Axles:
    • 12mm x 157mm Thru

Bearings

  • All Enduro ABEC 5 except 3802W (ABEC 3)

Driver Style

Left hub shell bearing Right hub shell bearing Inner driver bearing

Outer driver bearing

Shimano Hyperglide 11 speed

61902-SRS 61902-SRS 3802W LLB

61902-SRS

Shimano Micro Spline

61902-SRS 61902-SRS 3802W LLB

3802W LLB

SRAM XD/XDR

61902-SRS 61902-SRS 3802W LLB

3802W LLB

Campy 11 speed

61902-SRS 61902-SRS 3802W LLB

3802W LLB

Wheelbuilding specs

  • Spoke hole diameter
    • 2.6mm

Left flange diameter

Right flange diameter Center to left flange

Center to right flange

60mm

60mm 40mm

26.85mm

Technical Documents



Additional information

Weight N/A
Dimensions N/A
Color

, , , , , ,

Spoke Count

, ,

Axle Type

Cassette Compatibility

, , ,
