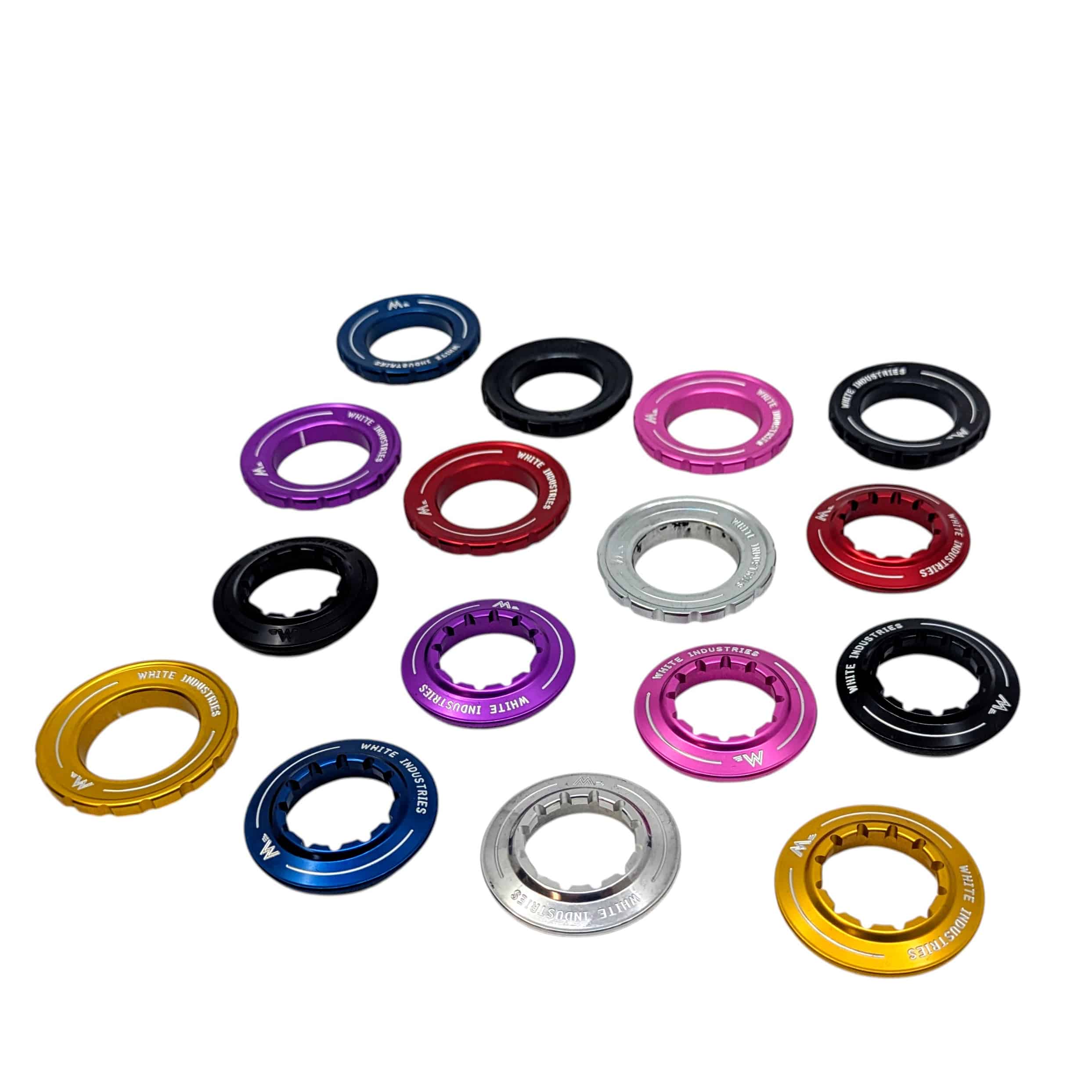

White Industries CLD Lockring

Center Lock Disc Lockrings

$27.25

The White Industries Center Lock Disc Lockring is precision CNC-machined in Petaluma, California for a secure fit and premium finish. Available in internal and external spline options, each lockring is polished, anodized, and machine engraved to complement White Industries Center Lock hubs and most Shimano-compatible applications.

SKU: CLRING
Category: , ,

Description

We machine every Center Lock Disc Lockring in our Petaluma, California facility with the same attention to detail found in every White Industries component. First, we precision machine and polish each lockring. Next, we anodize the finish and add precision machine-engraved logos—not laser etched—for a premium look that lasts.

These lockrings pair perfectly with the White Industries CLD Hub, CLD+ Boost Hub, and C157 Superboost Hub. They are also compatible with many other Center Lock hub brands. Choose from internally splined or externally splined versions to match your bike and application.

Features

  • Precision CNC-machined in Petaluma, California
  • Precision machine-engraved logos, never laser etched
  • Machined, polished, anodized, and engraved under one roof
  • Available in internal and external spline versions
  • Compatible with White Industries CLD, CLD+, and C157 hubs
  • Fits most Shimano Center Lock hub applications
  • Made in the USA

Technical Documents

Looking for more detailed technical info? Visit our Technical Documents page here.

Specs

  • Colors: black, blue, gold, pink, polished silver (not anodized), purple, red, stealth black (logos are blacked out)
  • Finish: polished, then anodized, then the logos are machine-engraved
  • 6061-T6 aluminum
  • Knurled, with stainless steel washers
  • Internally splined and externally splined versions
  • Torque: 40Nm/30 ft-lbs
  • Tools:
    • Internally splined: 12 spline
      • Park Tool FR 5.2
    • Externally splined: 16 notch/44mm OD
      • Park Tool BBT-19.2 (or 19.3 etc.)
  • Weight
    • Internally splined: 9g
    • Externally splined: 11g

Compatibility

  • Compatible with center lock style disc hubs
    • White Industries CLD, CLD+ Boost, and C157 Superboost hubs
    • Other brands of center lock style hubs
  • Not compatible with 6-bolt disc hubs
  • Internally splined lockrings compatible with:
    • 12mm Thru axles
    • QR axles
    • Not compatible with 15mm Thru axles
  • Externally splined lockrings compatible with:
    • 12mm Thru axles
    • 15mm Thru axles
    • QR axles
    • Some carbon forks don’t have clearance for externally splined lockrings

What's In The Box

What’s in the box

  • One center lock lockring with steel lock washer

FAQ

Can I use the internally splined lockring as a cassette lockring?

No, it’s not designed for cassettes!
