CLD

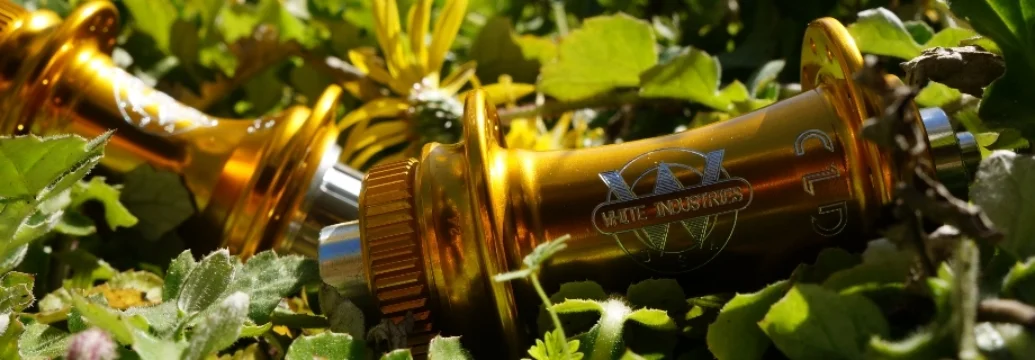

The CLD, Center Lock Disc, is a splined disc interface this has allowed us to make our lightest disc hub to date without sacrificing any durability. The CLD hubset is compatible with all Shimano center lock discs including the Ice 140mm rotors. The CLD comes in a low spoke count of 24h and available in hole drilling sizes up to 36h accommodating most rims. Compatible with multiple front axle types such as QR, 12mm thru or 15mm thru and compatible with QR or 12x142mm rear axle types (boost hubs here). The ease of removing and reinstalling the disc rotor along with the other benefits center lock disc brake systems offer to the rider makes this hubset perfect for your next road, cyclocross, or mountain disc bike.
SPECS
CLD FRONT
Shell: 6061 aluminum
Axle: 17mm cro-mo
QR
12 THRU
15 THRU
Bearings: Two: 17287-2rs
O.L.D.: 100mm
Weight: 145g
Finish: polished silver, black, gold, pink, purple, red or blue anodized
Spoke Hole Drilling: 24h, 28h, 32h, 36h,
US MSRP: Silver: $169.00 Black: $176.00
Other colors $189.00
CLD REAR
Shell: 6061 aluminum
Axle: 15mm cro-mo
QR X 135
12 X 142 THRU
Freehub body: 6al4v Titanium 11 speed, 9/10 speed compatible when used with included spacer
Specify:
Shimano
Campy
SRAM XD/ SRAM XDR
Driver3 pawl/ 48 point engagment
Bearings:
Shimano: three: 6902-2rsone 3802W
Campy two: 6902-2rs two 3802W
O.L.D.: 135mm or 142MM
Weight: 265 grams
Finish: polished silver, black, gold, pink, purple, red or blue anodized
Spoke Hole Drilling: 24h, 28h, 32h, 36h,
US MSRP Silver: $332.25 Black: $339.25
All Other colors: $352.25
FRONT
Left Center to Flange: 20.5mm
Right Center to Flange: 34.5mm
Flange diameter: 45mm
OLD: 100
REAR
Left Center to Flange: 33mm
Right Center to Flange: 19mm
Right Flange diameter: 55mm
Left Flange Diameter : 45mm
OLD: 135/142
