Information

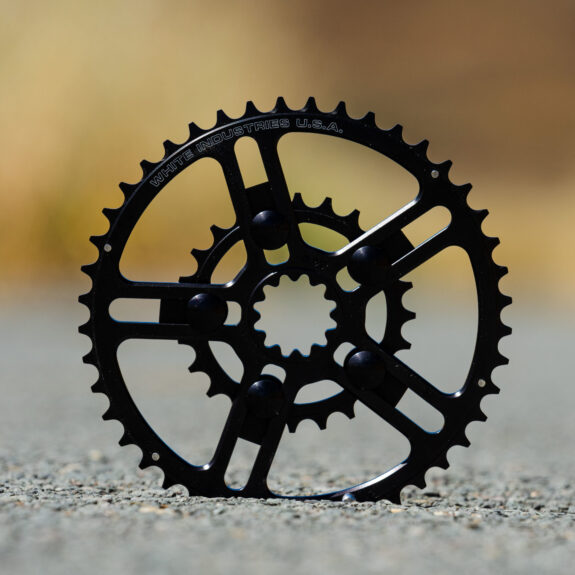

These hardware sets are needed to mount VBC 2x chainrings to outer VBC 2x chainrings.  If you are purchasing a VBC chainring “set” the hardware is already included and the rings will be assembled together.  There are two types of VBC 2x chainrings, v1 for the older 9-11 speed rings, and v2 for the new 9-12 speed rings.  Refer to the tech docs below for information on how to identify which version rings you have and installation instructions.

You would need a hardware set if:

1. You are purchasing separate VBC 2x inner and outer rings
   1. You need this hardware to bolt the rings together
2. You lost some of your hardware when working on your bike
3. Some other odd reason we’re not aware of

Specs

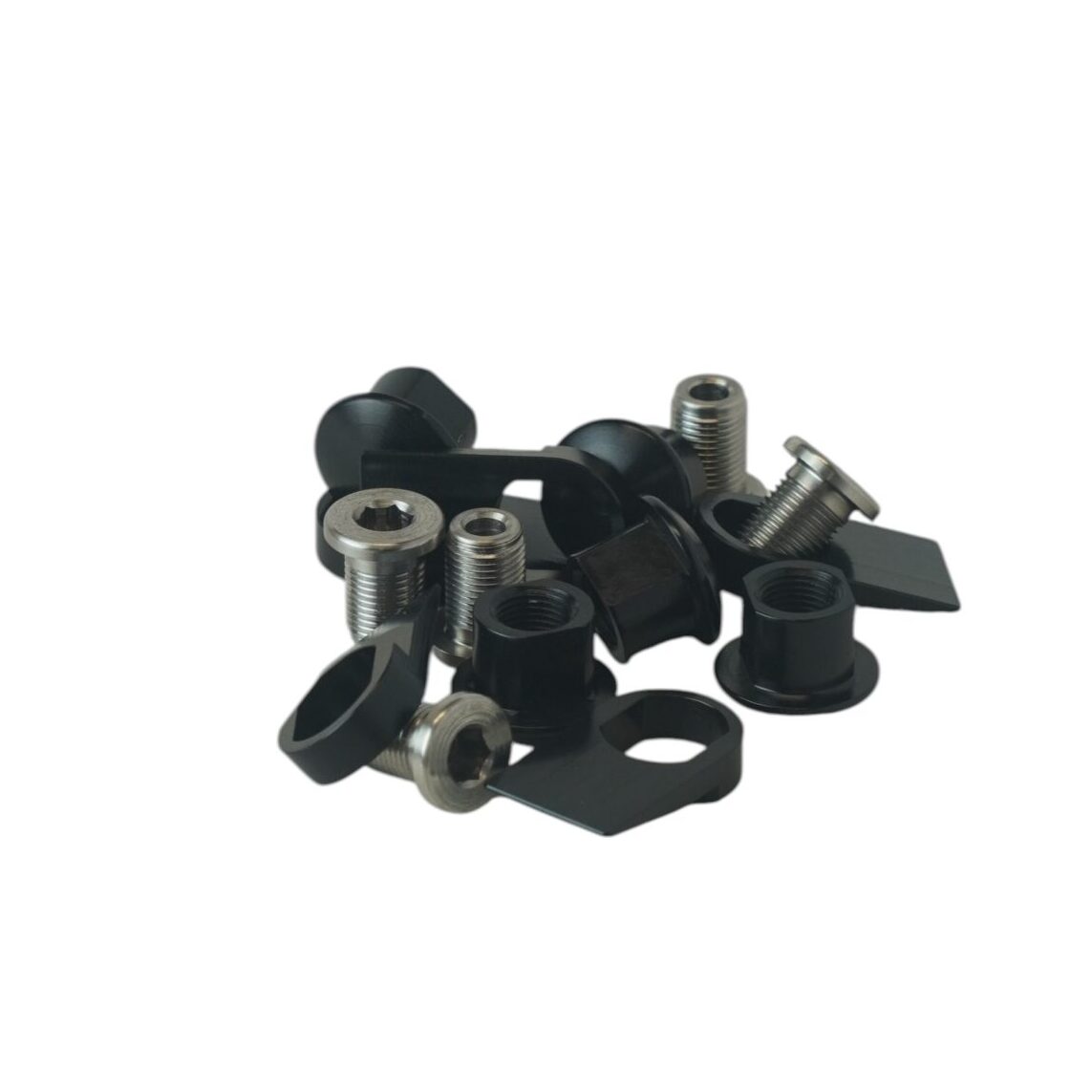

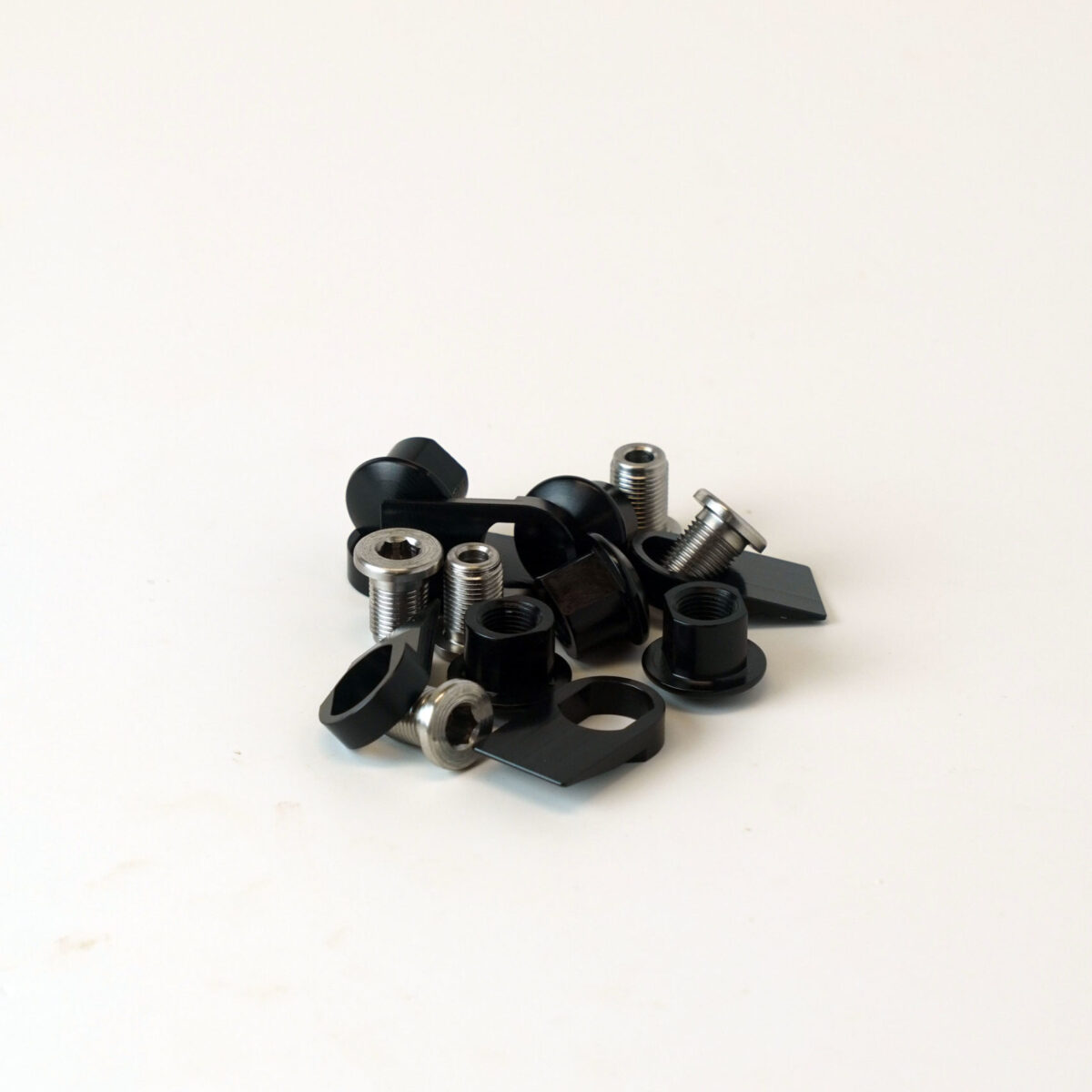

• Hardware sets include:
  • 5 shift ramps
  • 5 chainring bolts
  • 5 chainring nuts

Tool

• 5mm hex bit/wrench

Torque

• 7 ft lbs (10 Nm)

Tech Docs

• VBC v2 Chainring Assembly Instructions
• VBC v1 and v2 Chainring and and Hardware Identification Guide
