External BSA Bottom Brackets Limited Edition

$191.00

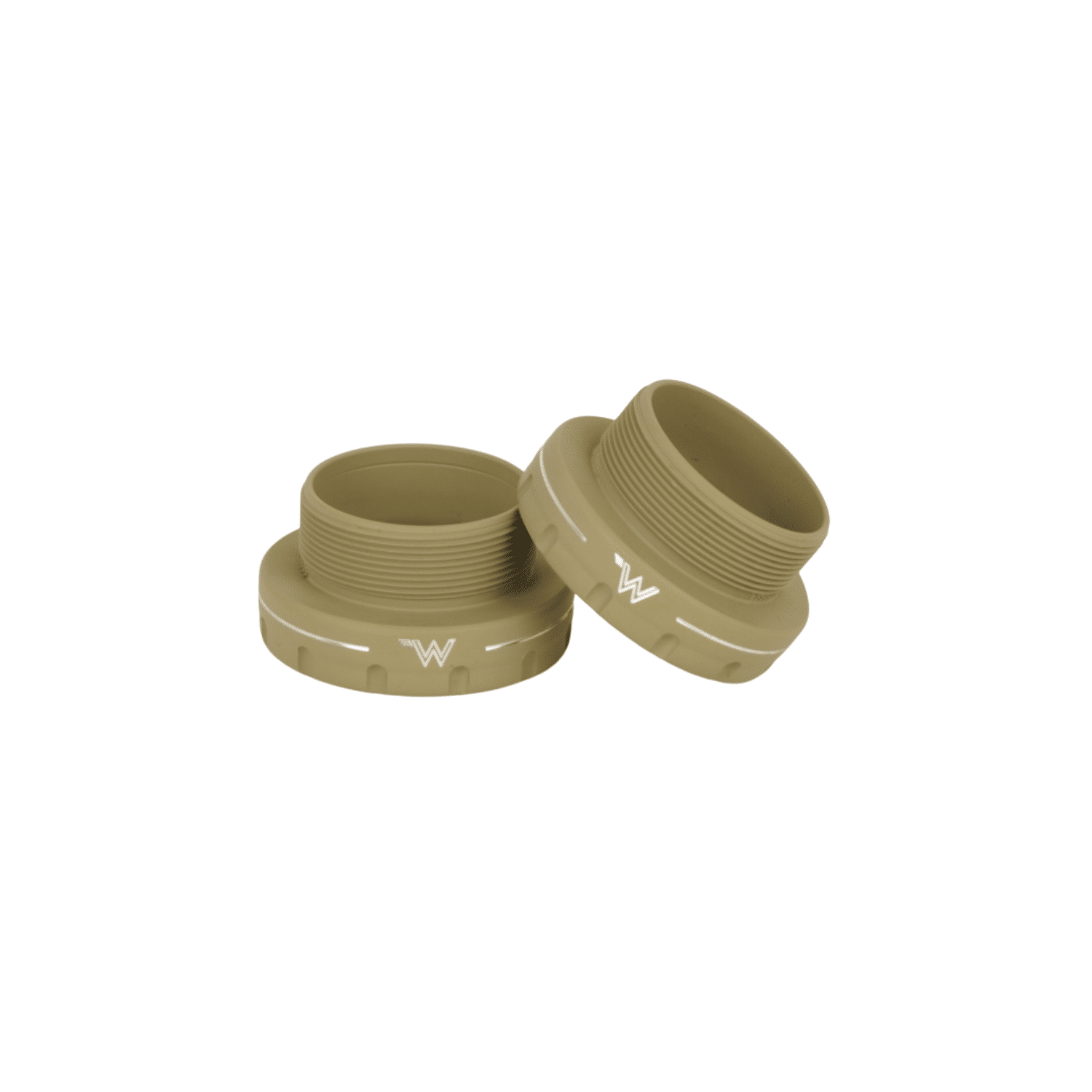

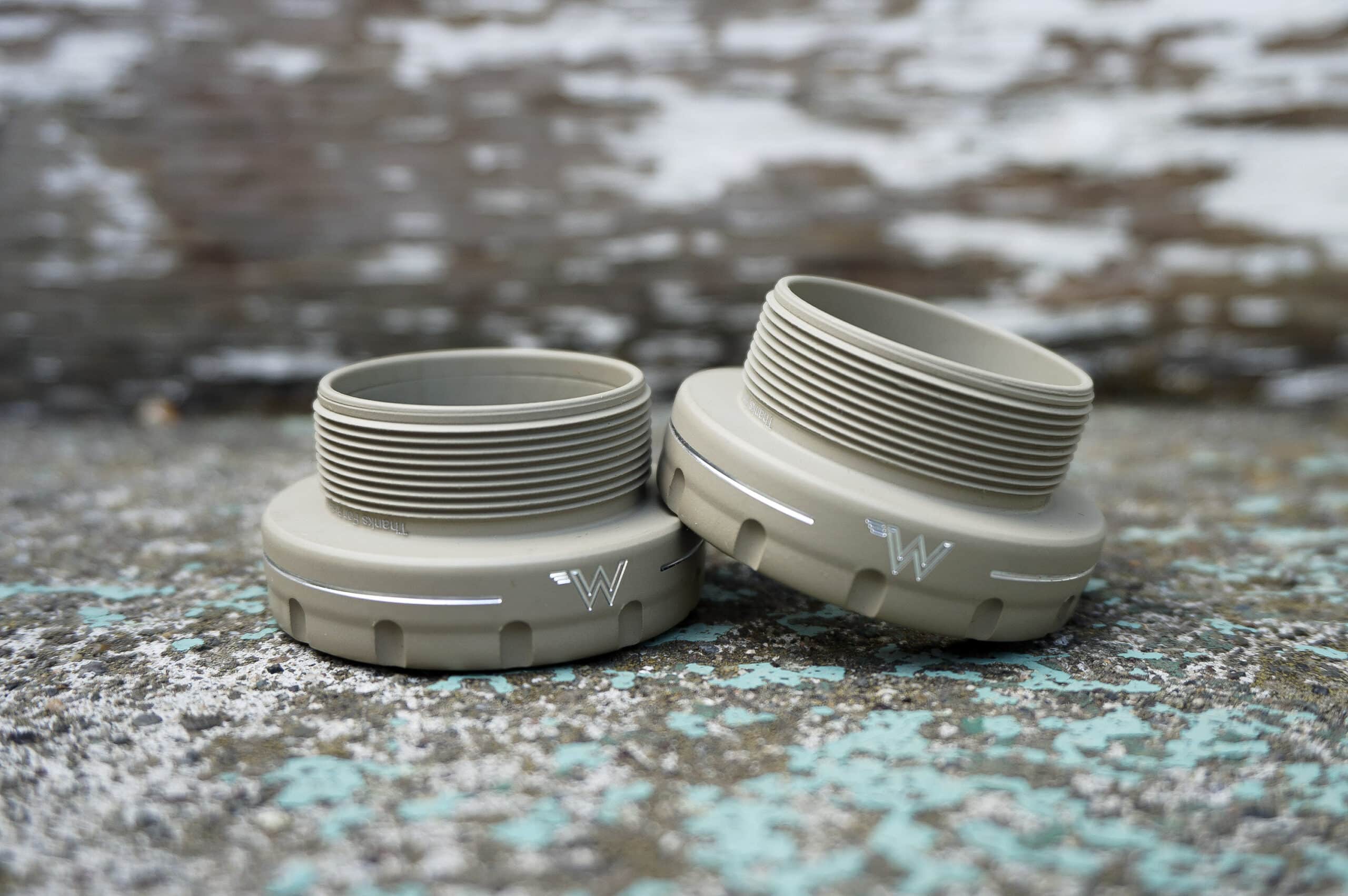

The White Industries Limited Edition Desert Sage Cerakote BSA Bottom Bracket combines premium performance with an exclusive finish. Precision-machined in Petaluma, California, it features premium Enduro bearings, durable Cerakote coating, and the legendary reliability that defines every White Industries component. Available for a limited time.

SKU: xtrnlbsabttmbrckts-1
Category: ,

Description

Our Limited Edition Desert Sage Cerakote BSA Bottom Brackets bring a fresh finish to one of our most trusted components. Inspired by the muted tones of the Eastern Sierra, this exclusive Cerakote color adds understated style to your build while delivering the precision and durability White Industries is known for.

Every White Industries external BSA bottom bracket is precision-machined in our Petaluma, California facility and built around premium Enduro stainless steel angular contact bearings.

The BSA (British Standard Cycle) thread standard, also known as British or English threading, remains one of the most widely used threaded bottom bracket standards on modern bicycles. Whether you’re upgrading an existing bike or building a custom project from the ground up, the Desert Sage BSA Bottom Bracket delivers premium performance with an exclusive finish.

Like every White Industries component, it’s designed to be serviceable, durable, and built for the long haul.

Features

  • Limited Edition Desert Sage Cerakote finish
  • Precision-machined in Petaluma, California
  • External BSA threaded bottom bracket design
  • BSA also known as British or English threading
  • External bearing placement allows for larger, more durable bearings
  • Smooth, reliable performance
  • Designed for long-term serviceability and durability
  • Made in the USA

Technical Documents

Looking for more detailed technical info? Visit our Technical Documents page here.

Specs

  • 1.37” x 24 TPI threads (“BSA” threads)
  • Designed to be used on 68mm or 73mm wide bottom bracket shells
  • Enduro stainless steel angular contact bearings
    • Enduro XD15 ceramic-hybrid bearings optional
  • Weight/pr (with bearings and seals)
    • 30mm: 83g
    • 29mm: 90g
  • Cup widths (external section of each cup, including seal)
    • 29mm: 11.5mm
    • 30mm: 11.5mm
  • Thread depths
    • 29mm: 13mm
    • 30mm: 13mm
  • Bearings
    • 29mm: Enduro S71806/29 LLB or CXD 6806/29 LLB
    • 30mm: Enduro S71806 LLB or CXD 6806 LLB
  • Torque: 26-37 ft lbs (35-50 Nm)
  • Tools: 12 notch/46mm
    • Park BBT-79 to BBT-79.3
    • Abbey BSA30
    • Enduro BBT-015
    • Race Face Cinch spanner
  • Cerkoated with machine engraved logos

Compatibility

  • Designed to be used on threaded BSA 68mm or 73mm wide bottom bracket shells
  • Comes in three bearing sizes to fit:
    • 30mm White Industries MR30 series cranks as well as other brands of 30mm spindle cranks
    • 29mm SRAM DUB cranks as well as other brands of 29mm spindle cranks
    • 24mm Shimano HollowTech II road and mountain cranks as well as other brands of 24mm spindle cranks
    • Not compatible with square taper style spindles
  • Tools: 12 notch/46mm

What’s In The Box

  • Left and right threaded BSA cups with bearings installed and two external seals
    • Seals should sit directly against the bearings, with the part numbers (molded into the seal) facing out
  • Cup or spindle spacers not included
  • Sleeve not included (not currently available)
