Lead Time Update: 8/4/22

Current lead time for most parts is still 16 weeks from the day you order, but some small parts can now ship within 2 weeks. For details on all lead times please go here. Thanks!

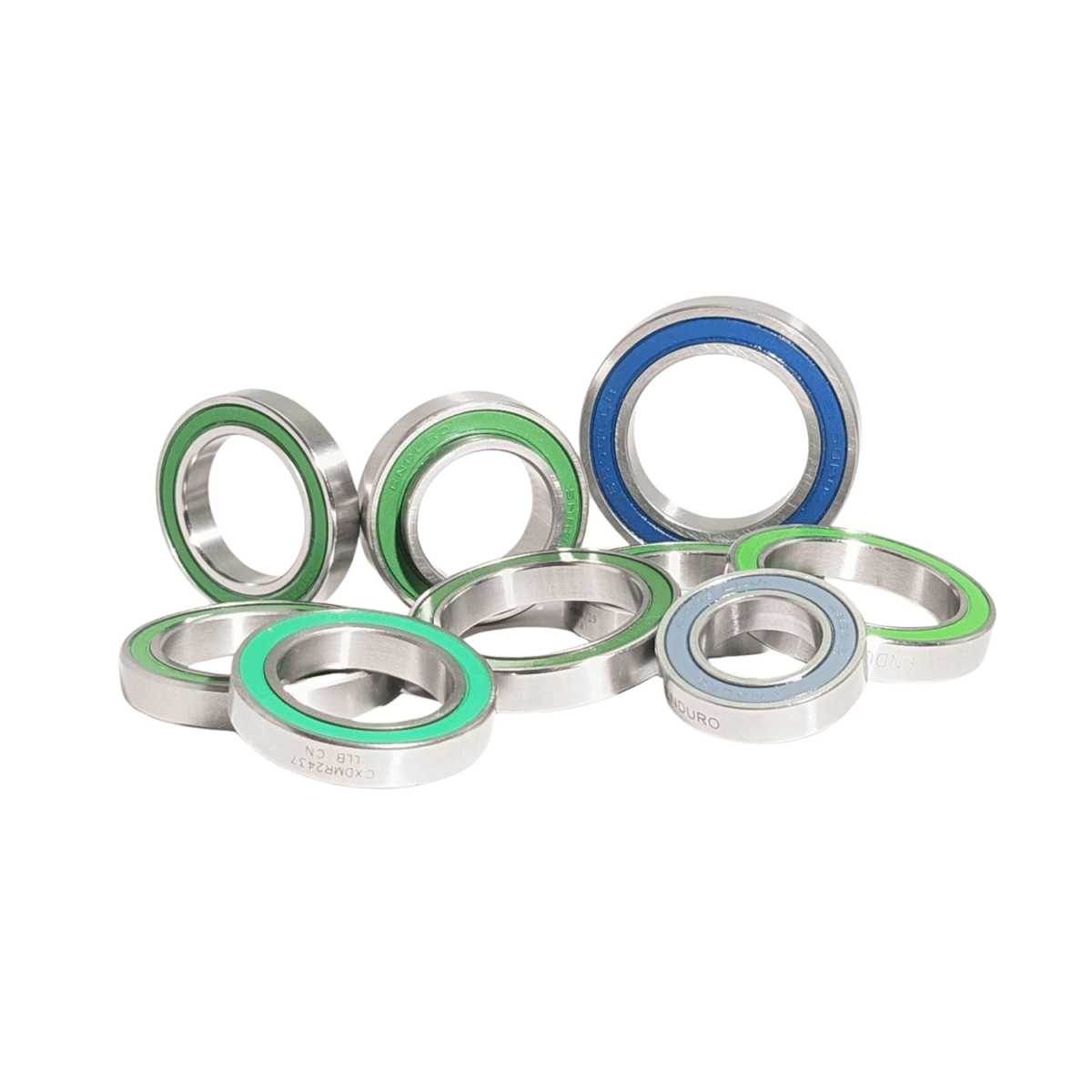

Bottom Bracket Bearings

$13.20$105.50

SKU: bttmbrcktbearings
Clear Options

Information


Since 1996 White Industries has partnered with the folks at Enduro to ensure that the bearings we install in all our products are of the highest standards.  Along the way Enduro has continually sought out better materials, seals, greases, tolerances and manufacturing techniques to stay on the cutting edge of bearing development and performance.

Most of the bottom bracket bearings we use today are ABEC 3 440c stainless steel to resist corrosion common in the bottom bracket area.  The 30mm and 24mm stainless bearings use an angular contact design.  We also spec a special Kluber 72-72 grease with LLB seals on all bottom bracket bearings.

If you are seeking the absolute pinnacle of bearing performance, we offer Enduro XD-15 ceramic bearings as an upgrade.  They feature oversized Grade 3 silicon nitride ceramic balls mated to nitrogen-infused martensitic stainless steel races that are precision machined and ground to ABEC-5 tolerances. They also feature a limited lifetime warranty!

Enduro XD-15 Limited Lifetime Warranty



Notes

  • Bearings sold individually
  • Refer to the Bottom Bracket pages to determine your bottom bracket model and bearing size
  • Refer to the charts below for bearing details and installation direction



Standard Bearing Specs



Spindle

Diameter

Inside/Outside/Width

(mm)

Material

&

Type

Installation Direction

White Industries Part #

17mm

(Square taper spindle)

17x30x7 Chromium Steel

Non angular contact

Gray seals face out

BR6903

22mm

(Left side bearing for GXP)

22x37x8 Stainless Steel

Non angular contact

Wide inner race inward

BR2237

24mm

24x37x7 Stainless Steel

Angular contact

Green seals face out

BR2437

29mm

(SRAM DUB)

29x42x7 Stainless Steel

Angular contact

Either direction

BR6806/29

30mm Standard

30x42x7 Stainless Steel

Angular contact

Green seals face out

BR6806

30mm Heavy Duty

(Only fits T47 External Heavy Duty BB)

30x47x9 Chromium Steel

Non angular contact

Either direction

BR6906



Ceramic Bearing Specs



Spindle

Diameter

Inside/Outside/Width

(mm)

Material

&

Type

Installation Direction White Industries Part #

17mm

 (Square taper spindle)

17x30x7 Ceramic balls/martensitic stainless races Either direction

BR6903XD

22mm

(Left side bearing for GXP)

22x37x8 Ceramic balls/martensitic stainless races Either direction NA

24mm

24x37x7 Ceramic balls/martensitic stainless races Either direction BR2437XD
29mm

 (SRAM DUB)

29x42x7 Ceramic balls/martensitic stainless races Either direction

BR6806/29XD

30mm Standard

30x42x7 Ceramic balls/martensitic stainless races Either direction

BR6806XD

30mm Heavy Duty

(Only fits T47 External Heavy Duty BB)

30x47x9 Ceramic balls/martensitic stainless races Either direction

NA



Additional information

Weight N/A
Dimensions N/A
BB Spindle Diameter

17mm, 22mm, 24mm, 29mm, 30mm

Bearing Type

, ,
