ENO Flip Flop

Product Details

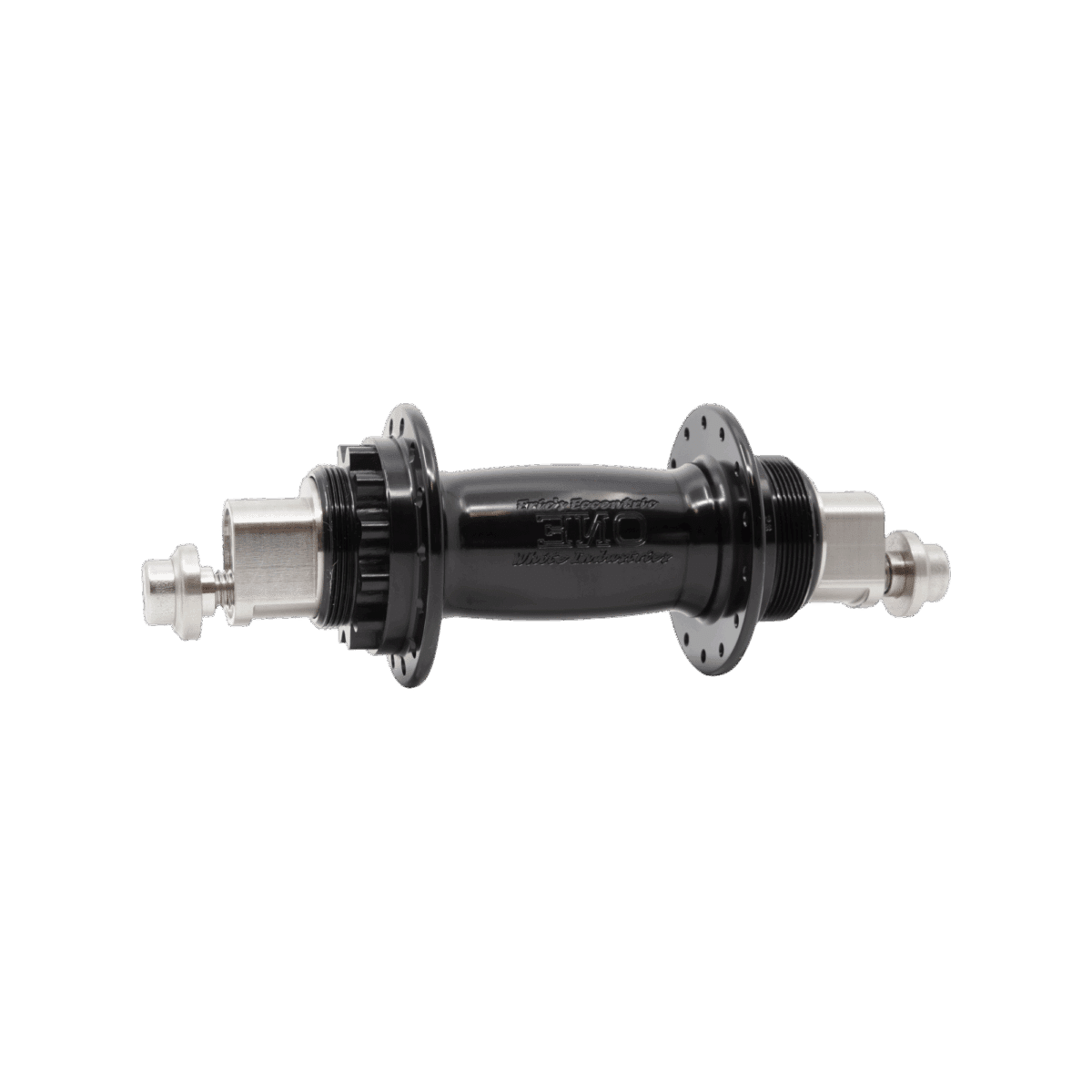

The ENO hub has long been synonymous with the White Industries brand and remains a sought after item.  What does “ENO” stand for?  It’s “ONE” backwards and mirrored, a CNC programming error made years ago that we decided was kind of cool.  So instead of “ONE”, we say, “ENO”, like Brian Eno.  The ENO Flip Flop hub takes a standard threaded freewheel on one side and our proprietary splined fixed gear cogs on the other. The ENO hub comes in five axle variations, each using the same hub shell: two with eccentric axles, and three with straight axles. The eccentric axle ENO hubs are called “ENO ECC” hubs, and allow you to convert your vertical dropout frame to singlespeed or fixed gear, offering 20mm of total fore-aft adjustment.  They comes in 130mm and 135mm axle widths and use bolts with stepped washers to hold the hub in the frame.  A 12mm x 142mm Thru axle option is not available in the eccentric version. The straight axle ENO hubs are simply called “ENO” hubs.  These are designed to be used with frames that have either slotted horizontal dropouts, adjustable dropouts, or an eccentric bottom bracket.  They come in 130mm, 135mm,  and 12mm x 142mm Thru.  The 130mm and 135mm axle widths uses bolts with stepped washers to hold the hub in the frame, while the 12mm x 142mm Thru axle version uses a 12mm Thru axle (supplied by you, to fit your frame) to hold the hub in the frame.

Specs

• Hub shell is made from 6061-T6 aluminum
• Colors: black and polished silver (not anodized)
• Finish: polished, then logos are machine-engraved, then anodized
• Enduro sealed radial carbon steel bearings standard
• Enduro XD-15 Ceramic bearing upgrade available
• Weight: 261g
• Easily serviceable/rebuildable
• Accepts standard 1.375” x 24TPI freewheels
• Accepts proprietary splined fixed gear interface for White Industries fixed gear cogs
• We recommend pairing it with our Mi5 front hub
• Radial spoke lacing not recommended

ENO ECC (eccentric axle) Specs

• 130mm or 135mm axle widths
• Fits frames with vertical dropouts that have 10mm slots
• Eccentric axle allows 20mm fore/aft adjustment
• Stainless M8 x 1.25mm axle bolts w/6mm hex sockets and 10mm stainless axle washers

ENO (straight axle) Specs

• 130mm or 135mm axle widths:
  • Fits frames with vertical dropouts that have 10mm slots
  • Straight axle, no eccentric adjustment
  • Stainless M8 x 1.25mm axle bolts w/6mm hex sockets and 10mm stainless axle washers
• 12mm x 142mm Thru axle width:
  • Fits frames with 12mm x 142mm Thru axles
  • Straight axle, no eccentric adjustment
  • Does not come with Thru axle

Chainlines:

Axle spacing	Freewheel chainline	Fixed gear chainline
130mm	47.5mm	43mm
135mm	47.5mm	43mm
12mm x 142mm	47.5mm	43mm

Bearings

• 130mm and 135mm axles use 2x Enduro ABEC 5 61902-LLU/LLB
• 12mm x 142mm axle uses 2x Enduro ABEC 5  17287-LLU/LLB

Wheelbuilding specs

• Spoke hole diameter: 2.6mm

Left flange diameter	Right flange diameter	Center to left flange	Center to right flange
48mm	48mm	32.5mm	32.5mm

What’s in the box

• One ENO hub
  • 135mm ECC Eccentric axle version comes with axle bolts and washers
  • 135mm straight axle version comes with axle bolts and washers
  • 12mm x 142mm Thru axle version does not come with Thru axle
• Freewheel not included
• Fixed cog not included
• Fixed cog lockring not included

FAQ’s

• Can I get the ENO 12mm x 142mm Thru axle version with an eccentric axle?
  • Unfortunately, no.  That would require a completely new hub design which we can’t justify considering the very, very small number we would sell.
• Can I get the ENO hub in a threaded axle version with nuts?
  • No.
• Can I get the ENO hub in a fixed gear only, or freewheel only version?
  • Unfortunately, no.
• Can I use a quick release skewer with the ENO hub?
  • No.
    • 130mm and 135mm ECC Eccentric axle version uses axle bolts and washers
    • 130mm and 135mm straight axle version uses axle bolts and washers
    • 12mm x 142mm Thru axle version uses a 12mm Thru axle (not included)
• Can I change the spacing on the ENO hub to 120mm or 148mm Thru?
  • No, the hub shell is designed around specific chainlines and can not be changed.
• Can I get these in a custom anodized color or hole drilling?
  • • Unfortunately we do not offer those options.

Technical documents

• ENO Eccentric Hub Instructions
