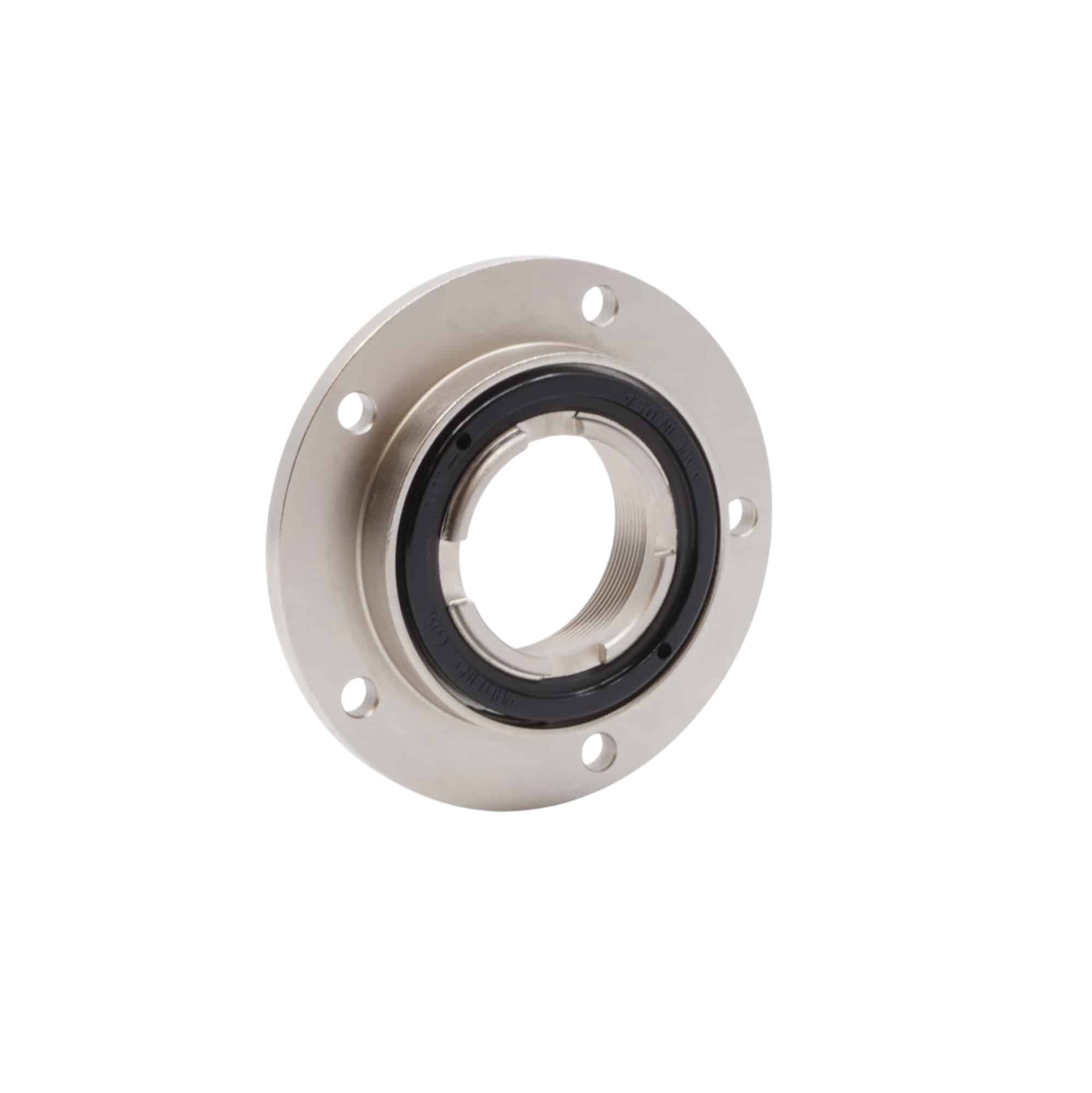

E-Bike Freewheels

Price range: $123.00 through $152.00

SKU: efrwhls
Clear Options

Information


Product Details

Designed for E-Bikes that utilize a “Bottom Bracket Drive” system where the freewheel mounts to the motor output shaft.  This freewheel requires a 5-bolt 67mm BCD “cog” to be mounted to it.  We do not make the “cogs” or any other parts required for these systems.

Specs

  • Threads: 1.375” x 24TPI
  • Standard Engagement freewheels have 3 pawls and 36 points of engagement
  • High Engagement freewheels have 6 pawls and 72 points of engagement
  • Pawls are heat treated S7 tool steel
  • Driver made from heat treated 4130 steel
  • Bearings are Enduro chromium steel bearing packed with a special Mobil XHP222 extra high pressure grease
  • Lockring colors:
    • Silver, Black, Blue, Gold, Pink, Purple, Red
  • Freewheel measurements for chainline calculations:
    • See the tech drawing in the photo gallery for specs

Compatibility

  • Works with 5 bolt, 67mm BCD cogs
  • Mounting holes are drilled for M5 bolts and are not threaded
  • We do not recommend or endorse any brand, size, or style of cog

Tools

  • White Industries part #FWTOOLE  4-prong freewheel remover tool
  • Park FR-6 4-prong freewheel remover tool will work on our freewheels mounted on standard (non-eccentric) hubs
  • Park SPA-2 (the red one) pin spanner needed to remove the freewheel lockring

Bearings

Freewheel Model Enduro Bearing  Inside/Outside/Width (mm) ABEC Rating/Material
E-Bike Freewheel BB67082RS-6W 40x50x6 3/chromium steel

FAQ

  • Can I swap my lockring for a different color?
    • Yes!  We now offer lockrings in all our ano colors (Silver, Black, Blue, Gold, Pink, Purple, Red).  Go here if you want to purchase those separately.
  • I’m a big/burly/fast rider.  Should I go with Standard Engagement or High Engagement?
    • Either will work fine.  Just a matter of how many points of engagement you want.
  • Can I rebuild my White Industries freewheel?
    • You bet.  We sell the outer gears (they come with the bearing installed), bearings, pawls, springs, drivers, seals and lockrings if needed (did we leave anything out?).  Basically, we’ll sell you whatever parts you need to get your freewheel working again.
