Bearing Press by White Industries

Bearing Presses

Price range: $23.00 through $57.00

Finally, a bearing press that doesn’t cost an arm and a leg!  If this looks like just a piece of threaded rod and some precision bearing guides, you’re right! The important parts are the precision bearing guides, but usually you’re forced to buy a beautifully made (and expensive) handle/press to go with them.  For the home mechanic, our presses will do the same job for way less.

SKU: bearingpresses
Category:

Description

Product Details

Installing bearings should be precise — not improvised.

Our precision bearing guides are designed to ensure new bearings are pressed in straight and evenly, reducing the risk of damage during installation. When paired with our bearing press(3 sizes), the system delivers controlled, consistent pressure for accurate results every time. Choose between the complete front and rear hub bearing press, the complete bottom bracket bearing press (3 sizes), or individual bottom bracket presses for specific sizes.

The press is straightforward to use — just two 13mm combination wrenches are all you need.

Available configurations include:

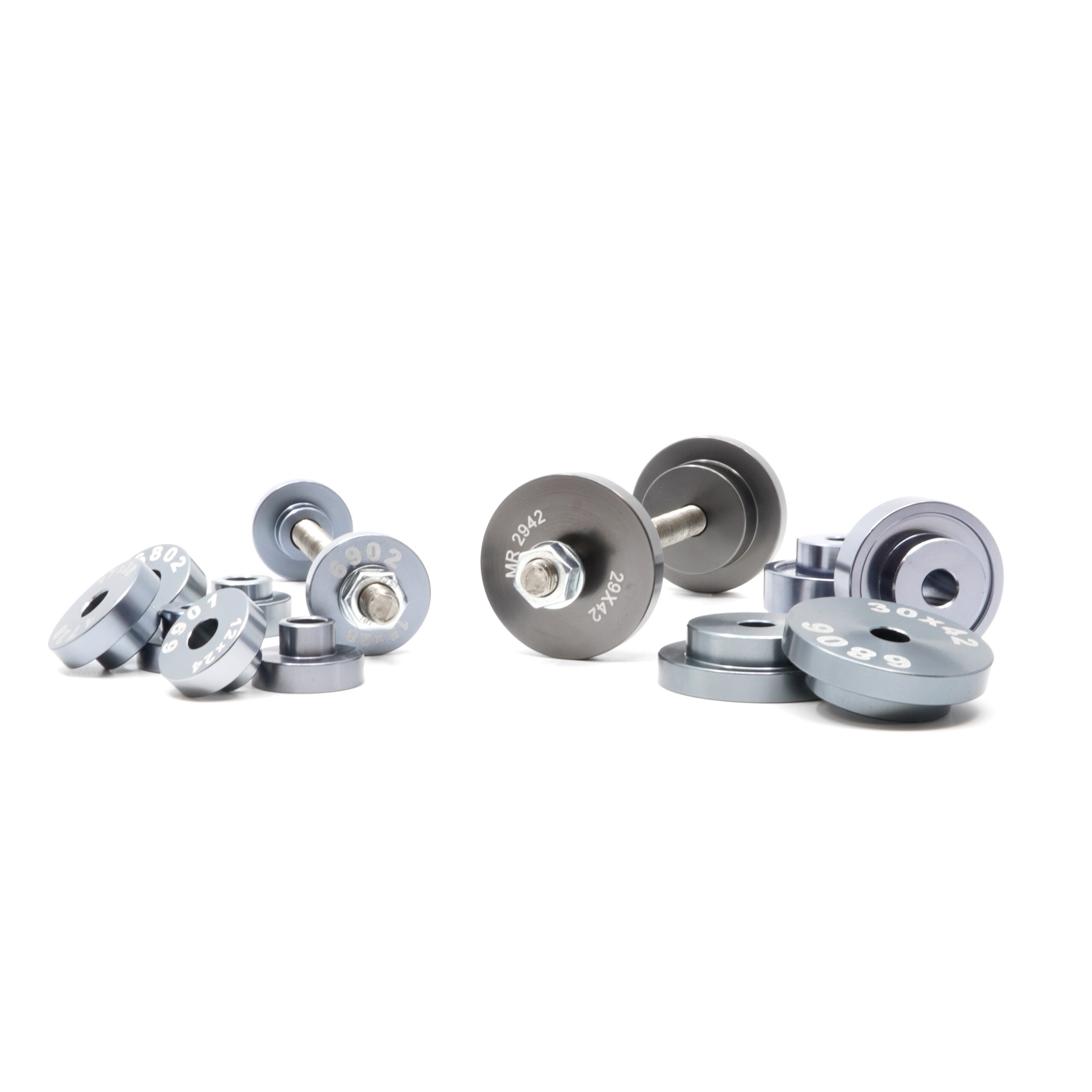

  • Complete front and rear hub bearing press

  • Complete bottom bracket bearing press (three sizes)

  • Individual bottom bracket presses for specific sizes

Designed for mechanics and riders who value proper service and long-term performance, this tool set makes bearing installation simple, repeatable, and reliable.

Built to support serviceability — not shortcuts.

Technical Documents

Looking for more detailed technical info? Visit our Technical Documents page here.

Specs

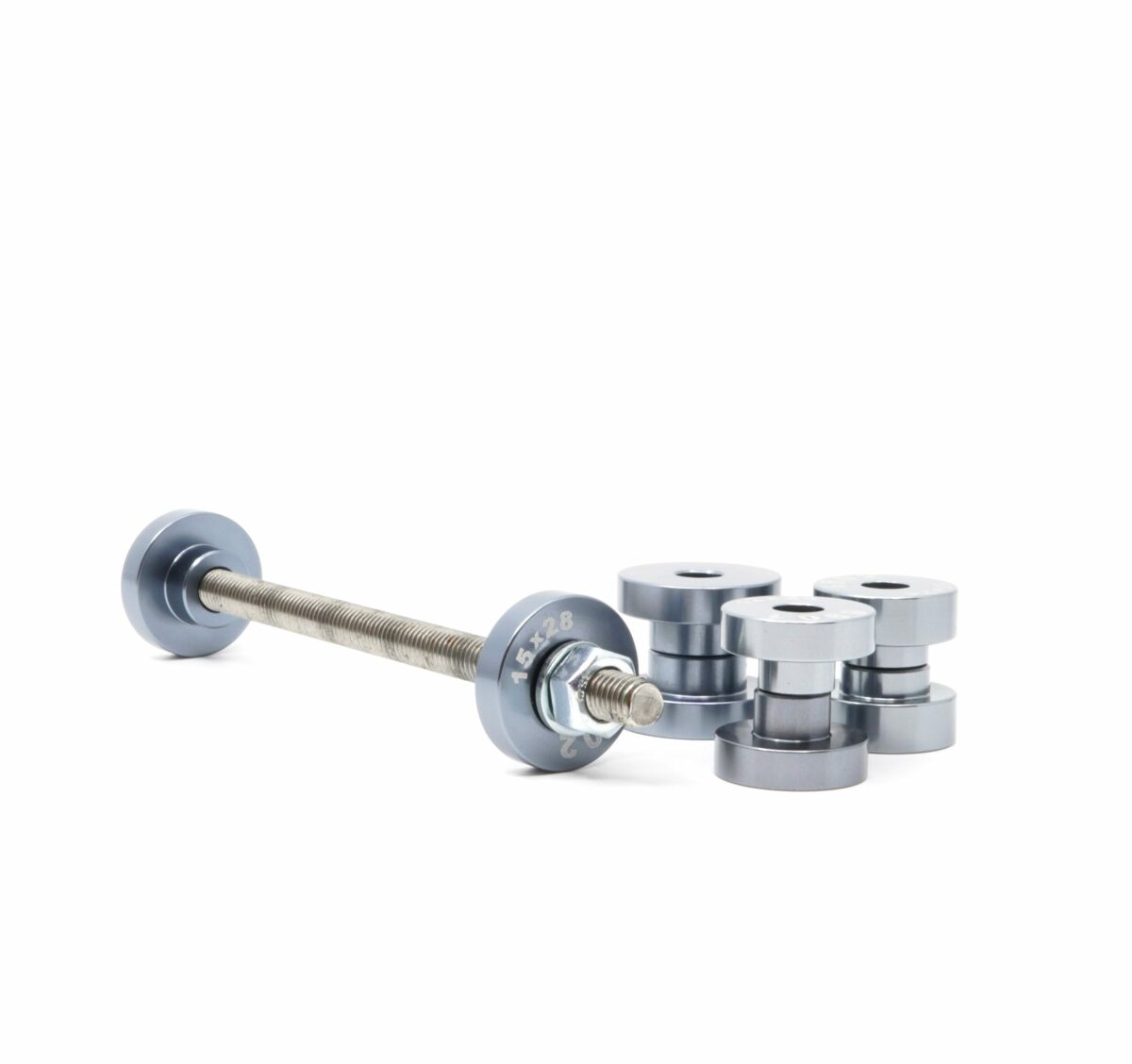

  • Front and rear hub bearing press for White Industries hubs
    • One threaded 18-8 stainless M8 x 1.25mm X 150mm rod
    • Two M8 x 1.25mm zinc plated nuts
    • Two M8 zinc plated washers
    • Two guides for 6901 12mm x 24mm bearings
    • Two guides for 6902 15mm x 28mm bearings
    • Two guides for 17287 17mm x 28mm bearings
    • Two guides for 6802 and 3802W 12mm x 24mm bearings
    • Compatible with any hubs using the same bearing sizes
  • Bottom bracket bearing press for 22mm/24mm/29mm/30mm White Industries bottom brackets
    • One threaded 18-8 stainless M8 x 1.25mm X 150mm rod
    • Two M8 x 1.25mm zinc plated nuts
    • Two M8 zinc plated washers
    • Two guides for 2437 22/24mm x 37mm bearings
    • Two guides for 71806/29 29mm x 42mm bearings
    • Two guides for 71806 30mm x 42mm bearings
    • Compatible with any bottom brackets using the same bearing sizes
    • Not compatible with White Industries square taper bottom brackets
  • Bottom bracket bearing press for 24mm White Industries bottom brackets
    • One threaded 18-8 stainless M8 x 1.25mm X 150mm rod
    • Two M8 x 1.25mm zinc plated nuts
    • Two M8 zinc plated washers
    • Two guides for 2437 22/24mm x 37mm bearings
      • 22mm side works for GXP style bottom brackets
    • Compatible with any bottom brackets using the same bearing size
  • Bottom bracket bearing press for 29mm White Industries bottom brackets
    • One threaded 18-8 stainless M8 x 1.25mm X 150mm rod
    • Two M8 x 1.25mm zinc plated nuts
    • Two M8 zinc plated washers
    • Two guides for 71806/29 29mm x 42mm bearings
    • Compatible with any bottom brackets using the same bearing size
  • Bottom bracket bearing press for 30mm White Industries bottom brackets
    • One threaded 18-8 stainless M8 x 1.25mm X 150mm rod
    • Two M8 x 1.25mm zinc plated nuts
    • Two M8 zinc plated washers
    • Two guides for 71806 30mm x 42mm bearings
    • Compatible with any bottom brackets using the same bearing size

Compatibility

  • Works with all current White Industries front and rear hubs, and most of our older hubs
  • Works with all current White Industries bottom brackets except:
    • Will not work with White Industries square taper bottom brackets
    • Will not work with White Industries T47 External Heavy Duty bottom brackets
  • As long as the bearing guide inside/outside dimension matches the specs of the bearing you have, the press will work. Bearing width does not matter.
  • Check out the compatibility chart under the “Technical Documents” tab above for more details

What's In The Box

  • One threaded 18-8 stainless M8 x 1.25mm X 150mm rod
  • Two M8 x 1.25mm zinc plated nuts
  • Two M8 zinc plated washers
  • Whichever bearing guides are listed under that specific press model

FAQ

How do I remove my bottom bracket bearings?

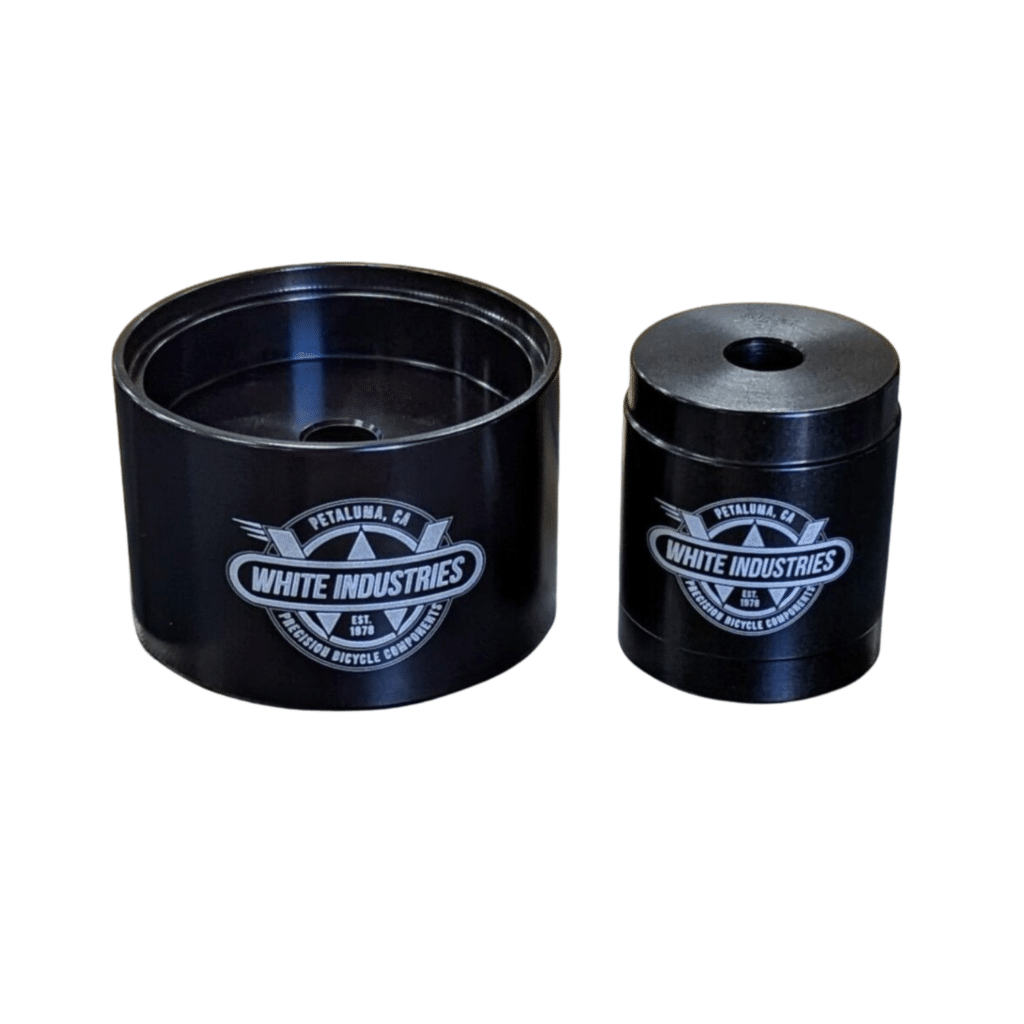

It depends on the bottom bracket type. On our 24mm BSA and T47 bottom brackets, you can easily access the back of the bearings and carefully tap them out with a tapered drift punch, working around the bearings so they come out of the bores evenly.  On our 29mm and 30mm BSA bottom brackets, you don’t have much room on the back of the bearings so we offer a bearing removal tool just for that purpose, available on the Tools page.



How do I remove my hub and freehub body bearings?

You can easily access the back of the bearings and carefully tap them out with a tapered drift punch, working around the bearings so they come out of the bores evenly.



My bearings have slightly different part numbers than the ones listed on your guides.  Will the press work on those?

Bearing guides are listed with an inner and outer dimension. As long as those two dimensions match your bearing, you’re good to go.  ABEC 5 bearings have an extra digit which can be confusing.  Ex: the 61902 bearing we use in our rear hubs is an ABEC 5 version of a 6902 bearing.  Same exact dimensions though.  So the “6902” bearing guide will work on both bearings.  As we said, as long as the inner and outer dimensions of the guide match your bearing, you’re good to go.  The width of the bearing doesn’t matter.



Will your bearing press work with other hub and bottom bracket brands?  What about suspension pivots etc?

Bearing guides are listed with an inner and outer dimension. As long as those two dimensions match your bearing, you’re good to go.  It doesn’t matter if the bearing is going in a hub, suspension pivot, or whatever.  The width of the bearing doesn’t matter.

Additional information

Weight N/A
Dimensions N/A
Kit Type

, , , ,
