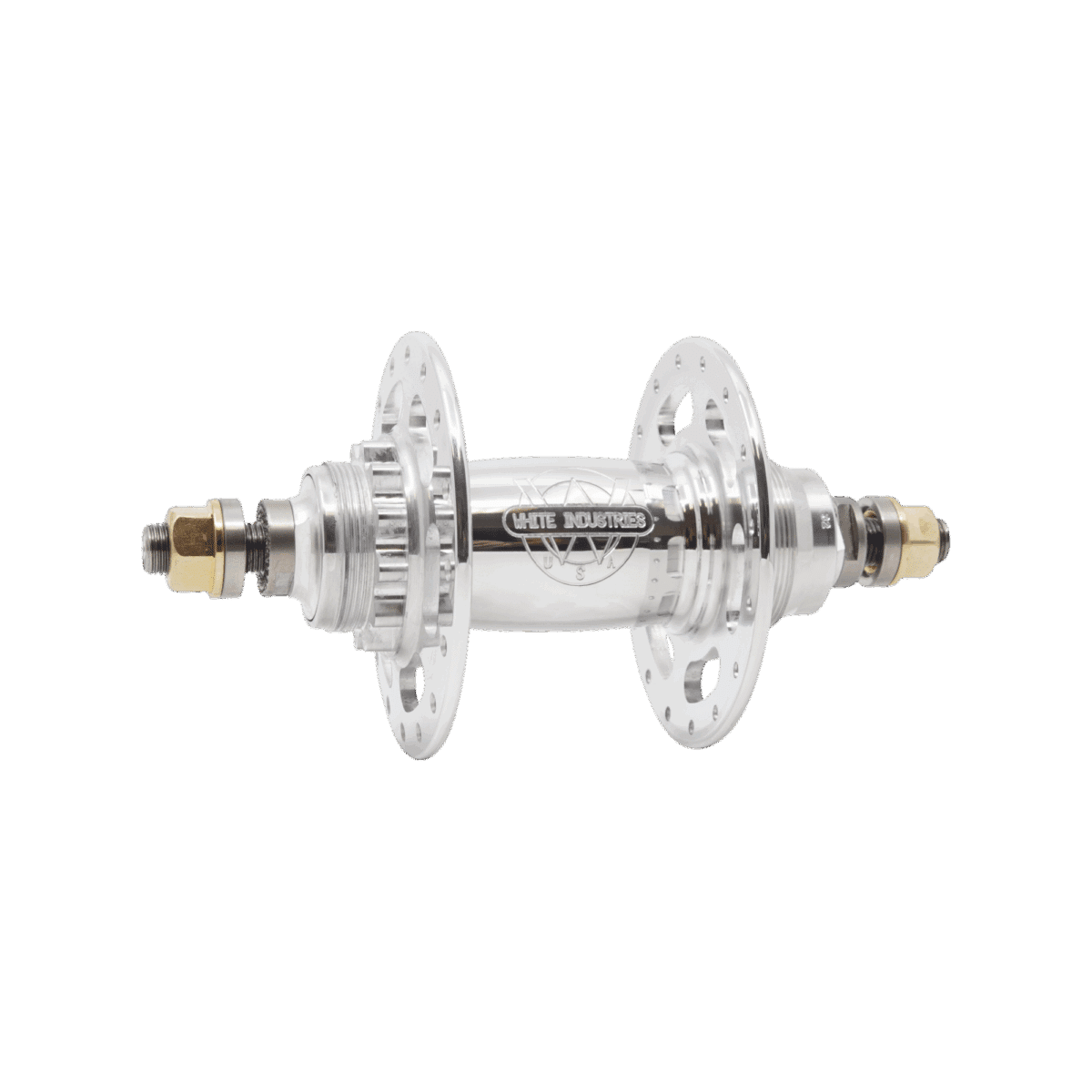

silver wheel hub

Track Rear Hub

$308.00

Our Track hubs are designed in the classic style of our favorite Italian track hubs of the past.  High flange, high polish, windows, and bronze axle nuts; all the features of a modern classic.  Even though they have that vintage vibe, we’ve added some features to make them perform as good as they look.

SKU: trkrr
Category: ,

Description

Product Details

Our Track hubs are designed in the classic style of our favorite Italian track hubs of the past.  High flange, high polish, windows, and bronze axle nuts; all the features of a modern classic.  Even though they have that vintage vibe, we’ve added some features to make them perform as good as they look.

The axle is made from 303 stainless steel and the World’s Most Expensive Axle Nuts™ are made from nickel aluminum bronze, incorporating an integrated stainless washer that makes mounting your wheel a joyous experience.We combine Enduro bearings with a traditional-style “cup and cone” adjustment system to get that perfect bearing preload and keep it there.  The Fixed/Free (flip-flop) version accepts a standard threaded freewheel on one side and a proprietary White Industries splined fixed gear cogs on the other, while the Fixed only version only accepts only our proprietary splined fixed gear cogs.



Technical Documents

Looking for more detailed technical info? Visit our Technical Documents page here.

Specs

  • Hub shell is made from 6061-T6 aluminum
  • Colors: black and polished silver (not anodized)
  • Finish: polished, then logos are machine-engraved, then anodized
  • Enduro sealed radial carbon steel bearings standard
  • Enduro XD-15 Ceramic bearing upgrade available
  • 303 stainless threaded axle
    • M10 x 1mm thread, 120mm spacing
  • Nickel aluminum bronze axle nuts with integrated stainless washer
  • Adjustable bearing preload
  • 1.375” x 24TPI freewheel thread
  • Proprietary splined fixed gear interface for White Industries fixed gear cogs
  • Easily serviceable and rebuildable
  • Weight: 293g
  • Spoke drillings: 24, 28, 32, 36

Chainlines

Axle spacing:  120mm

  • Freewheel chainline 41.5mm
  • Fixed gear chainline 41.5mm

Bearings

  • 2x Enduro ABEC 5 61902-LLU/LLB

Wheelbuilding specs

Spoke Hole Diameter:  2.6mm

Hub Type      Left Flange Diameter      Right Flange Diameter      Center to Left Flange      Center to Right Flange
Fixed 73mm 73mm 35.5mm 30mm
Hub Type       Left Flange Diameter      Right Flange Diameter      Center to Left Flange      Center to Right Flange
Fixed/Free 73mm 73mm 26mm 30.5mm





Compatibility

  • “Fixed/Free (flip-flop) version:
    • Accepts standard 1.375” x 24TPI threaded freewheels
    • Accepts only White Industries proprietary splined fixed gear cogs
      • Not compatible with other brands of cogs
  • “Fixed” version:
    • Only accept only White Industries proprietary splined fixed gear cogs
      • Not compatible with other brands of cogs
  • Cog lockrings are 1.29” x 24tpi left hand thread
  • Axle: M10 x 1mm thread, 120mm spacing
  • Distance from freewheel seat to axle end: 29mm
  • Radial spoke lacing not recommended

What's In The Box

  • One Track hub with axle nuts
  • Includes fixed gear lockring (both hub versions)
  • Does not include fixed cog or freewheel

FAQ

Can I get the Track hub in a “freewheel only” version, without the fixed hear option on the other side?

Unfortunately, no.



Can I change the spacing on the Track hub to 130mm or 135mm, or any other spacing?

  • No, the hub shell is designed specifically around 120mm spacing and chainlines
  • The axle is not long enough to accommodate wider spacing



Can I convert the Track hub to quick release or Thru axle?

No, we do not offer those options.



Can I get these in a custom anodized color or hole drilling?

Unfortunately we do not offer those options.
