Information

Product Details

Stylish, durable, and easily serviceable.  Those were the goals when designing our headsets.  We machine engrave our logos for a classy look, use durable and easily replaceable Enduro stainless steel angular contact bearings, and use a “split” crown race design that you can install and remove by hand.

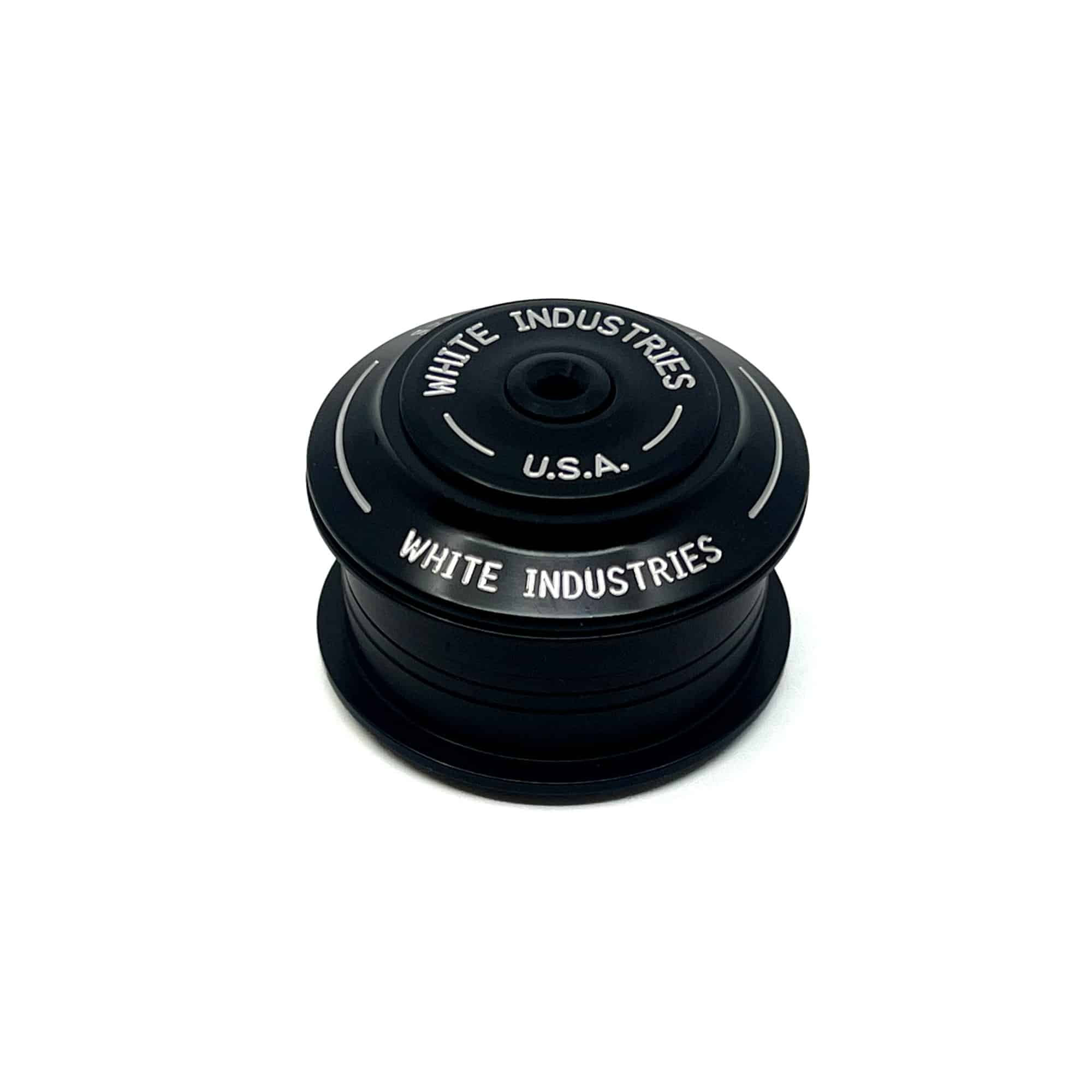

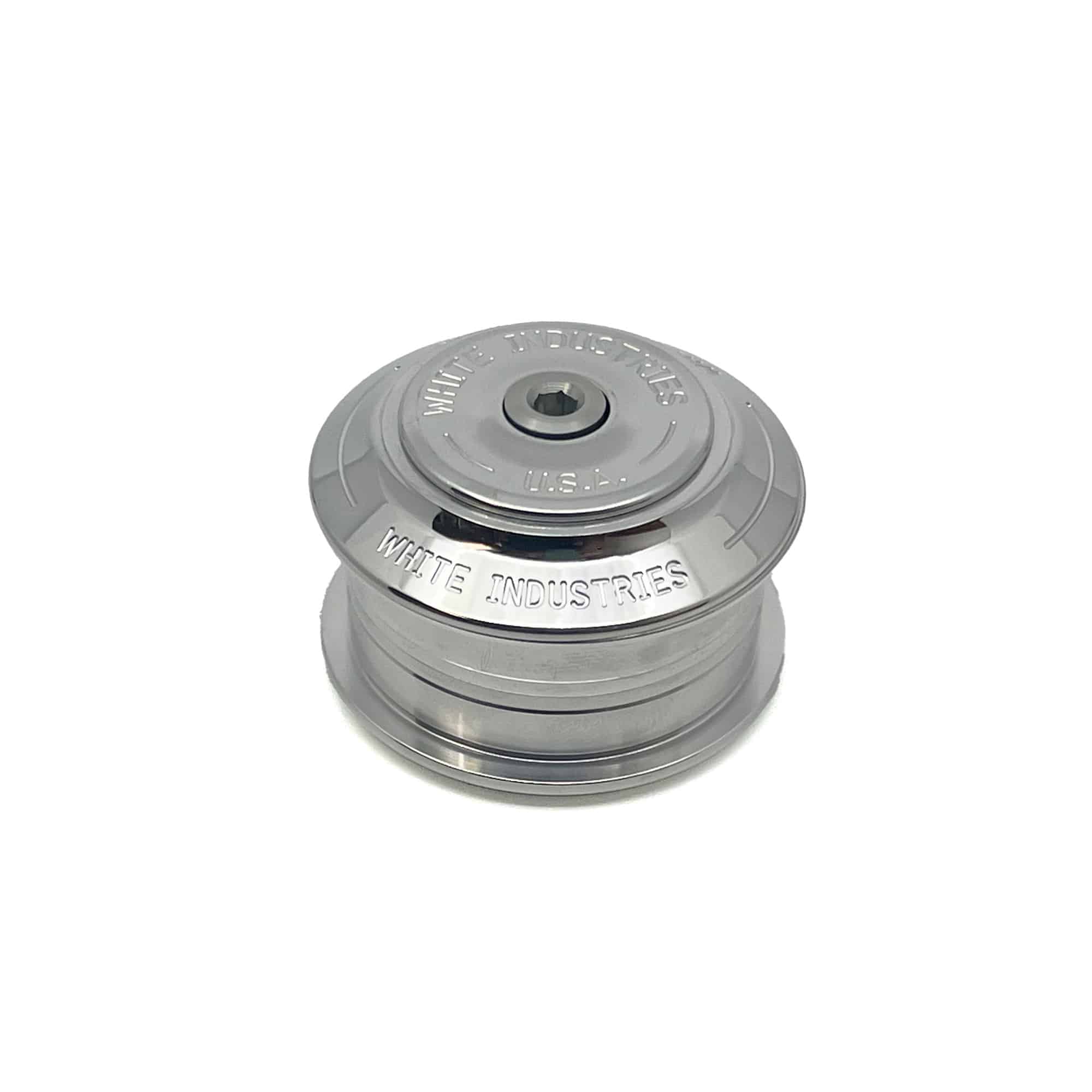

The ZS44│ZS44 headset is designed to fit frames with 44mm head tubes and straight 1-⅛” (28.6mm) fork steerers.  But nowadays with all the different headset standards available we needed to get specific so check the SHIS specs below.  SHIS?  Yep, that’s the “Standardized Headset Identification System” used to verify compatibility.

Specs

• 6061-T6 aluminum
• Machine engraved logos
• Easily replaceable Enduro stainless steel angular contact bearings
• “Split” crown race for tool-free installation and removal
• Stack height
  • Upper: 8mm
  • Lower: 4mm
• Weight

Compatibility

• A perfect match to our really sweet matching headset spacers, available separately
• The ZS44│ZS44 headset is designed to fit frames with straight 44mm head tubes and straight 1-⅛” (28.6mm) fork steerers
• The “ZS” stands for “Zero Stack” as the section of the cup that houses the top bearing sits inside of the frame’s head tube.  The “44” stands for the 44mm “skirt” that presses into the head tube.
• SHIS specification
  • Upper: ZS44/28.6
  • Lower: ZS44/30
    • Can accommodate one style of fork steerer:
      • “Straight 1-⅛” with a 30mm crown race seat
• Not compatible with carbon forks that have integrated crown race seats
• SHIS definitions on the Park Tools website: here
• Frame/Fork specs:

• Compatible with Ritchey carbon 1-1/8″ steerer forks with integrated crown races (not tapered steerer forks)
  • Must call to purchase additional bearing part #ACB45451125TSS which replaces the stock bearing and crown race
    • WCS road fork SKU 34356117005
    • WCS road fork SKU 34356117006
    • WCS Adventure Gravel fork SKU 34556117012
    • WCS Gravel Cross fork SKU 34556117010
• Not compatible with other carbon forks with integrated crown races

Bearings

What’s in the box

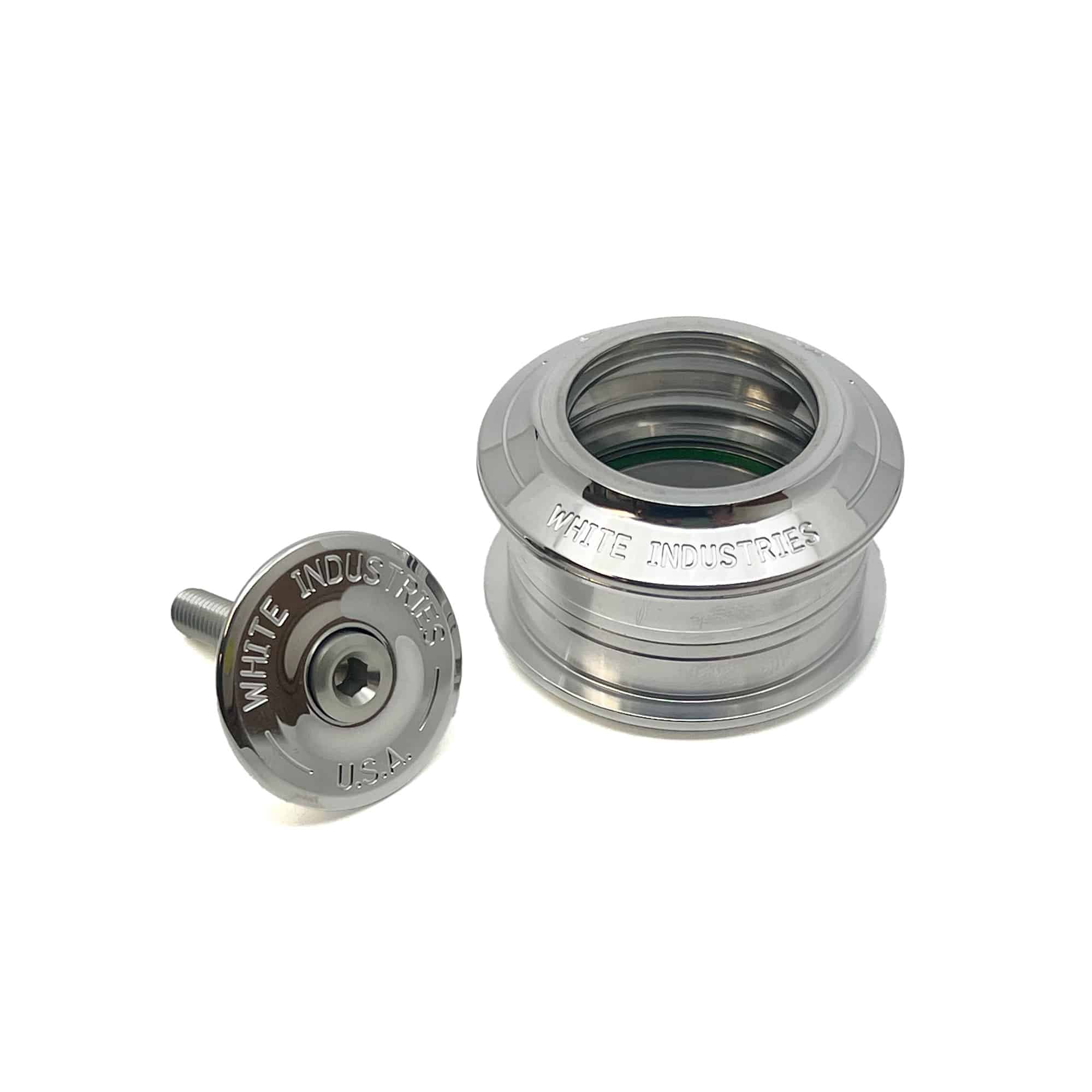

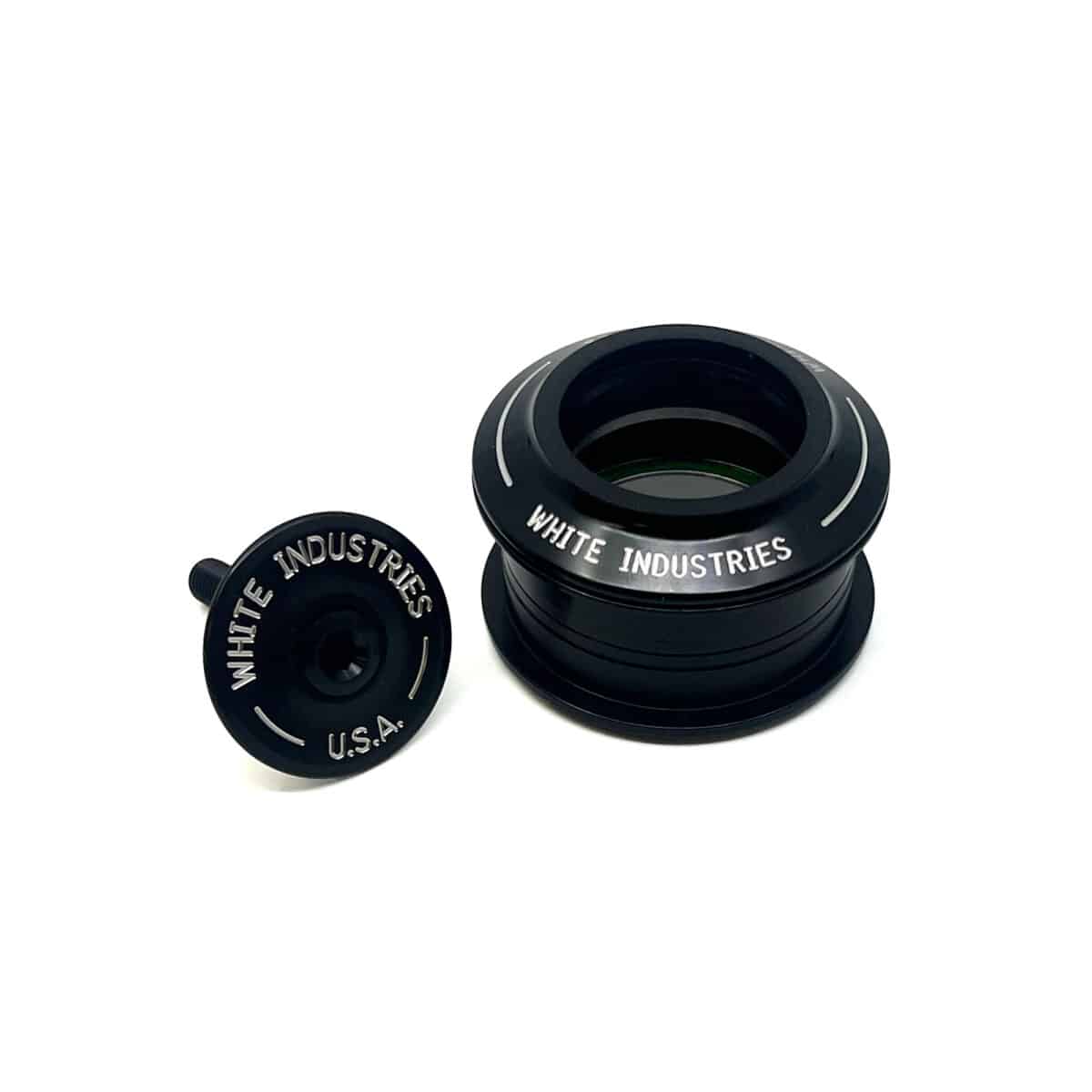

• One headset which includes:
  • Top cap bolt
  • Top cap
  • Bearing cover
  • Upper bearing compression ring
  • Upper bearing
  • Upper cup
  • Lower cup
  • Lower bearing
  • Crown race
• Headsets no longer include Star Nuts due to the Earth’s star nut overpopulation crisis. If you need one, they are available separately here.

FAQ’s

• Will this headset fit my bike?
  • You will need to do some homework and get the SHIS specs of your frame and fork which those manufacturers will have.  See those definitions here.  Also see the “Compatibility” section on this page.  Simply telling us what model bike you have may not be enough info to go on.  Help us help you and get the specs!
