Astral Veil 4 Carbon Disc/Rim Brake 700c Road

$599.00

We have been working with Astral Cycling in Eugene, Oregon for many years, providing White Industries hubs for their Astral-branded wheels.  In 2022 we purchased Astral and made them part of the White Industries family.  Now you can purchase the complete Astral line of rims on the White Industries website.  Hubs and rims in one […]

SKU: RIMV5C
Category:

Description

We have been working with Astral Cycling in Eugene, Oregon for many years, providing White Industries hubs for their Astral-branded wheels.  In 2022 we purchased Astral and made them part of the White Industries family.  Now you can purchase the complete Astral line of rims on the White Industries website.  Hubs and rims in one easy location!

Light, fast and strong – in no particular order

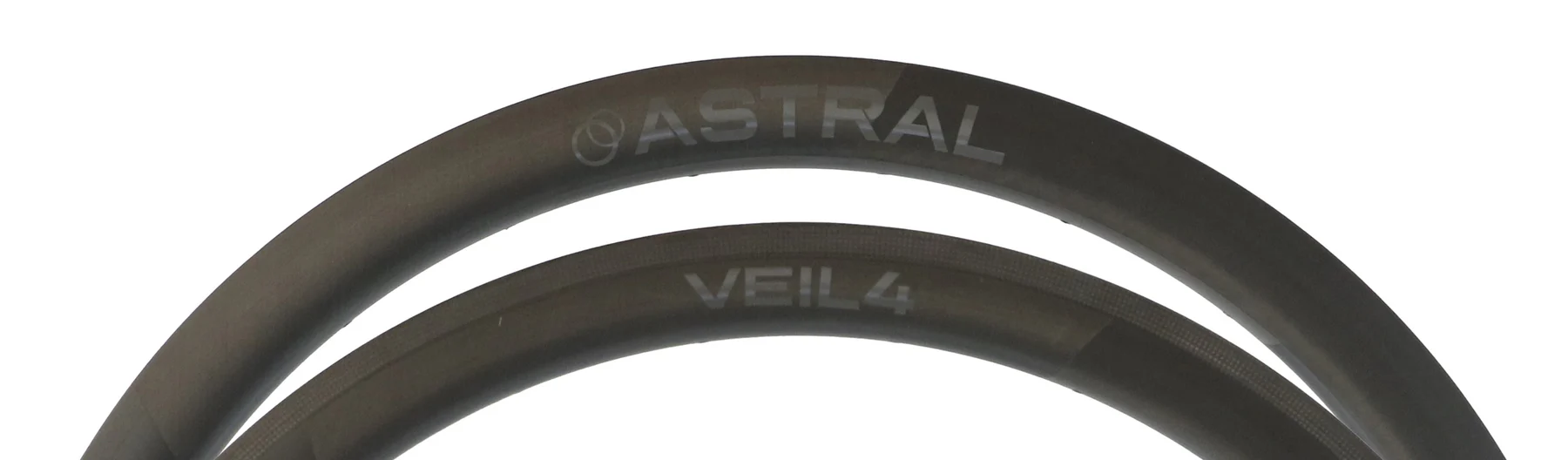

The Veil4 is a 42mm deep carbon rim that strikes a low weight while maintaining an aero advantage. It’s our favorite all-rounder, ready for any terrain. This full-carbon tubeless, ready clincher has an internal rim width of 20mm, making it well-suited for a variety of tire-widths.

Note: 20 hole rim not available in disc brake

Rims will ship directly to you from Astral Cycling in Eugene, Oregon, separately from the rest of your order.

Features

  • Available in rim or disc brake and drilled for external nipples
  • All Astral rims are Tubeless Easy for pain-free tire installation that you can set up with a pump



Technical Documents

Looking for more detailed technical info? Visit our Technical Documents page here.

Specs

  • 700c Carbon Clincher
  • Weight: Rim brake – 455g
  • Weight: Disc brake – 445g
  • Depth: 42mm
  • Width: Int: 20mm / Ext: 28.5mm
  • ERD: 557.5mm
  • Spoke Bed Diameter: 555mm
  • External nipple compatible
  • Max Tension: 130kgf
  • Hole count options: Disc brake: 24; Rim brake: 20 or 24
  • Tire size recommendation: 25mm to 32mm
  • Max tire pressure for tire widths:
    • 25mm/120psi
    • 28mm/100psi
    • 30mm-32mm/80psi

Additional information

Weight N/A
Dimensions N/A
Rim Size

Brake Type

,

Rim Color

Spoke Count

,
