Square Taper ENO 1x TSR Chainrings

$90.00$122.00

SKU: sqrtpr1xtrschnrngs
Clear Options

Information


Product details

Square Taper ENO 1x TSR (Tall-Short-Ring) chainrings are designed to work with all modern 10/11/12 speed 1X drivetrain systems.  The tall/short tooth profile helps prevent the chain from falling off the ring when riding through rough terrain and is a must on 1x drivetrains, but is also compatible with singlespeed drivetrains.  Made in our shop from 7075-T6 aluminum (48 tooth ring is 6061-T6).

Specs

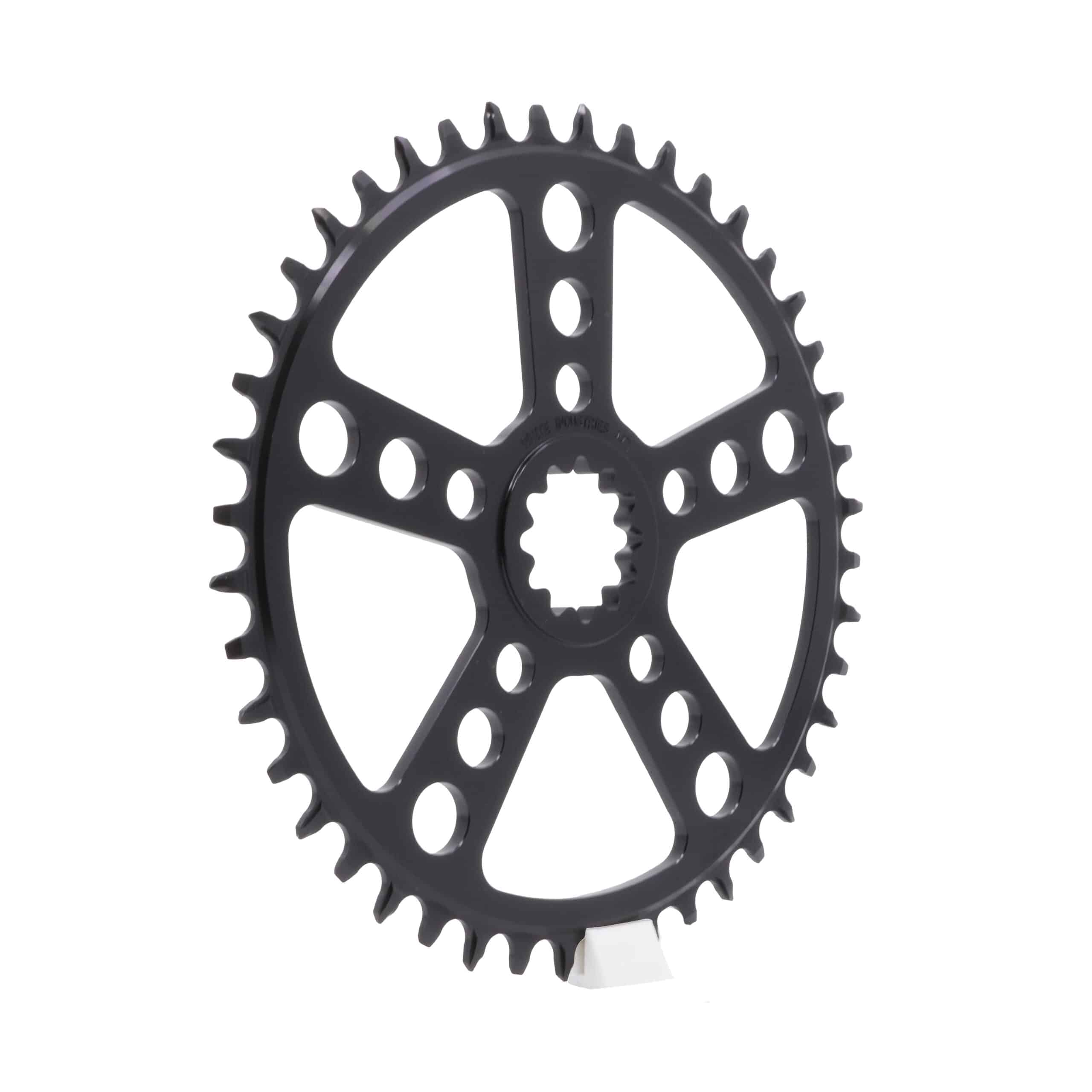

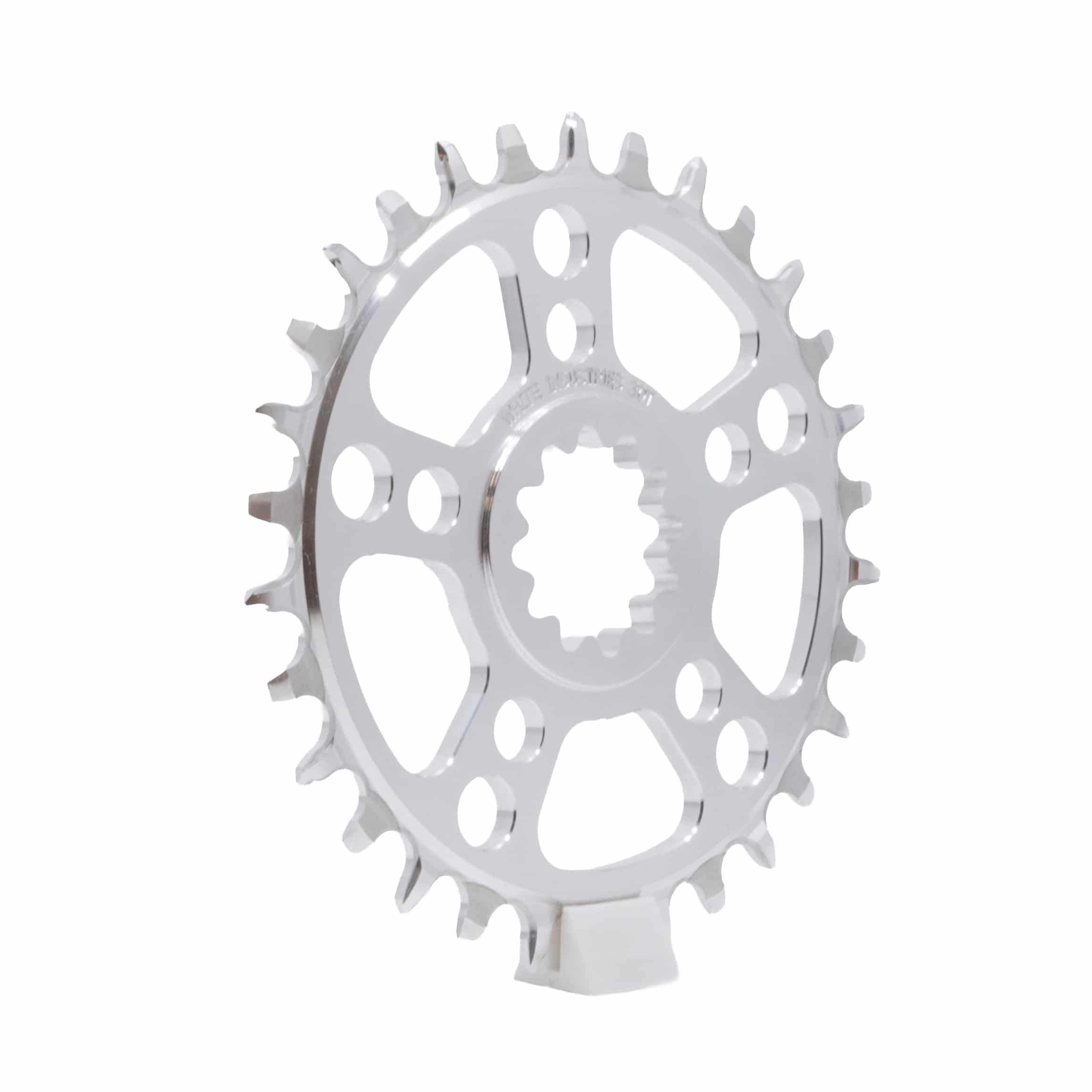

  • Available in black anodized and raw (unpolished) silver
  • 28 teeth to 48 teeth in 2 tooth increments
  • 7075-T6 aluminum (48 tooth ring is 6061-T6)
  • Chainlines:

Square taper spindle length

 (ENO/square taper road cranks)

Chainline

108mm

45mm

113mm

47.5mm

121mm

51.5mm

Compatibility

  • ENO 1x series TSR chainrings fit White Industries square taper spindle cranks only
    • ENO square taper mountain cranks
    • Square taper road cranks
    • Not compatible with MR30 series cranks
  • Compatible with SRAM 10/11/12 speed and 12 speed flat-top chains
  • Compatible with SRAM 12 speed Eagle Transmission flat-top chains
  • Compatible with Shimano 9/10/11/12 speed chains (and now works with the Shimano’s 12 speed Quick Link)
  • Compatible with single speed 3/32 chains, but 8 speed 3/32″ chains are quieter
  • Not compatible with “half” links
  • Not compatible with 1/8″ chains

What’s in the box

  • One Square Taper ENO 1x TSR chainring
  • Chainring mounting lockring not included
    • Lockrings come with the crank arms



Additional information

Weight N/A
Dimensions N/A
Color

,

Teeth

, , , , , , , , , ,

Chainring Offset
