IS42/IS42

Price range: $123.00 through $132.00

SKU: is42is42
Clear Options

Information


Product Details

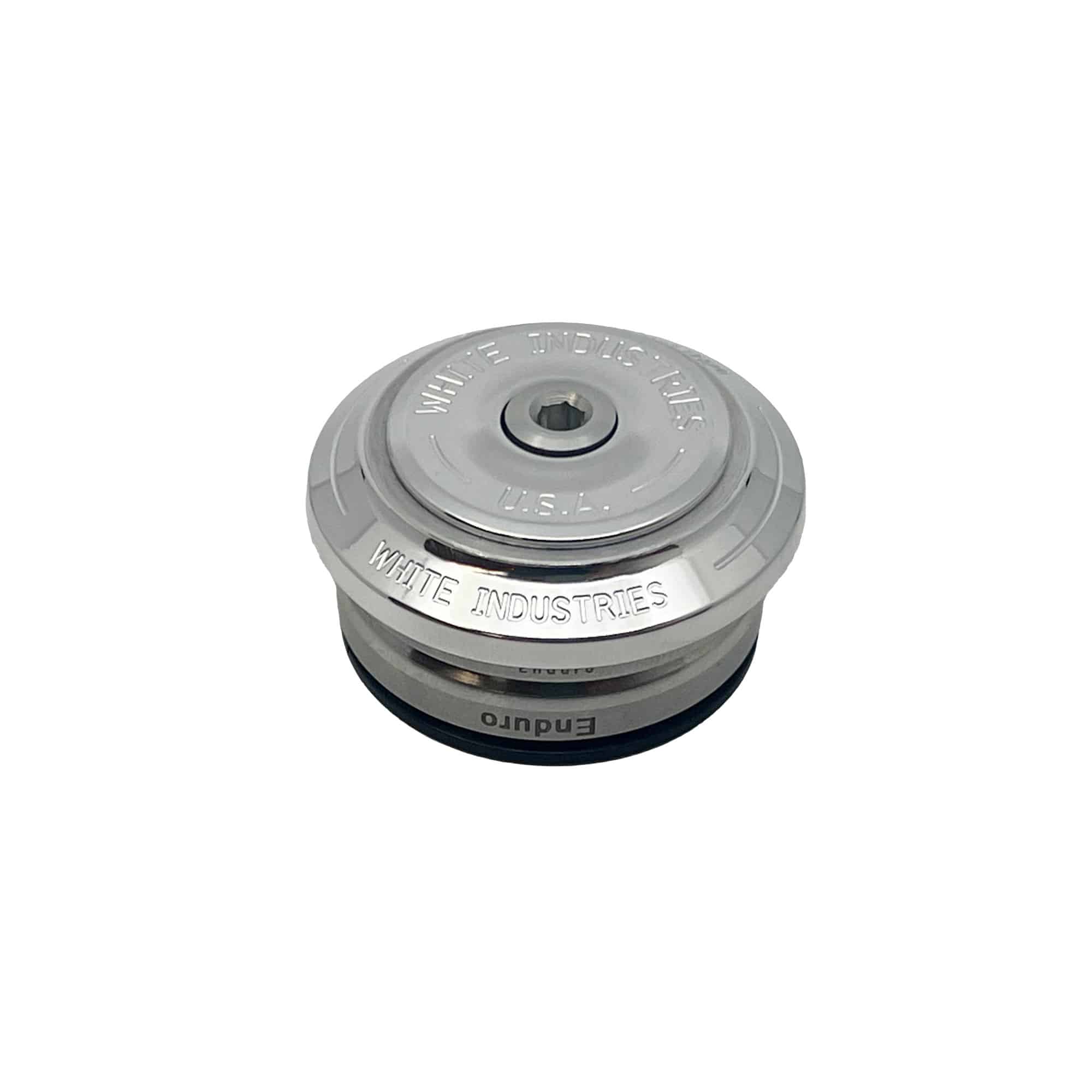

Stylish, durable, and easily serviceable.  Those were the goals when designing our headsets.  We machine engrave our logos for a classy look, use durable and easily replaceable Enduro stainless steel angular contact bearings, and use a “split” crown race design that you can install and remove by hand.

The IS42│IS42 headset is designed to fit frames with integrated 42mm head tubes and works with straight 1-⅛” (28.6mm) fork steerers.  But nowadays with all the different headset standards available we needed to get specific so check the SHIS specs below.  SHIS?  Yep, that’s the “Standardized Headset Identification System” used to verify compatibility.

Specs

  • 6061-T6 aluminum
  • Machine engraved logos
  • Easily replaceable Enduro stainless steel angular contact bearings
  • “Split” crown race for tool-free installation and removal
  • Stack height
    • Upper: 8mm
    • Lower: 1mm
  • Weight

Compatibility

  • A perfect match to our really sweet matching headset spacers, available separately
  • The IS42│IS42 headset is designed to fit frames with integrated 42mm head tubes and works with straight 1-⅛” (28.6mm) fork steerers
  • The “IS” stands for “Integrated System” meaning the bearings drop directly into the head tube, without the traditional style “headset cup” that would press into the frame, and the “42” refers to the outer diameter of the bearing, at 42mm.
  • SHIS specification
    • Upper: IS42/28.6
    • Lower: IS42/30
  • Not compatible with carbon forks that have integrated crown race seats
  • SHIS definitions on the Park Tools website: here
  • Frame/Fork specs:

Frame upper head tube inside diameter

41.95mm to 42.05mm with a 45 degree contact angle

Frame lower head tube inside diameter

41.95mm to 42.05mm with a 45 degree contact angle

Fork steerer diameter top section

28.45mm to 28.6mm

Crown race seat diameter for

“straight 1-⅛”

30.015mm to 30.075mm

Bearings

Headset Model

Upper Bearing (inner/outer angle) Lower Bearing

(inner/outer angle)

Lower Fork Race Compatibility

IS42│IS42

ACB36451125SS 36/45 ACB36451125SS 36/45

1-⅛” (30mm)

What’s in the box

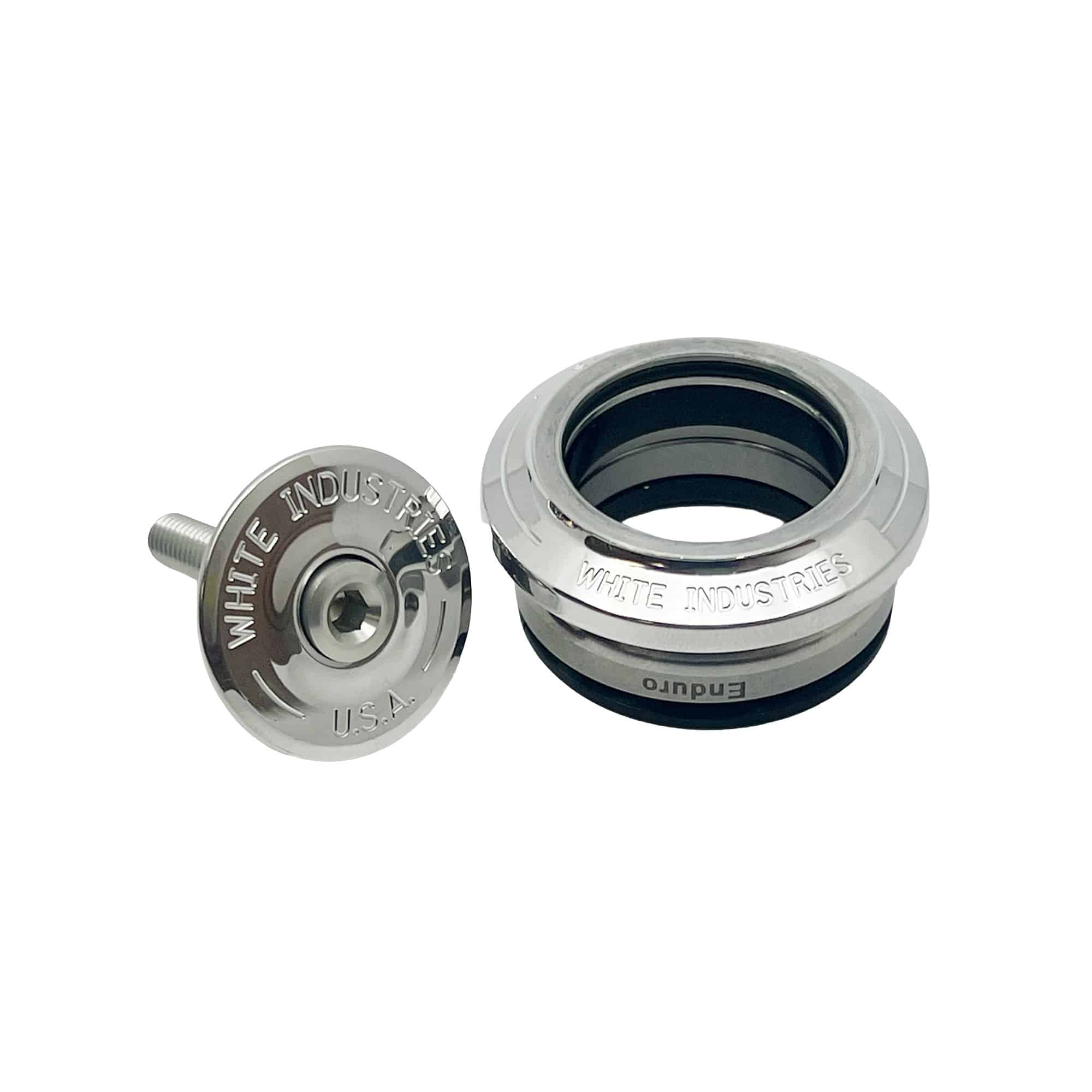

  • One headset which includes:
    • Top cap bolt
    • Top cap
    • Bearing cover
    • Upper bearing compression ring
    • Upper bearing
    • Upper cup
    • Lower cup
    • Lower bearing
    • Crown race
  • Headsets no longer include Star Nuts due to the Earth’s star nut overpopulation crisis. If you need one, they are available separately here.

FAQ’s

  • Will this headset fit my bike?
    • You will need to do some homework and get the SHIS specs of your frame and fork which those manufacturers will have.  See those definitions here.  Also see the “Compatibility” section on this page.  Simply telling us what model bike you have may not be enough info to go on.  Help us help you and get the specs!
