Description
Product details
Our hubs come standard with Enduro high-carbon chromium steel bearings which have the best price/performance ratio, but if you are seeking the absolute pinnacle of bearing performance, we also offer Enduro XD15’s which features ceramic balls rotating in aerospace developed, nitrogen-infused, super-stainless-steel bearing races and come with a limited lifetime warranty.
Consult the Specs tab for specific hub model bearing info, which is also available on the respective hub model pages.
Technical Documents
Looking for more detailed technical info? Visit our Technical Documents page here.
Specs
- Bearings sold individually
- Rear cassette hubs have 4 bearings total
- 2 in the hub shell and 2 in the freehub body
- Rear ENO and Track hubs have two bearings
- Front hubs have two bearings
- The “1” (after the 6) in the 61901 and 61902 bearings denotes an ABEC-5 bearing
- The 61901 is the same size as a 6901 bearing
- The 61902 is the same size as a 6902 bearing
- Grey seals always face out
- Blue and green seals have no direction
- Bearings should be installed using a bearing press, available here
- For hub models not listed refer to the “Hub Archive and Specs” document under the Technical Documents tab
- Refer to the “Freehub Body Identification Guide” under the Technical Documents tab if you’re not sure which freehub body you have
Steel bearing descriptions and specs
← Table Scrolls on Smaller Screens →
| Enduro Bearing # |
Inside/Outside/Width (mm) |
Seal Color/Direction |
ABEC Rating |
Material |
| 3802W LLB |
15x24x10 |
Blue both sides, no direction |
3, C3 clearance |
Chromium Steel |
| 61901 LLU/LLB |
12x24x6 |
Grey faces out |
5, C3 clearance |
Chromium Steel |
| 61902 LLU/LLB |
15x28x7 |
Grey faces out |
5, C3 clearance |
Chromium Steel |
| 17287 LLU/LLB |
17x28x7 |
Grey faces out |
5, C3 clearance |
Chromium Steel |

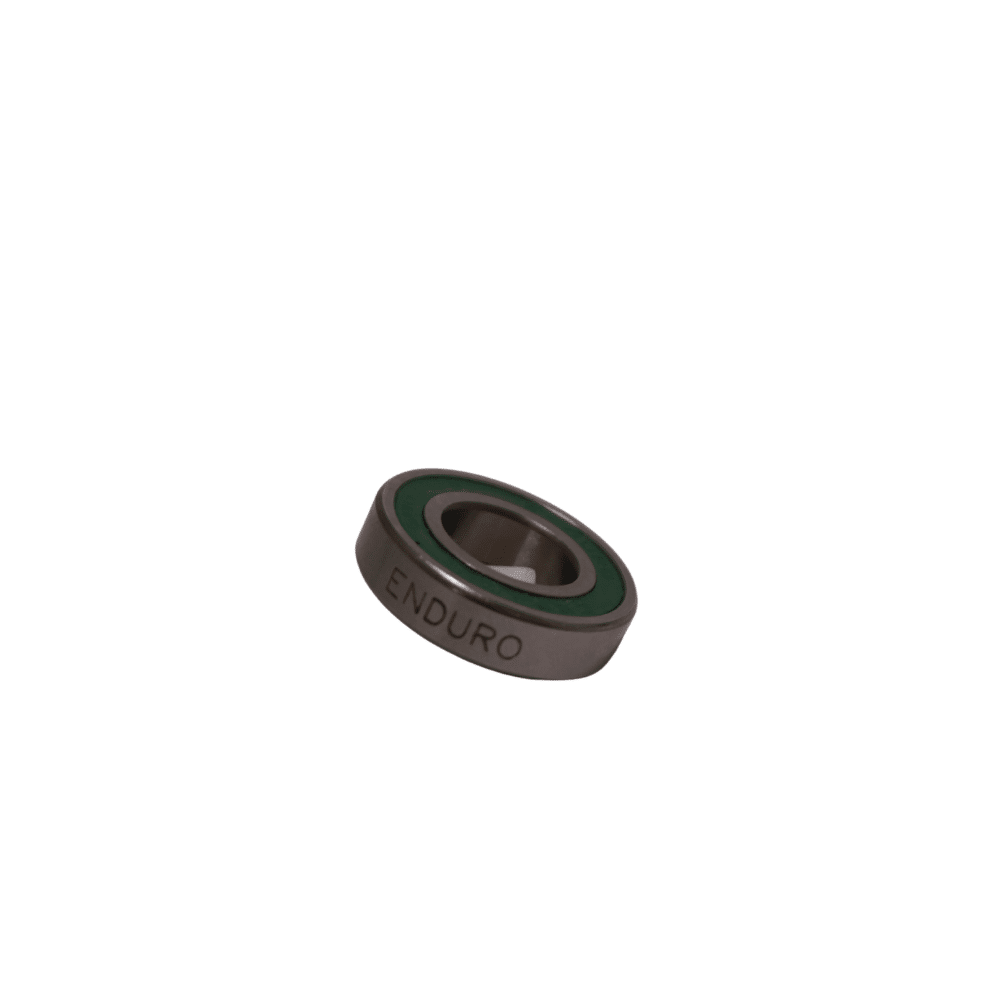

XD-15 ceramic bearing descriptions and specs
← Table Scrolls on Smaller Screens →
| Enduro Bearing # |
Inside/Outside/Width (mm) |
Seal Color/Direction |
ABEC Rating |
Material |
| CXD3802W |
15x24x10 |
Green both sides, no direction |
5 |
Ceramic balls/martensitic stainless races |
| CXD6901 |
12x24x6 |
Green both sides, no direction |
5 |
Ceramic balls/martensitic stainless races |
| CXD6902 |
15x28x7 |
Green both sides, no direction |
5 |
Ceramic balls/martensitic stainless races |
| CXDMR17287 |
17x28x7 |
Green both sides, no direction |
5 |
Ceramic balls/martensitic stainless races |
Compatibility
Hub Shell Bearings (current hub models)
← Table Scrolls on Smaller Screens →
|
Current Hub Models
|
Front Bearings x2
(steel or XD-15 ceramic)
|
Rear Hub Shell Bearings x2 (steel or XD-15 ceramic)
|
|
T11
|
61901 LLU/LLB or CXD6901 |
61902 LLU/LLB or CXD6902
|
|
Mi5
|
17287 LLU/LLB or CXDMR17287 |
61902 LLU/LLB or CXD6902
|
|
All CLD Models
|
17287 LLU/LLB or CXDMR17287 |
61902 LLU/LLB or CXD6902
|
|
All XMR Models
|
17287 LLU/LLB or CXDMR17287 |
61902 LLU/LLB or CXD6902
|
|
C157
|
N/A |
61902 LLU/LLB or CXD6902
|
|
ENO & ENO Eccentric
|
N/A |
61902 LLU/LLB or CXD6902
|
|
Track
|
61902 LLU/LLB or CXD6902 |
61902 LLU/LLB or CXD6902
|

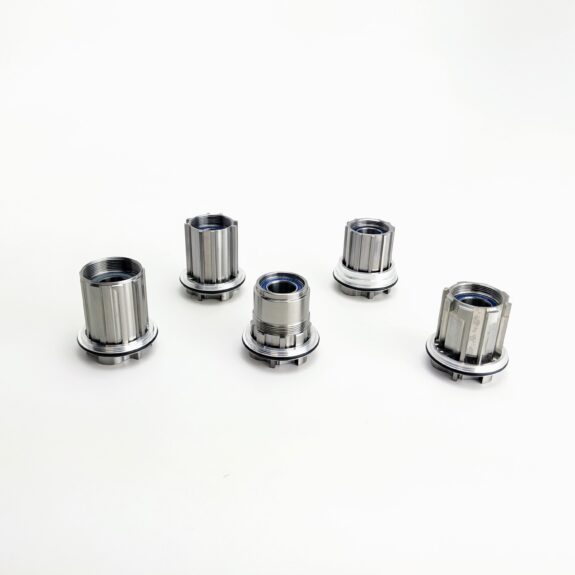

Freehub Body Bearings (current freehub bodies)
← Table Scrolls on Smaller Screens →
|
Current Freehub Bodies
|
Inner Bearing
(steel or XD-15 ceramic)
|
Outer Bearing
(steel or XD-15 ceramic)
|
|
Shimano HG 11
|
3802W LLB* or CXD3802W |
61902 LLU/LLB or CXD6902
|
|
Shimano Micro Spline
|
3802W LLB* or CXD3802W |
3802W LLB* or CXD3802W
|
|
SRAM XDR
|
3802W LLB* or CXD3802W |
3802W LLB* or CXD3802W
|
|
Campy 11
|
3802W LLB* or CXD3802W |
3802W LLB* or CXD3802W
|
|
Campy N3W 13
|
3802W LLB* or CXD3802W |
3802W LLB* or CXD3802W
|
*QBP sells the 3802W under part# BB5001. Plan B tip: two 6802 bearings can be stacked together in place of one 3802W bearing if you don’t have time to source one!
Hub Shell Bearings (older hub models)
|
Older Hub Models
(if you don’t see your hub model, refer to the “Hub Archive and Specs” document below for bearing specs)
|
Front Bearings x2
(steel or XD-15 ceramic)
|
Rear Hub Shell Bearings x2 (steel or XD-15 ceramic)
|
|
Mi5 (older QR axle)
|
61902 LLU/LLB |
61902 LLU/LLB or CXD6902
|
|
Mi5 (upgraded to newer QR/15mm Thru or 12mm Thru axles)
|
17287 LLU/LLB or CXDMR17287 |
61902 LLU/LLB or CXD6902
|
|
Mi6 (older QR axle)
|
61902 LLU/LLB |
61902 LLU/LLB or CXD6902
|
|
Mi6 (upgraded to newer QR/15mm Thru or 12mm Thru axles)
|
17287 LLU/LLB or CXDMR17287 |
61902 LLU/LLB or CXD6902
|
|
H1
|
61801 |
61902 LLU/LLB or CXD6902
|
|
H2
|
61901 LLU/LLB or CXD6901 |
61902 LLU/LLB or CXD6902
|
|
H3
|
N/A |
61902 LLU/LLB or CXD6902
|
Freehub Body Bearings (older freehub bodies)
|
Older Freehub Bodies
|
Inner Bearing
(steel or XD-15 ceramic)
|
Outer Bearing
(steel or XD-15 ceramic)
|
|
Shimano HG 10
|
3802W LLB* or CXD3802W |
61902 LLU/LLB or CXD6902
|
|
SRAM XD
|
3802W LLB* or CXD3802W |
3802W LLB* or CXD3802W
|
|
Campy 10
|
3802W LLB* or CXD3802W |
3802W LLB* or CXD3802W
|
*QBP sells the 3802W under part# BB5001. Plan B tip: two 6802 bearings can be stacked together in place of one 3802W bearing if you don’t have time to source one!
