EC34/EC37
$160.00 – $168.00Price range: $160.00 through $168.00
Stylish, durable, and easily serviceable. Those were the goals when designing our headsets. We machine engrave our logos for a classy look, use durable and easily replaceable Enduro stainless steel angular contact bearings, and use a “split” crown race design that you can install and remove by hand.
Product Details
Stylish, durable, and easily serviceable. Those were the goals when designing our headsets. We machine engrave our logos for a classy look, use durable and easily replaceable Enduro stainless steel angular contact bearings, and use a "split" crown race design that you can install and remove by hand.</P

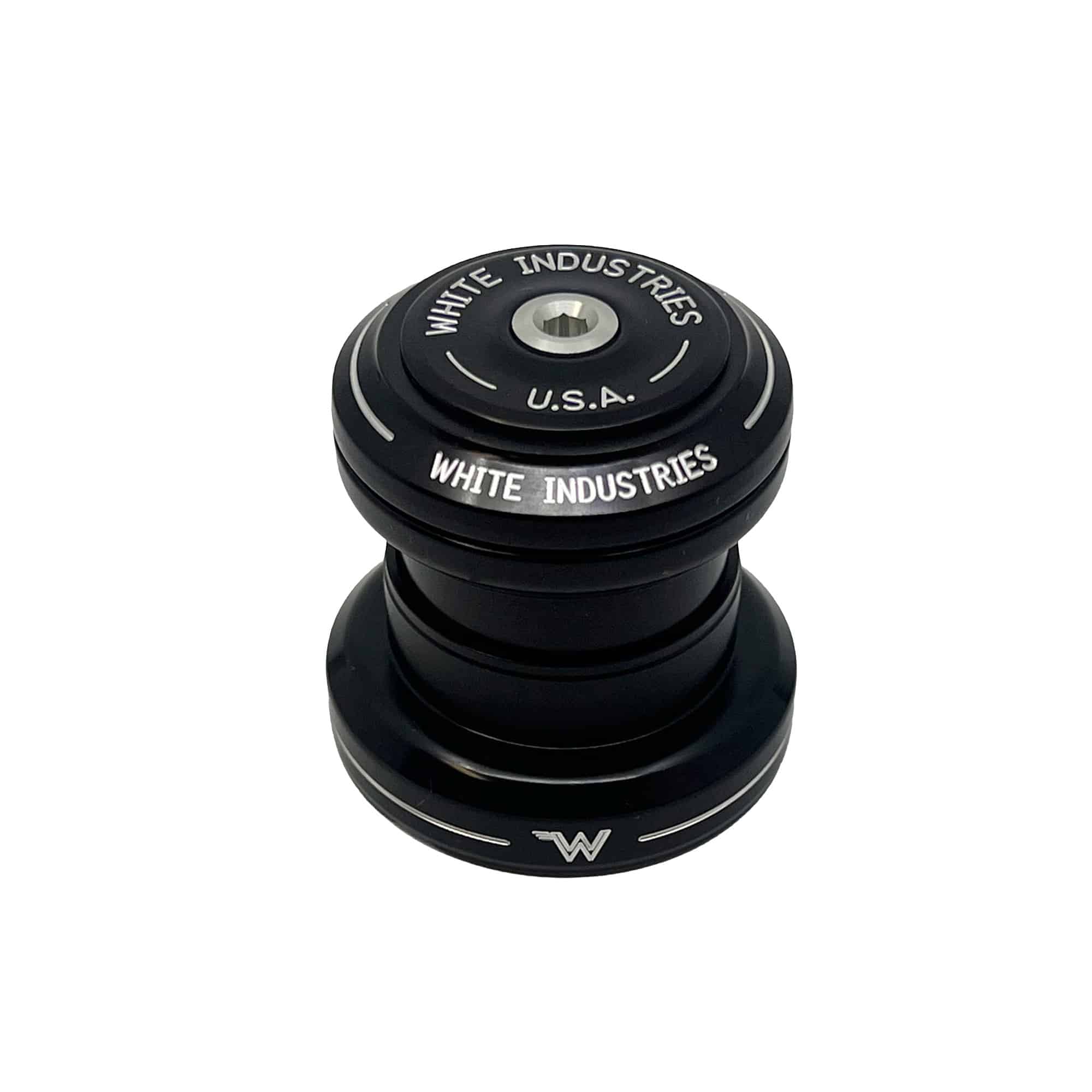

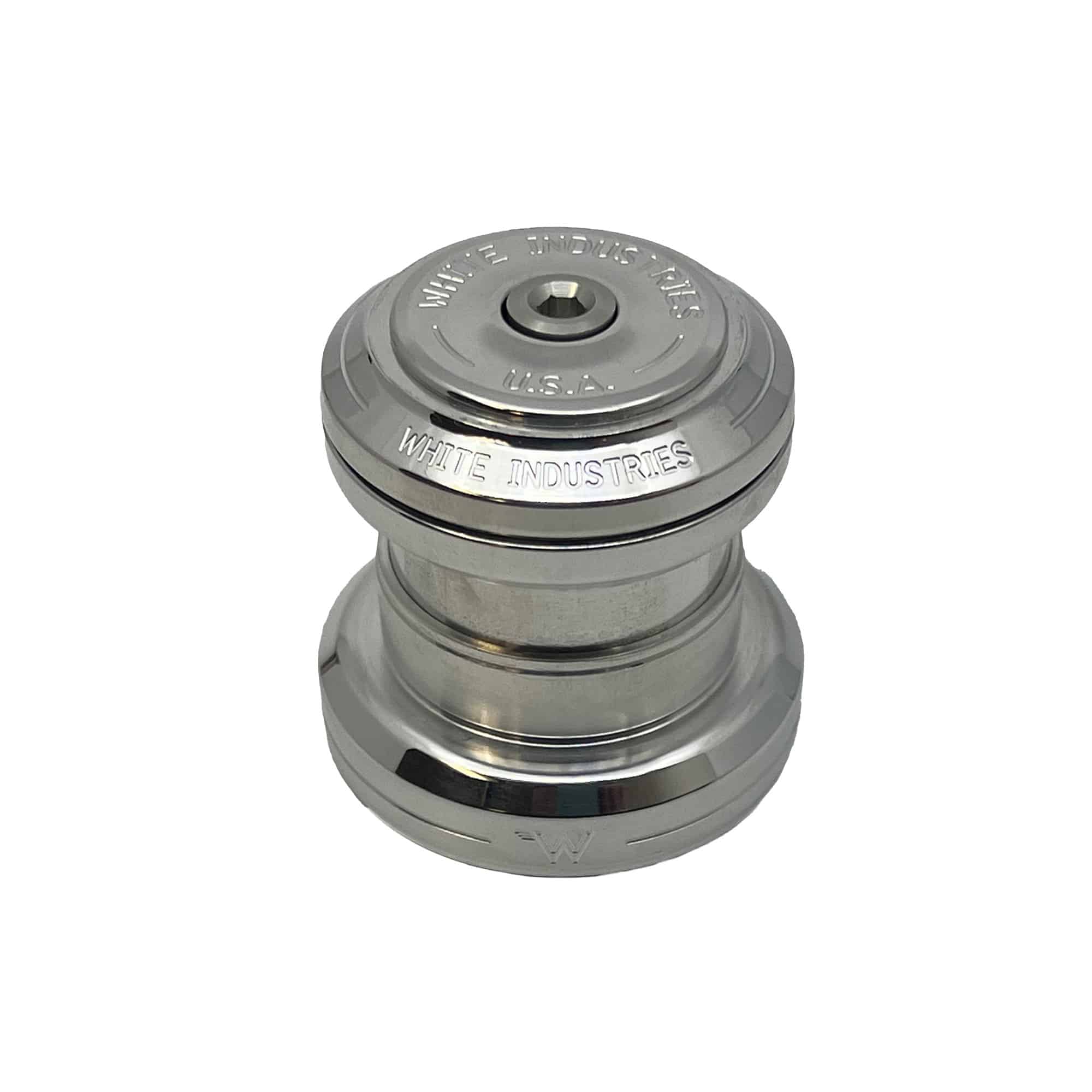

The EC34│EC37 headset is designed to fit frames with tapered 34mm top/37mm bottom head tubes and can accommodate straight and tapered fork steerers with the appropriate crown race. But nowadays with all the different headset standards available we needed to get specific so check the SHIS specs below. SHIS? Yep, that's the "Standardized Headset Identification System" used to verify compatibility.

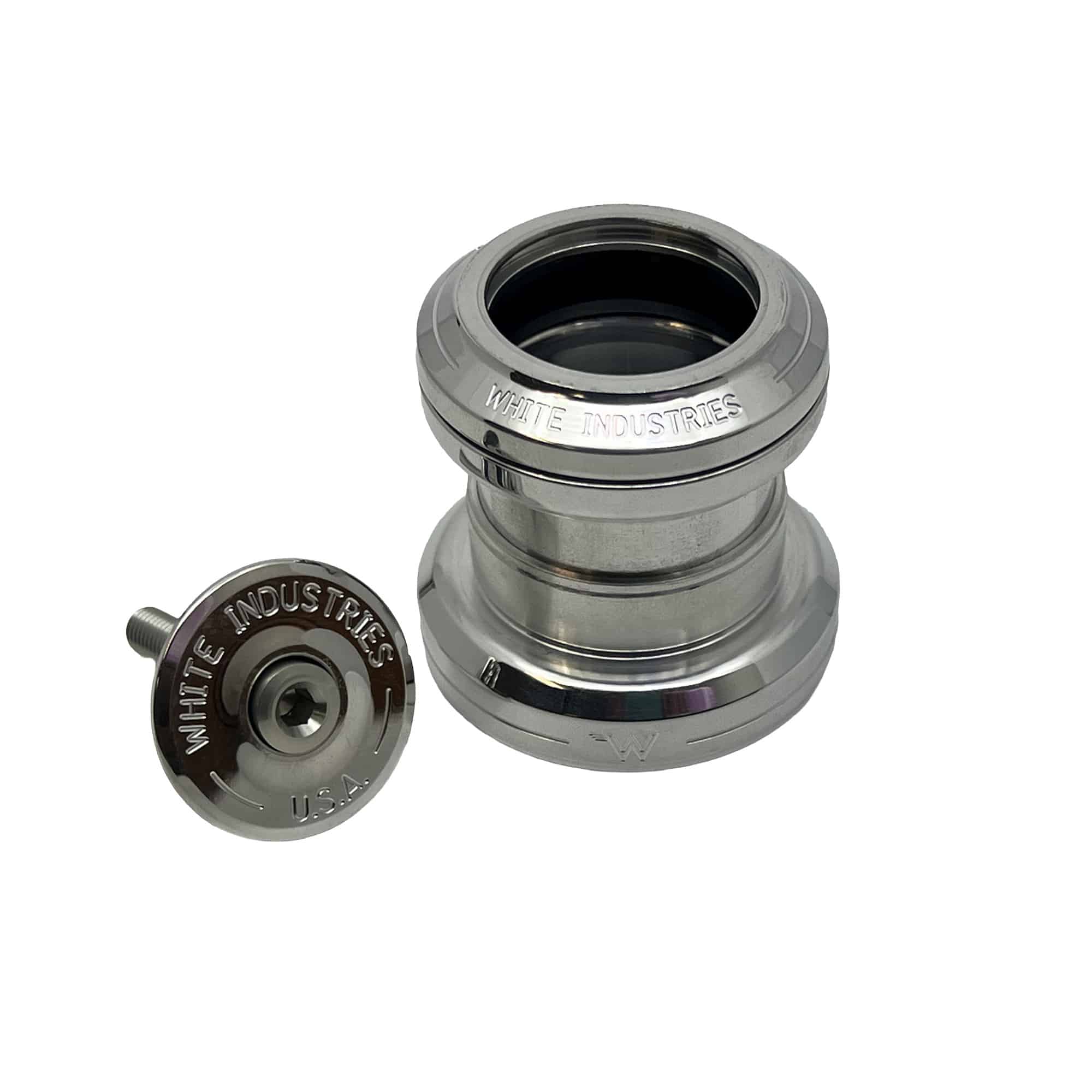

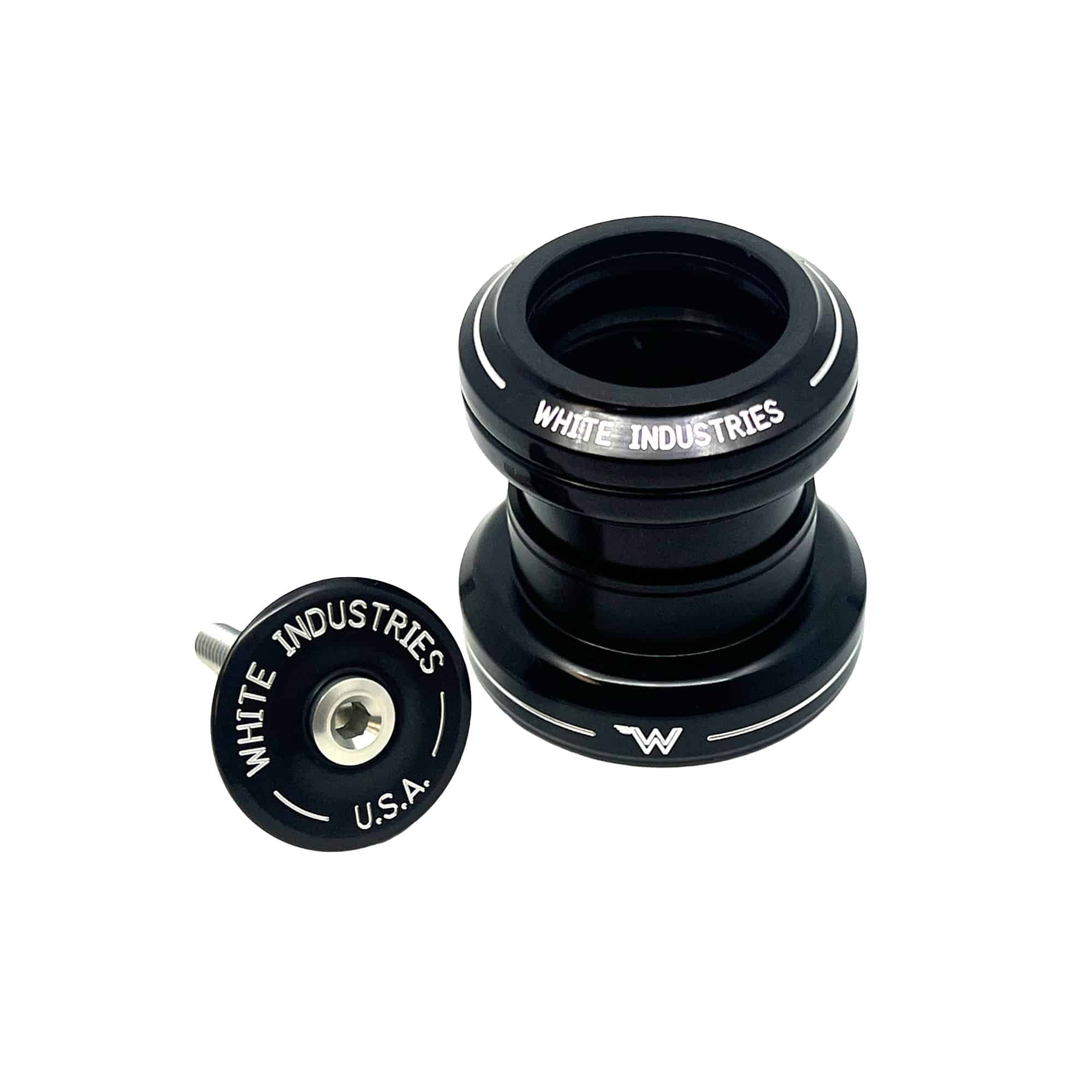

What’s in the box
- One headset which includes:
- Top cap bolt
- Top cap
- Bearing cover
- Upper bearing compression ring
- Upper bearing
- Upper cup
- Lower cup
- Lower bearing
- Crown race
- Headsets no longer include Star Nuts due to the Earth’s star nut overpopulation crisis. If you need one, they are available separately here.
Specs
- 6061-T6 aluminum
- Machine engraved logos
- Easily replaceable Enduro stainless steel angular contact bearings
- “Split” crown race for tool-free installation and removal
- Stack height
- Weight
Compatibility
- A perfect match to our really sweet matching headset spacers, available separately
- The EC34│EC37 headset is designed to fit frames with tapered 34mm/37mm head tubes and two types of fork steerers (see below)
- The “EC” stands for “External Cup” meaning the section of the cup that houses the bearing sits outside of the frame’s head tube. The “34” stands for the 34mm “skirt” that presses into the top of the head tube, and the “37” stands for the 37mm “skirt” that presses into the bottom of the head tube.
- SHIS specification
- Upper: EC34/28.6
- Lower: EC37/30 or EC37/33
- Can accommodate two types of fork steerers:
- “Straight 1-⅛” with a 30mm crown race seat
- “Tapered 1-¼” with a 33mm crown race seat
- Not compatible with carbon forks that have integrated crown race seats
- SHIS definitions on the Park Tools website: here
- Frame/Fork specs:
|
Frame upper head tube inside diameter
|
33.9mm to 33.95mm |
|
Frame lower head tube inside diameter
|
43.95mm to 44mm
|
|
Fork steerer diameter top section
|
28.45mm to 28.6mm
|
|
Crown race seat diameter for “straight 1-⅛”
|
30.015mm to 30.075mm
|
|
Crown race seat diameter for “tapered 1-¼”
|
33.03mm to 30.09mm
|
|
|
Bearings
|
Headset Model
|
Upper Bearing (inner/outer angle) |
Lower Bearing (inner/outer angle) |
Lower Fork Race Compatibility
|
|
EC34│EC47
|
ACB3645SS (36/45) |
ACB45/45125LSS (45/45) |
1-⅛” (30mm)
1-¼” (33mm)
|
You will need to do some homework and get the SHIS specs of your frame and fork which those manufacturers will have. See those definitions here. Also see the “Compatibility” section on this page. Simply telling us what model bike you have may not be enough info to go on. Help us help you and get the specs!
