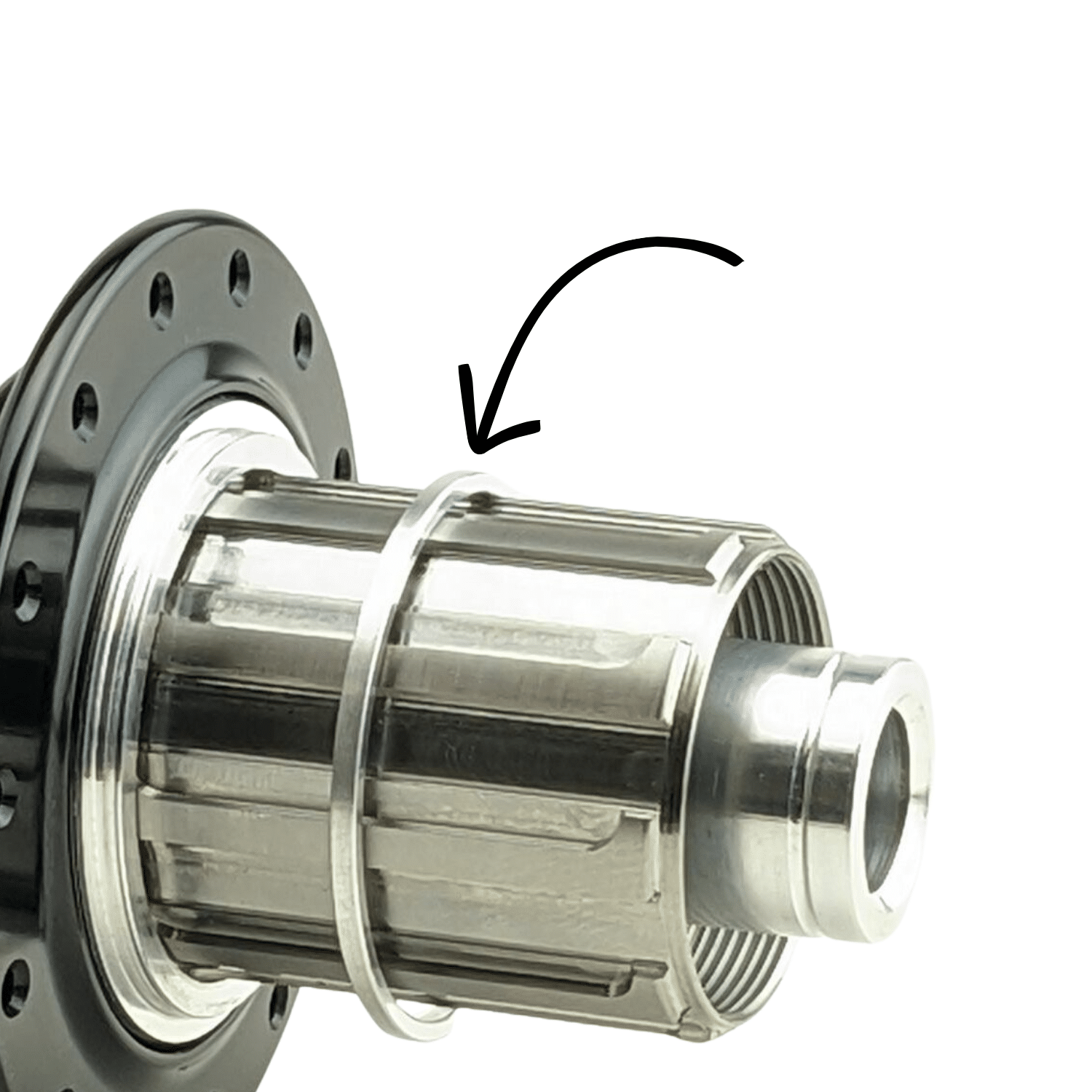

Freehub Body Cassette Spacer

$5.00

Product Details These spacers are used in certain cases on White Industries Shimano HG 8-12 speed freehub bodies and SRAM XD/XDR freehub bodies, depending on which cassette you are using.  They come included on our SRAM XD/XDR freehub bodies (when ordered as part of a complete hub or freehub body only), but are not included […]

SKU: SPACER11
Category:

Description

Product Details

These spacers are used in certain cases on White Industries Shimano HG 8-12 speed freehub bodies and SRAM XD/XDR freehub bodies, depending on which cassette you are using.  They come included on our SRAM XD/XDR freehub bodies (when ordered as part of a complete hub or freehub body only), but are not included on our Shimano HG 8-12 speed freehub bodies (when ordered as part of a complete hub or freehub body only).



Technical Documents

Looking for more detailed technical info? Visit our Technical Documents page here.

Specs

  • 6061-T6 unanodized aluminum, silver (raw)
  • 38mm OD x 35mm ID x 1.85mm thick
  • For use with Shimano HG style cassettes or SRAM XD cassettes
  • Compatible with White Industries Shimano HG 8-12 speed and SRAM XD/XDR freehub bodies

For Shimano cassettes on our Shimano HG 8-12 speed freehub body:

  • You will need a spacer if:
    • You are using a Shimano 11 speed mountain cassette (they do not come with a spacer)
    • You are using a Shimano 9 or 10 speed cassette
      • 8 speed cassettes require a wider spacer, which we don’t make
    • You are using a Shimano HG-800 11/34 cassette (Shimano does supply the correct spacer with the cassette)
  • You will not need a spacer if:
    • You are using a Shimano 11 speed road cassette
    • You are using a Shimano 12 speed road cassette

For SRAM XD and XDR cassettes on our SRAM XD/XDR freehub body:

  • You will need a spacer if:
    • You are using a SRAM XD cassette
      • These are the bigger gravel and mountain cassettes and are actually narrower than XDR road cassettes
  • You will not need a spacer if:
    • You are using a SRAM XDR cassette
      • These are the smaller road cassettes and are actually wider than XD gravel and mountain cassettes

Additional information

Weight 0.5 oz
Dimensions 1.5 × 1.5 × 0.1 in
