Product Details
This two-piece tool was designed as a more affordable way to remove 29mm and 30mm bottom bracket bearings from BSA, T47, and PF30 bottom bracket cups. Currently your options are either invest in an elaborate bearing puller and all the appropriate little pieces to fit each specific bearing, or use a screwdriver to knock your bearings out and probably gouge the inside of your cups. This tool does not require any other removal tools beyond either a rubber mallet, a bench vice, or an arbor type press. BSA cups with 29mm or 30mm bearings are notoriously hard to disassemble because there is almost zero clearance between the I.D. of the cup and I.D. of the bearing. But you already knew that, which is why you’re reading this. So invest in the correct tool for the job!
Specs
- Made here in our shop from 6061-T6 aluminum
- Anodized black and laser engraved
Compatibility
- Bearing Pilot fits 29mm or 30mm I.D. bearings
- Will work with 24mm bearings but the Pilot will sit on the bearing face, not inside the inner race

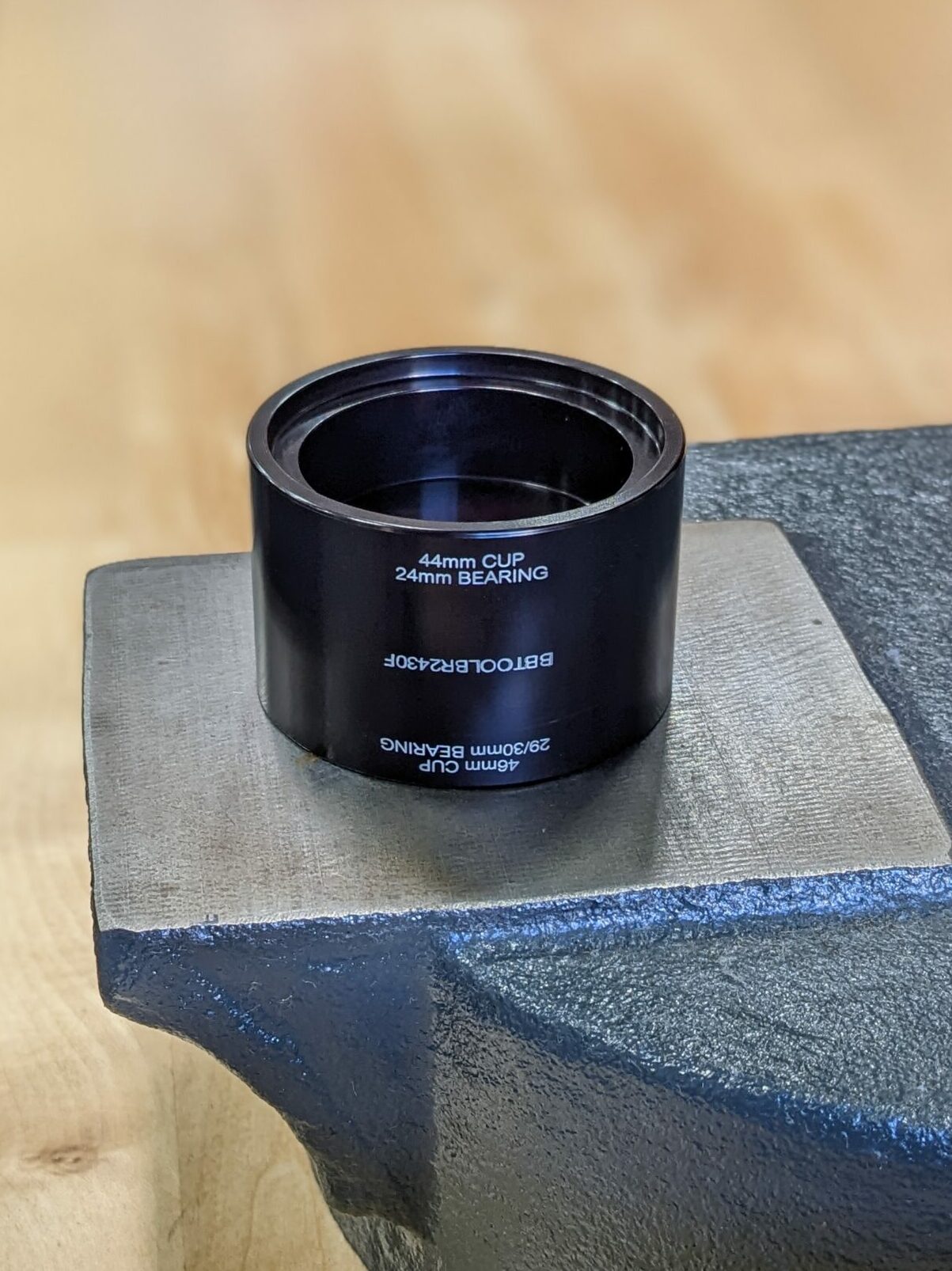

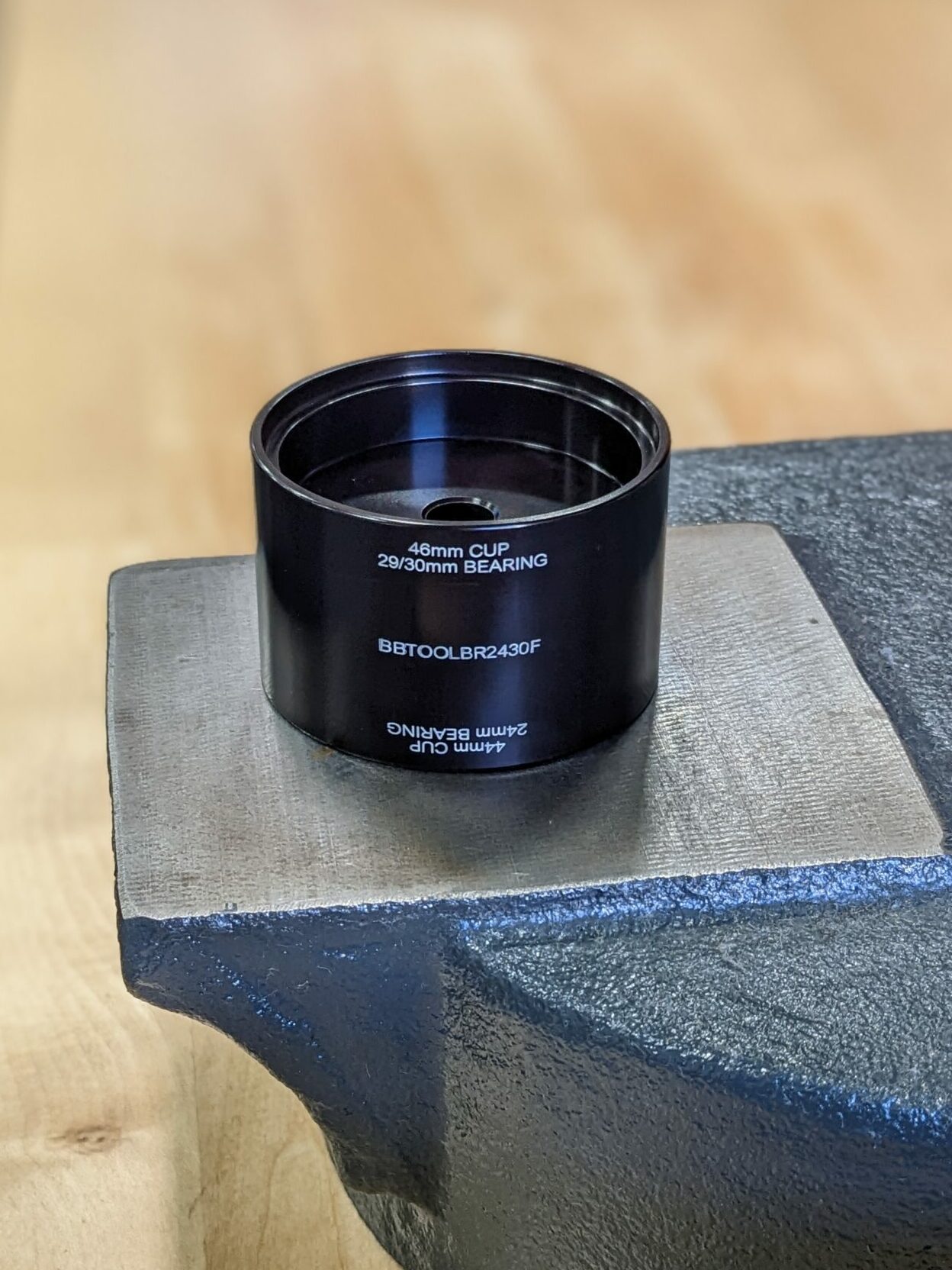

- Receiver Cup fits 44mm or 46mm O.D. BB cups
- At least one bottom bracket cup needs to be removed to use the tool
- We recommend removing both cups for cleaning and ease of bearing removal

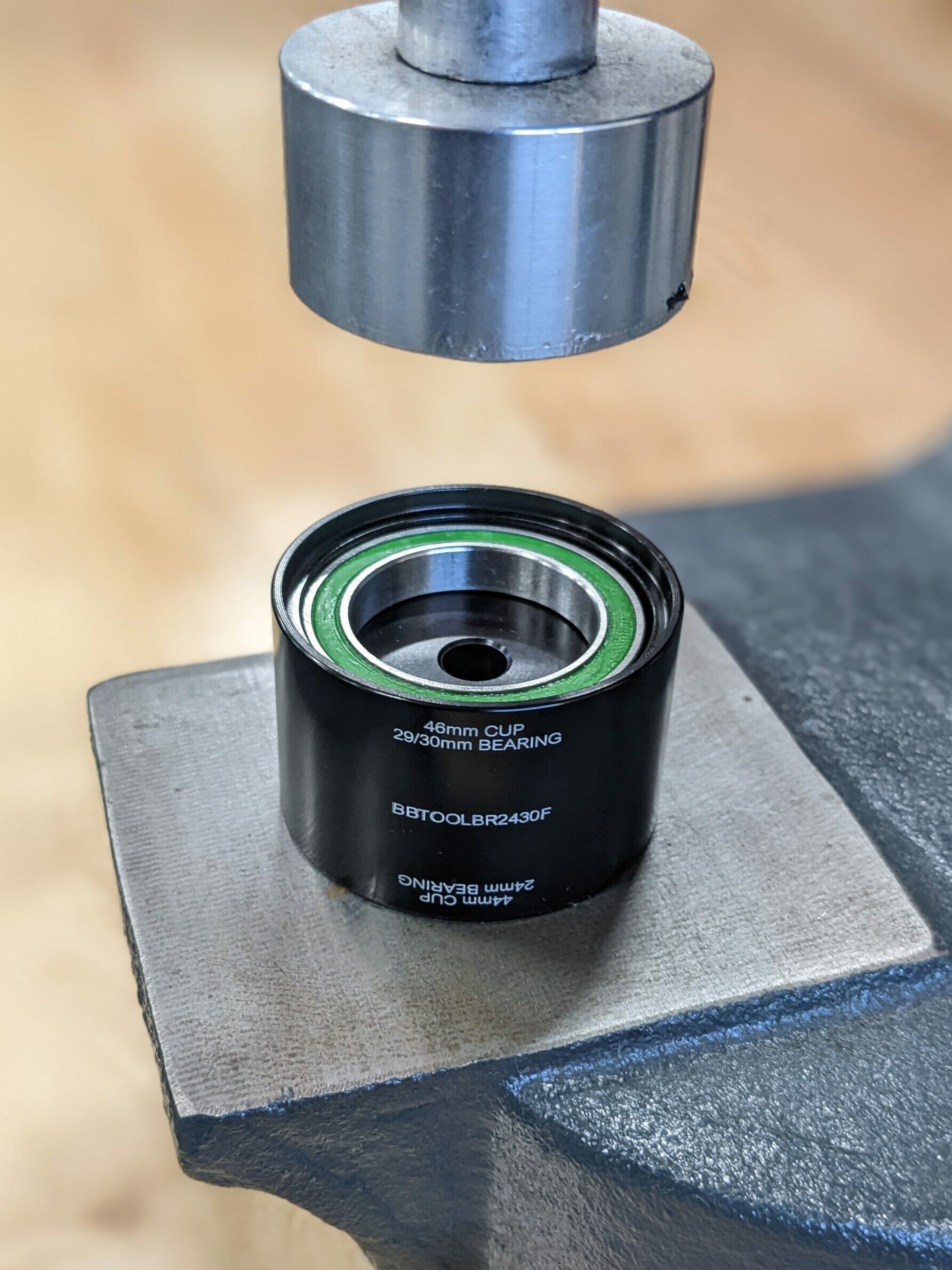

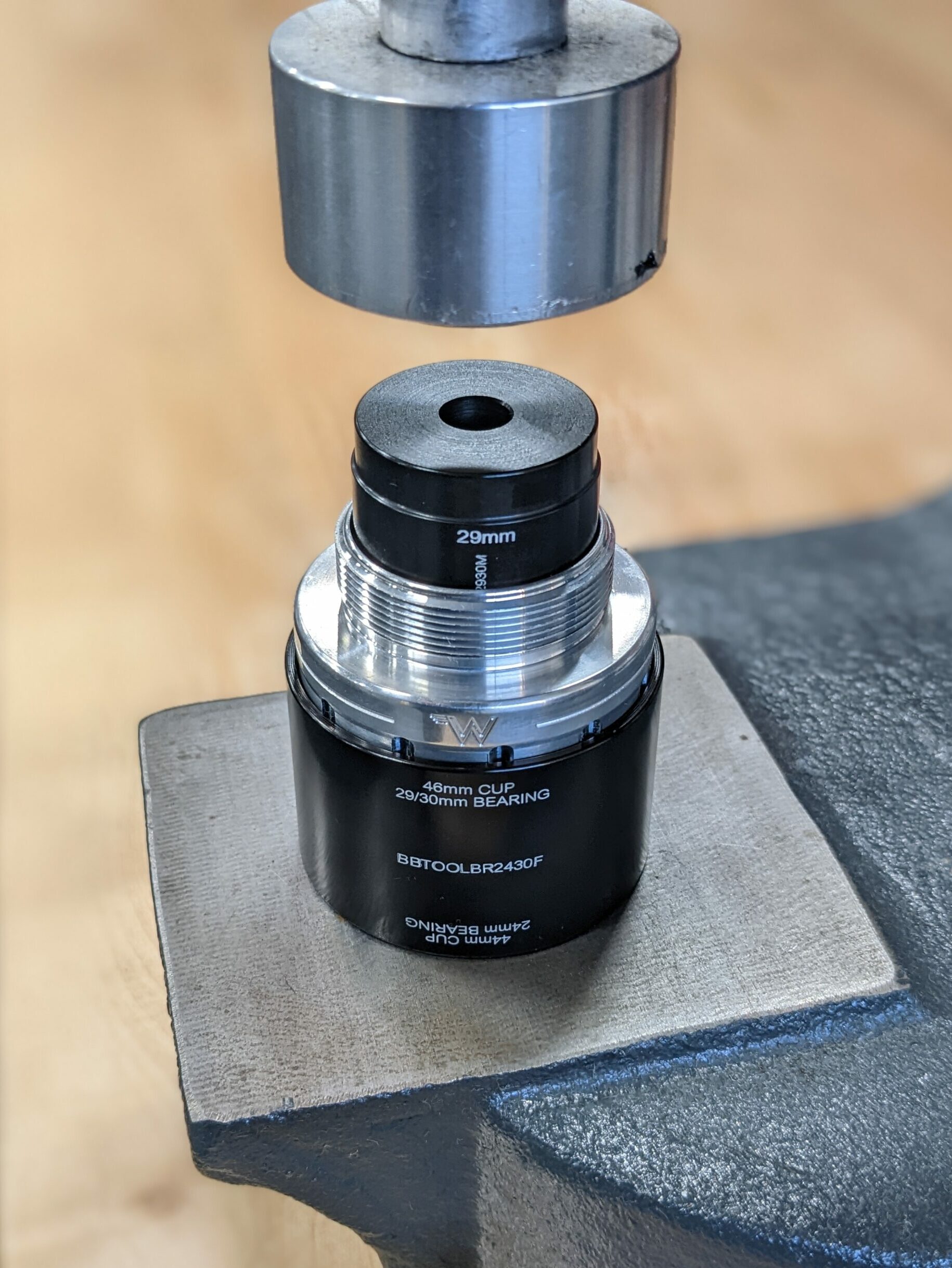

- Can be used with a rubber mallet, bench vise, arbor type press, or bearing presses that have an 8mm (5/16″) screw/rod
- This is not a bottom bracket cup removal tool!
What’s In The Box

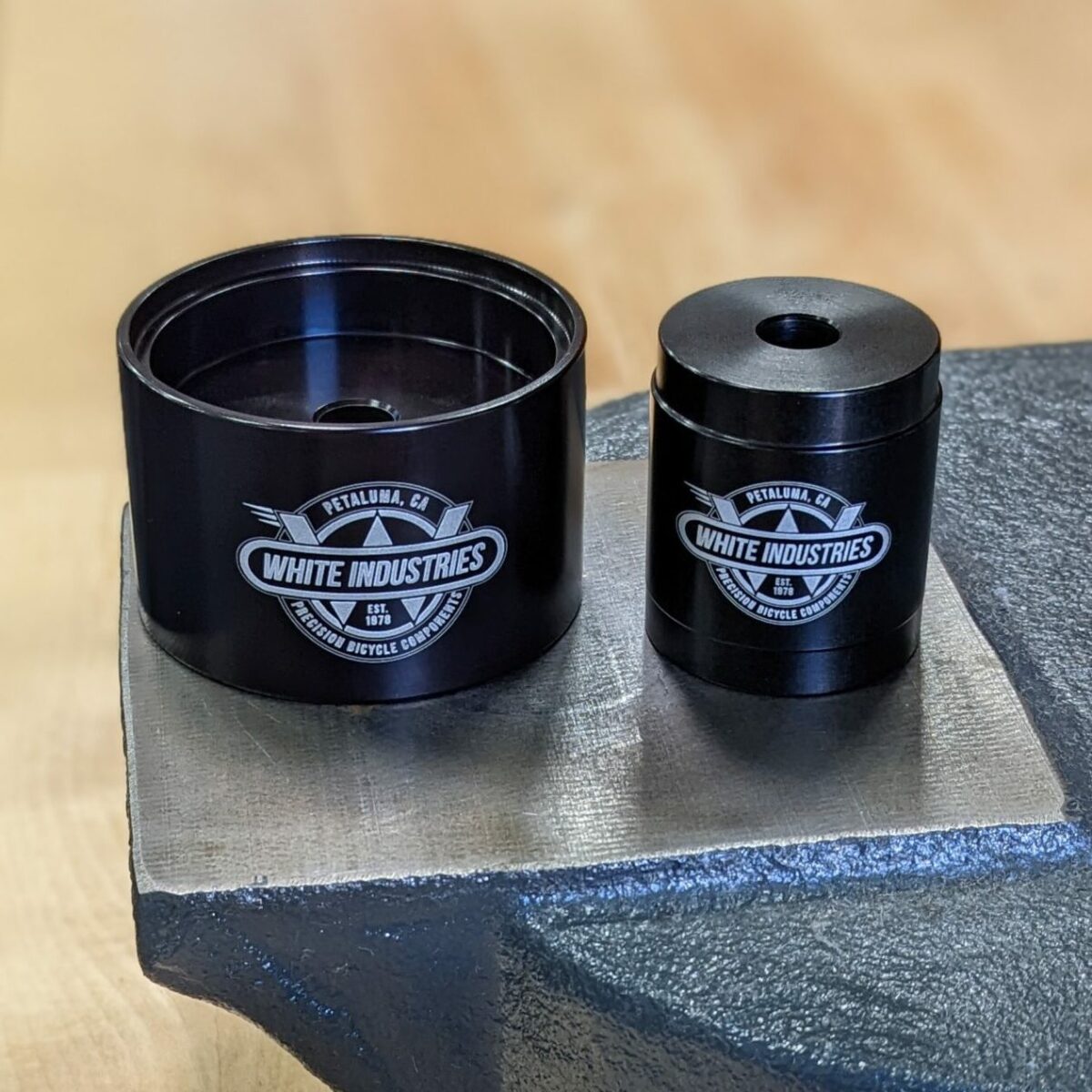

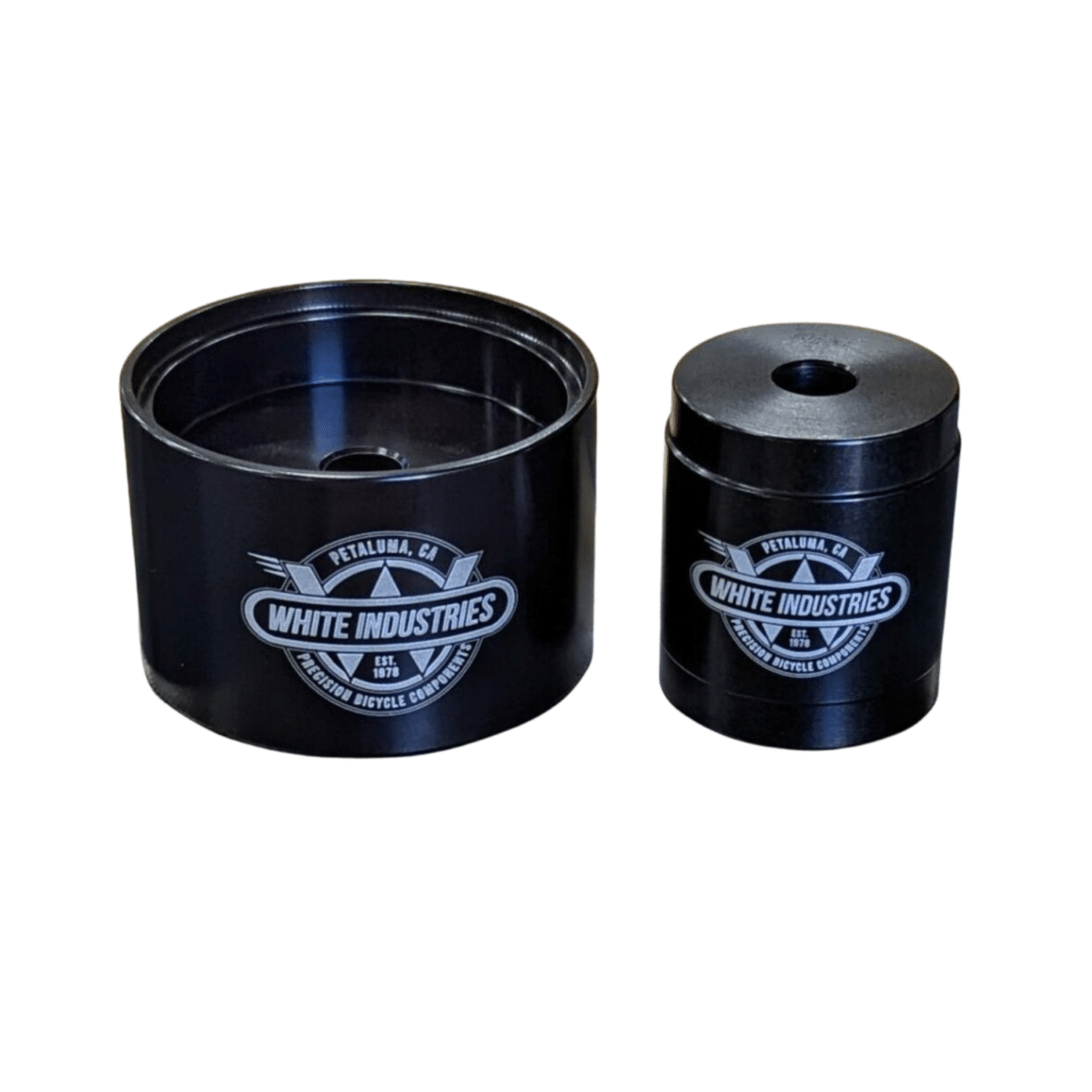

- Set includes Bearing Pilot and Receiver Cup
FAQ
- Will this tool remove my bottom bracket cups?
- No. This tool removes the bearings from the cups, not the cups from the frame.
- Can I use this as a bearing installation tool?

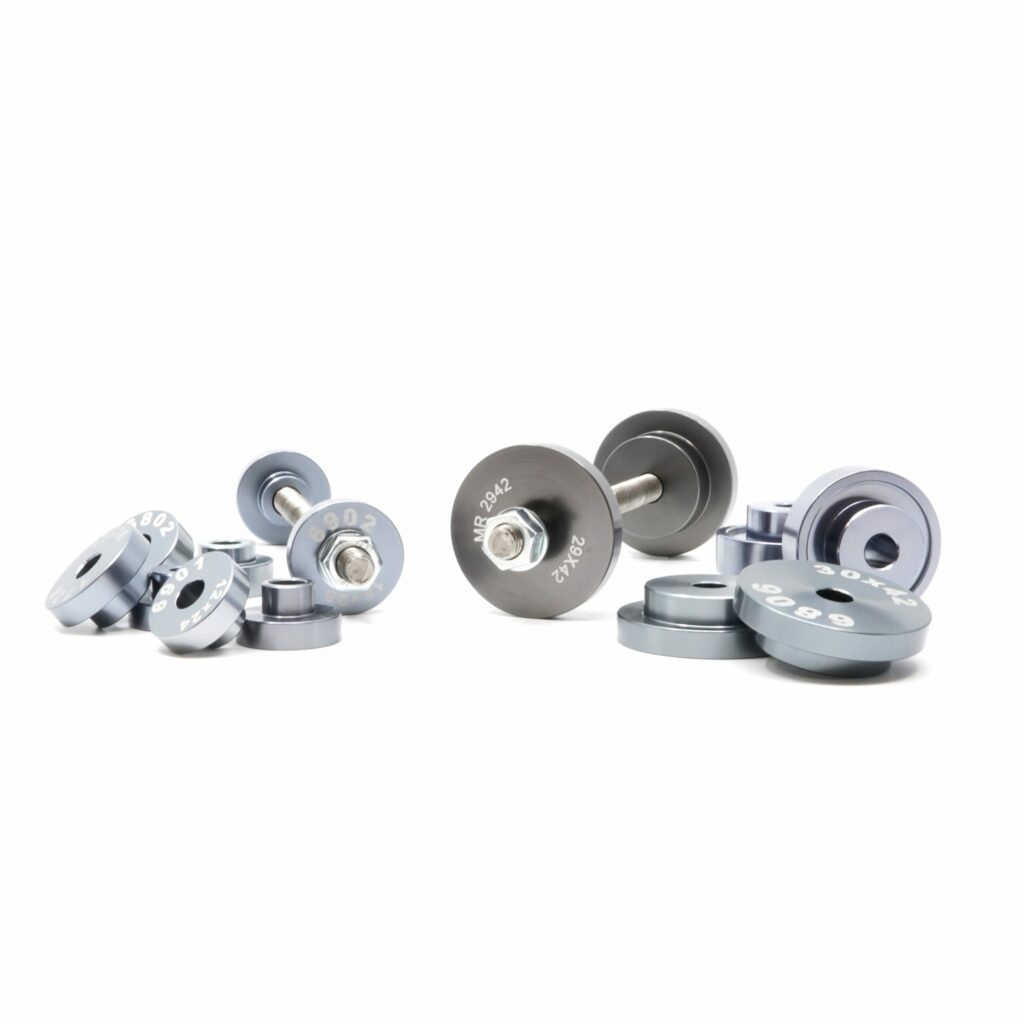

- You shouldn’t. Bearing installation tools press on the outer bearing race only which protects the balls and races from denting internally. This tool presses on the inner race, and can damage the bearing if too much pressure is applied. For bearing installation, see our Bearing Press under Tools>Bearing Presses.
- Will this tool work on other bottom bracket brands?
- Maybe. As long as the bearings are 24mm, 29mm or 30mm, and the outer diameter of the cup is either 44mm or 46mm, then the tool will work.
