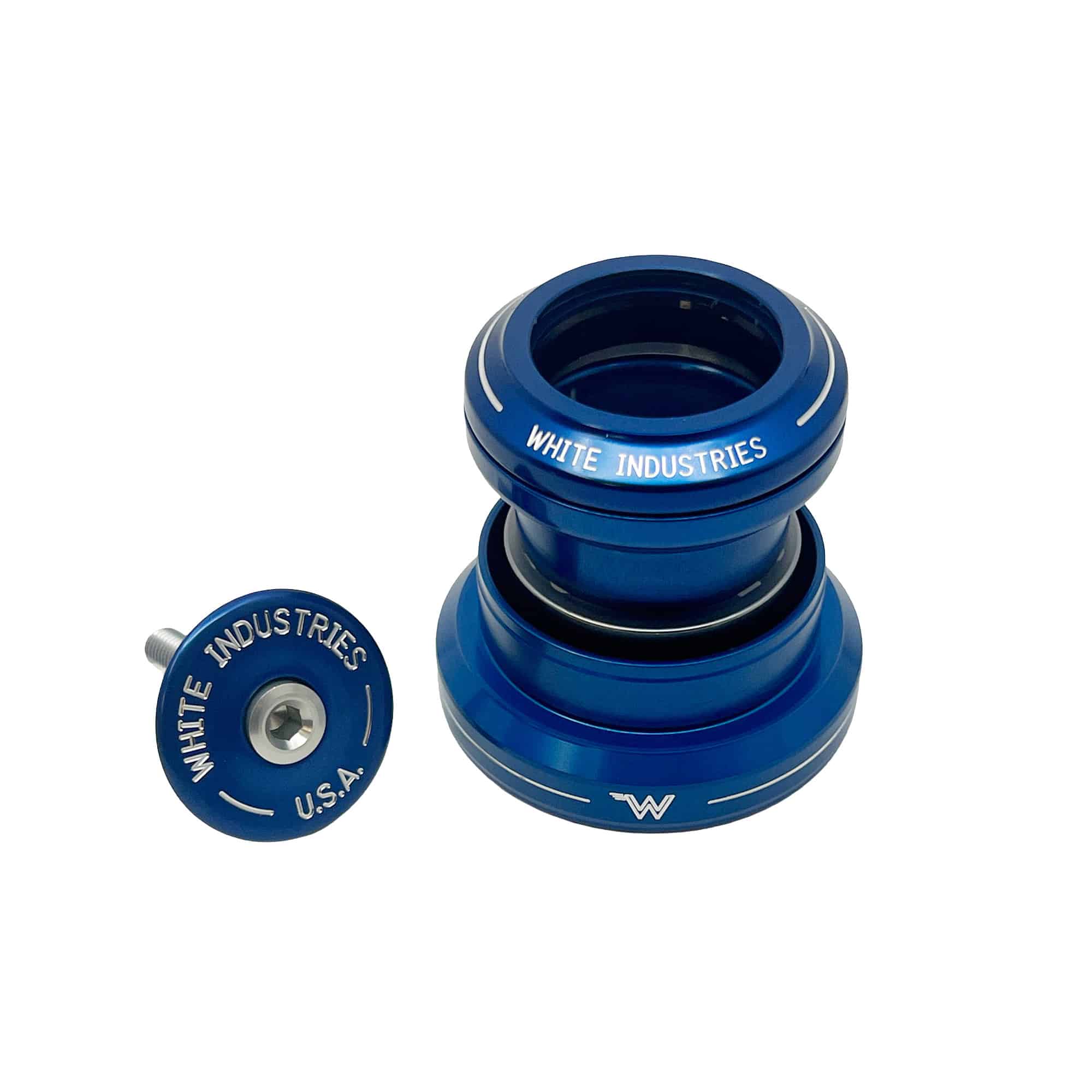

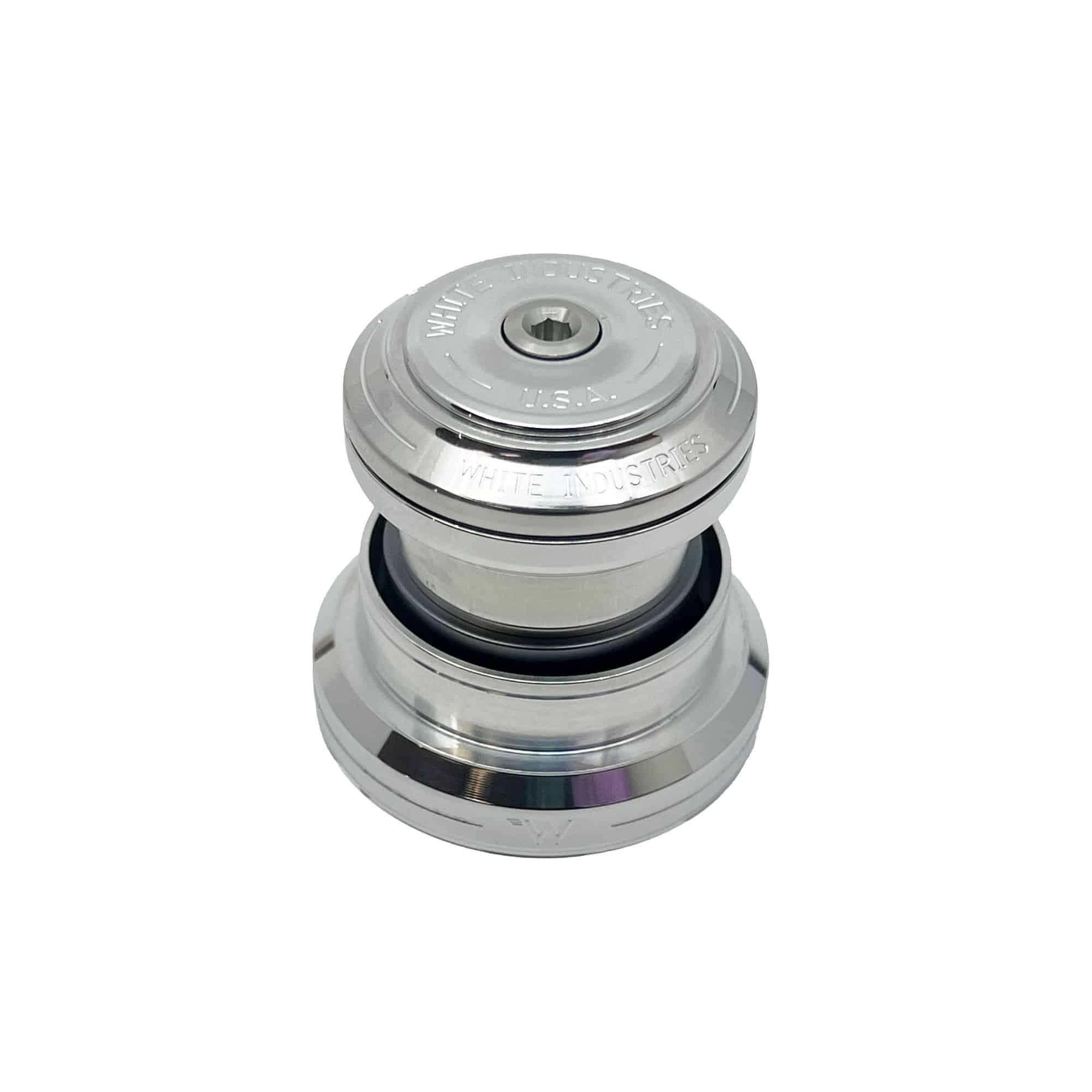

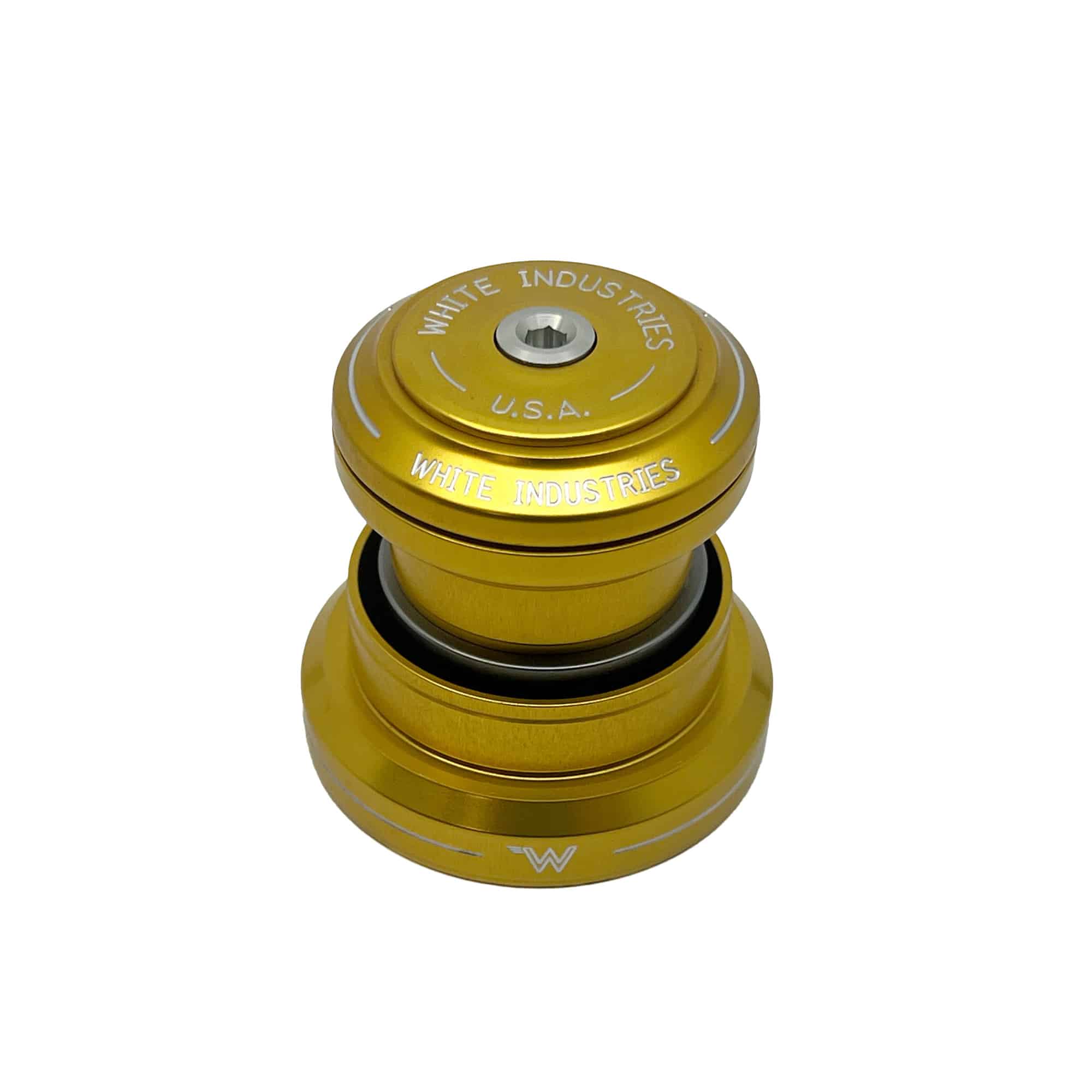

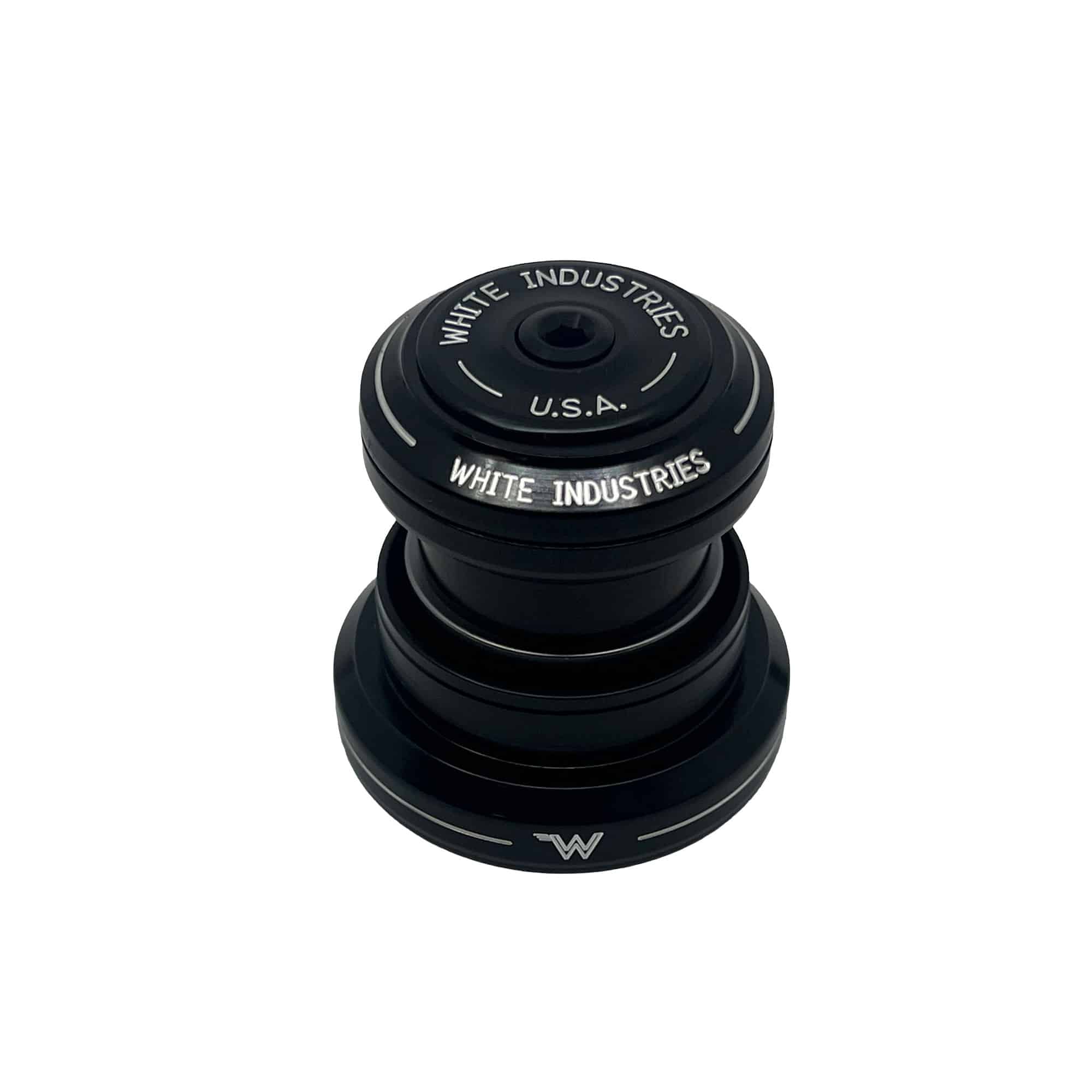

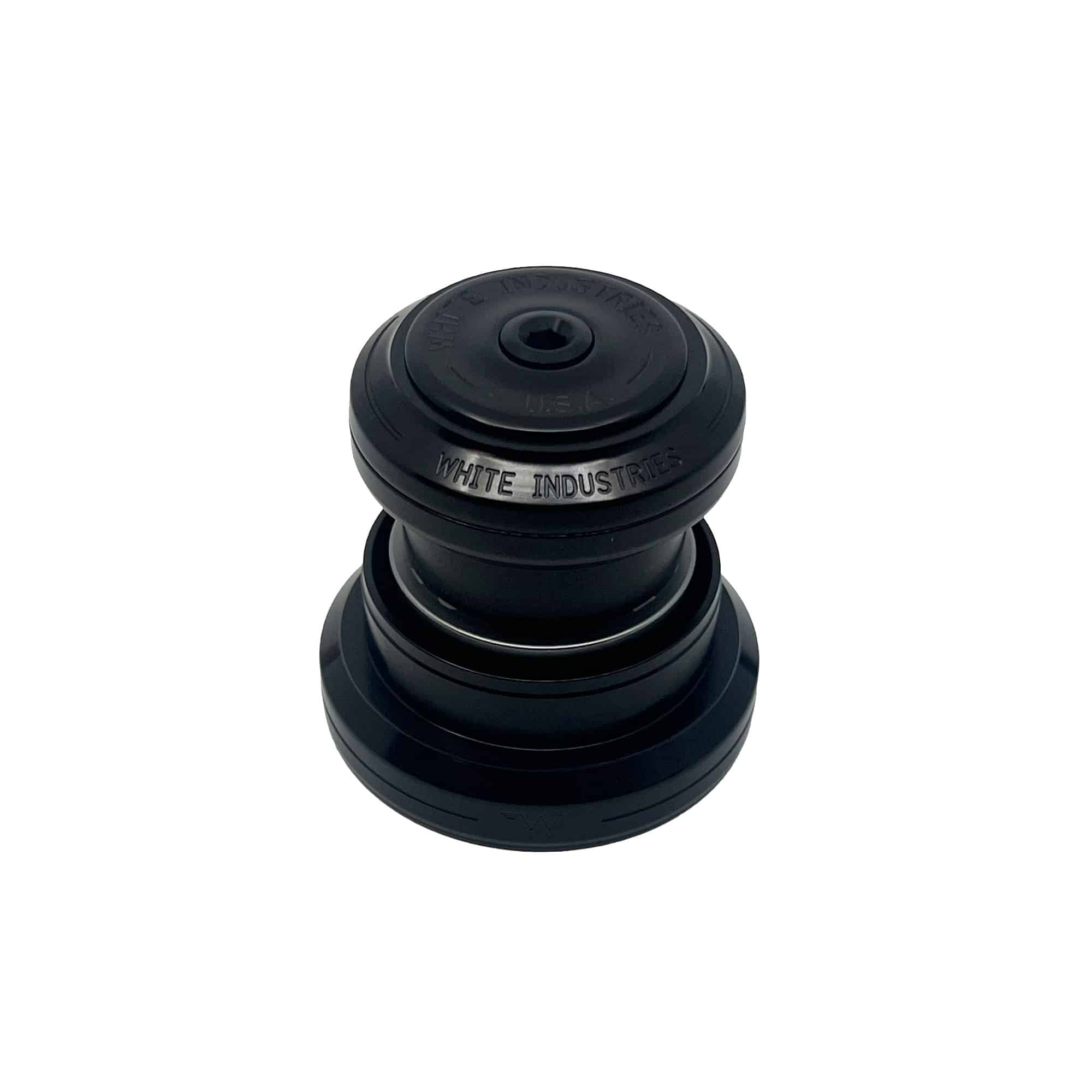

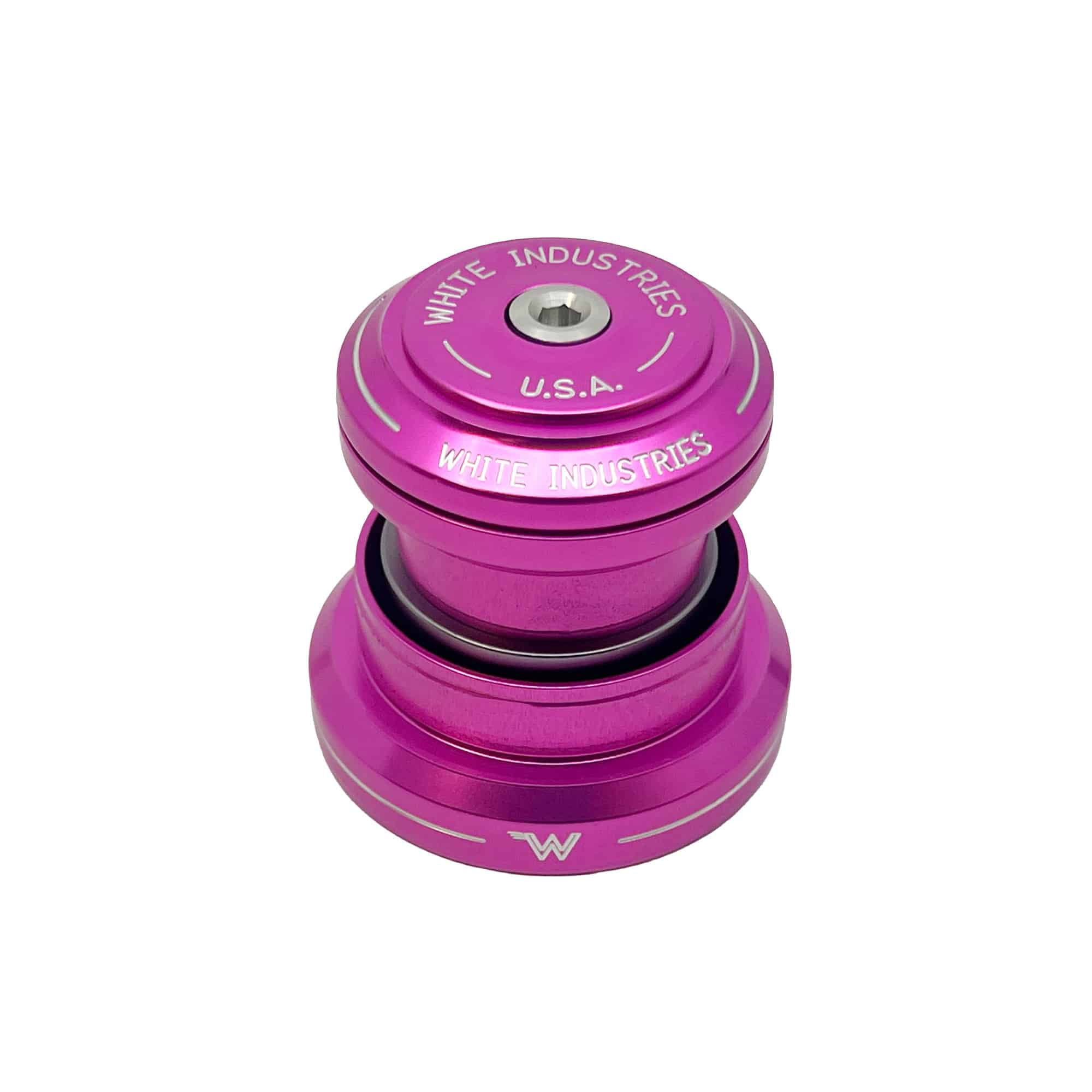

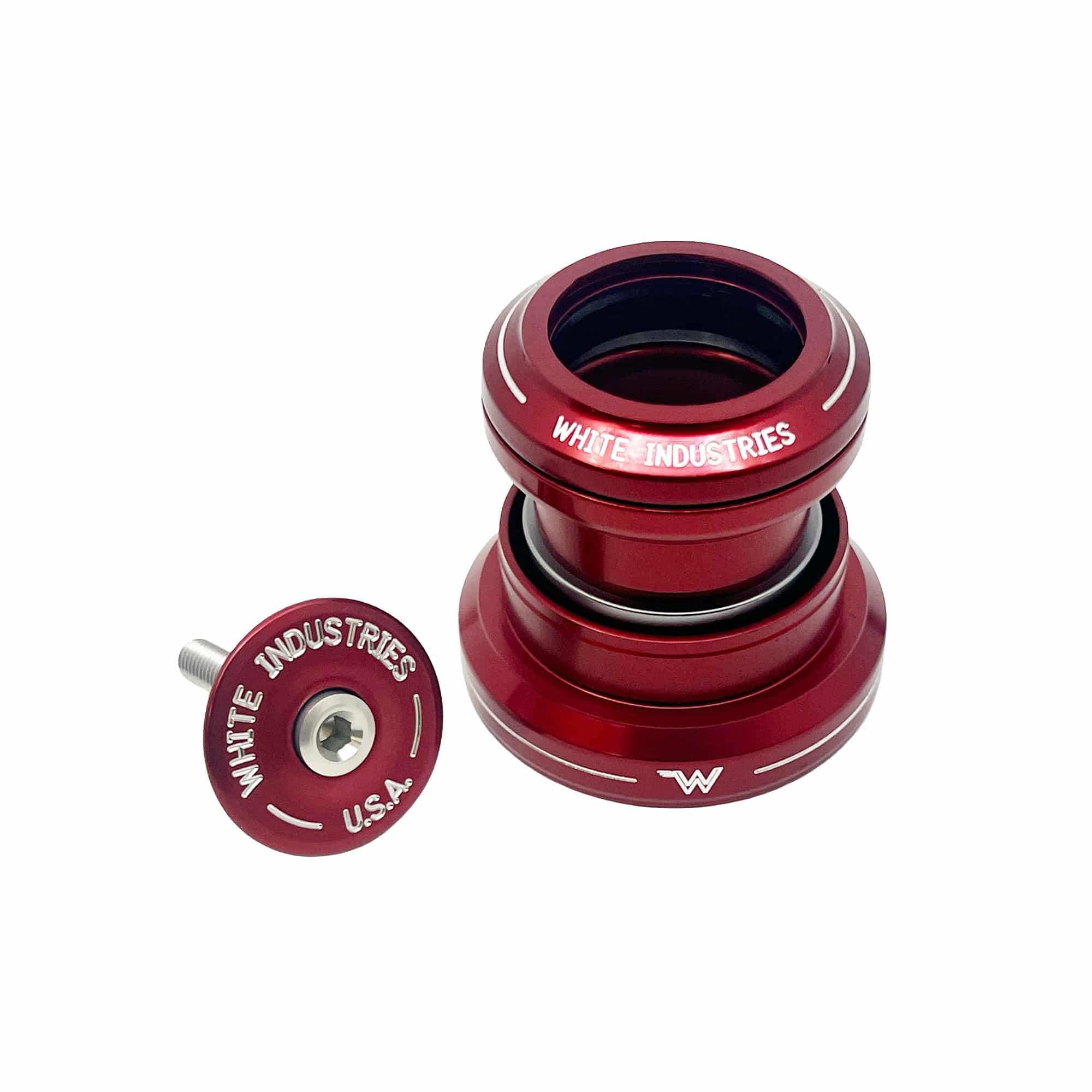

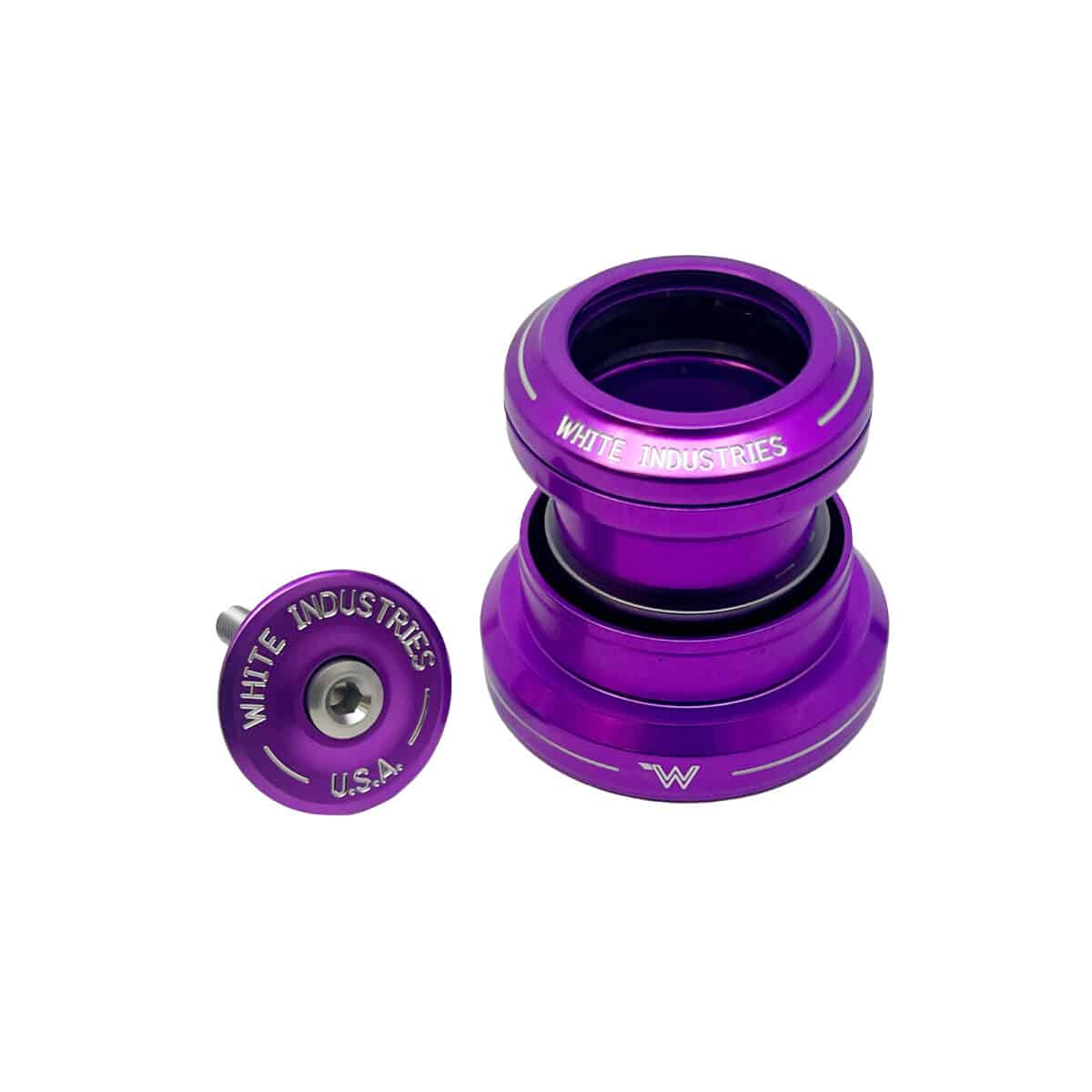

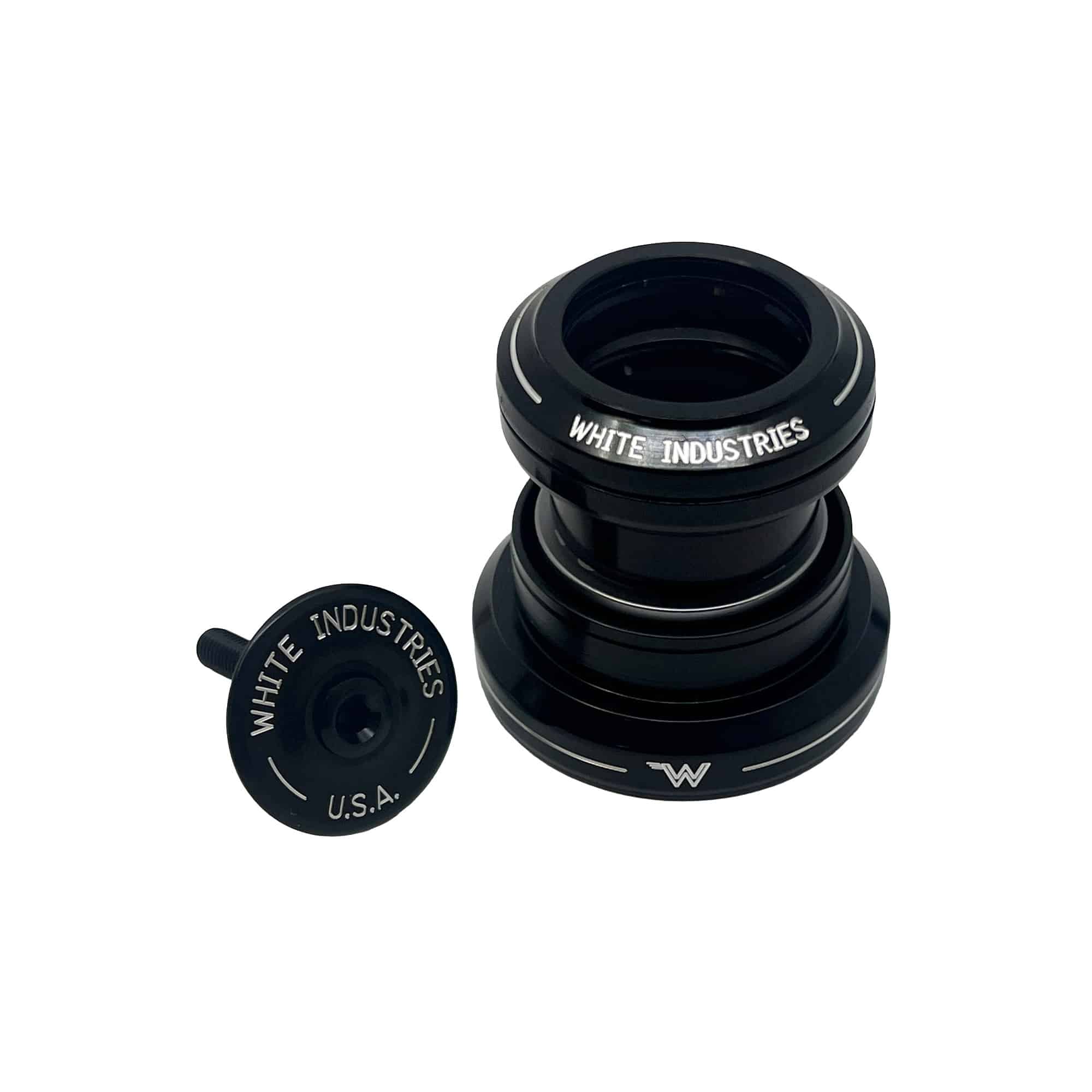

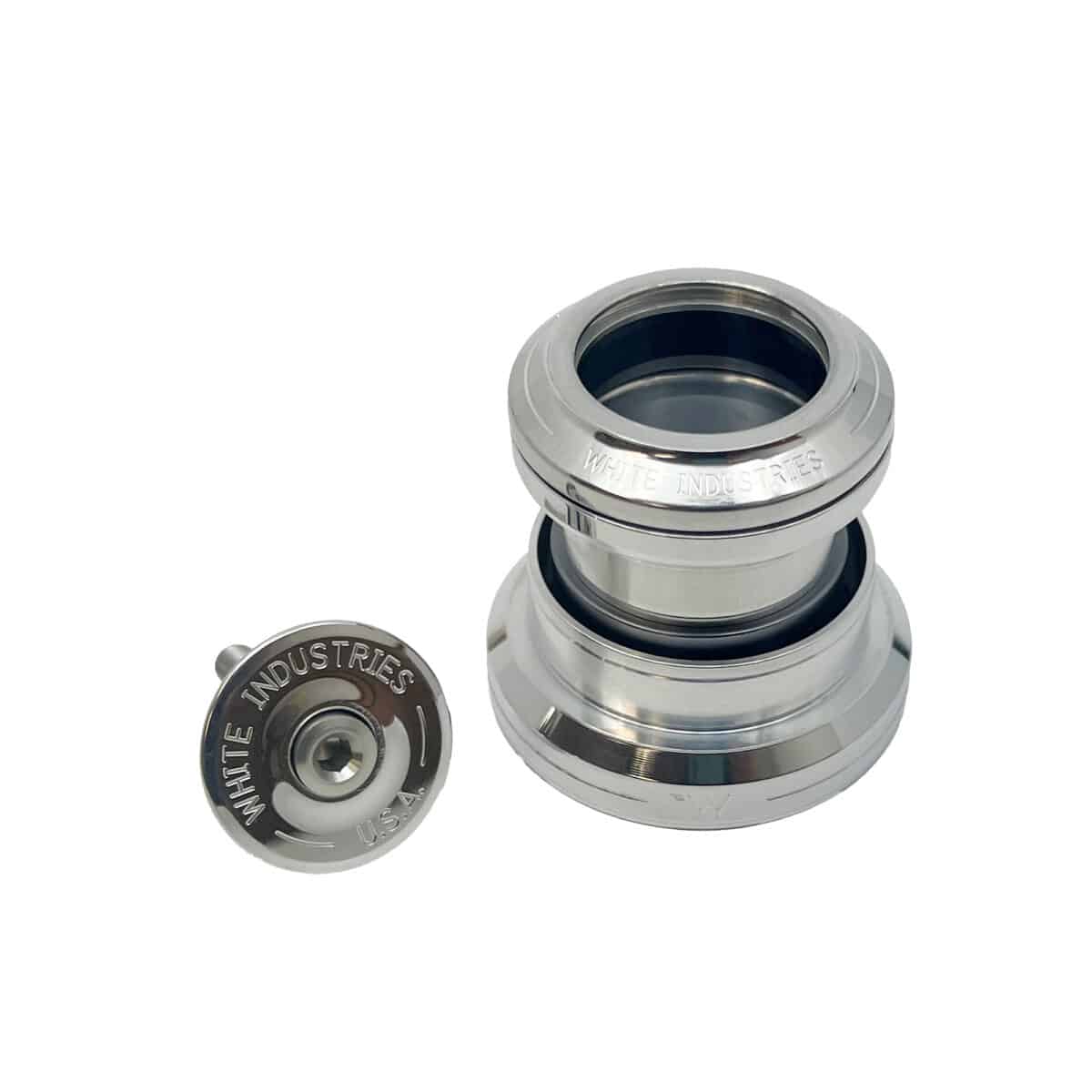

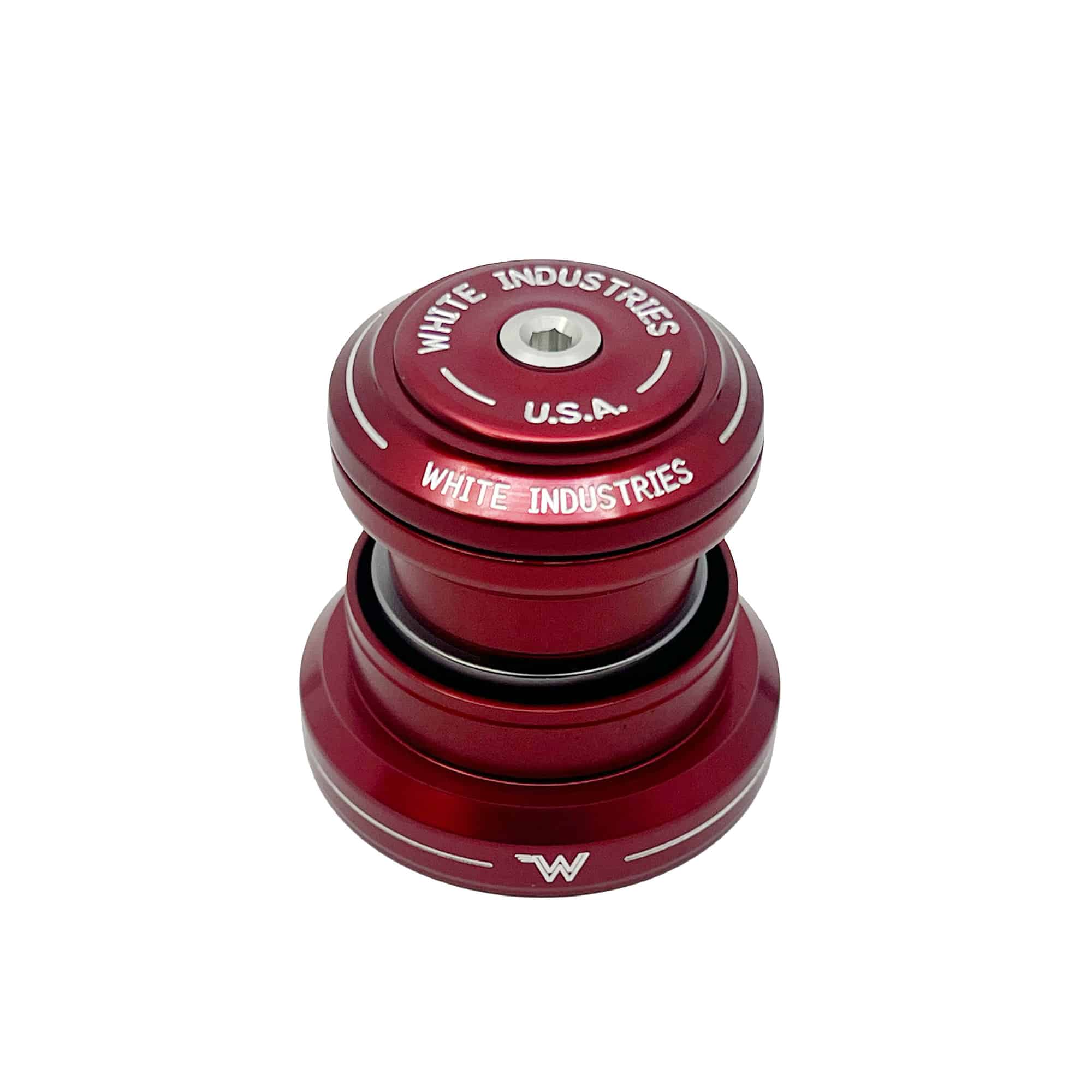

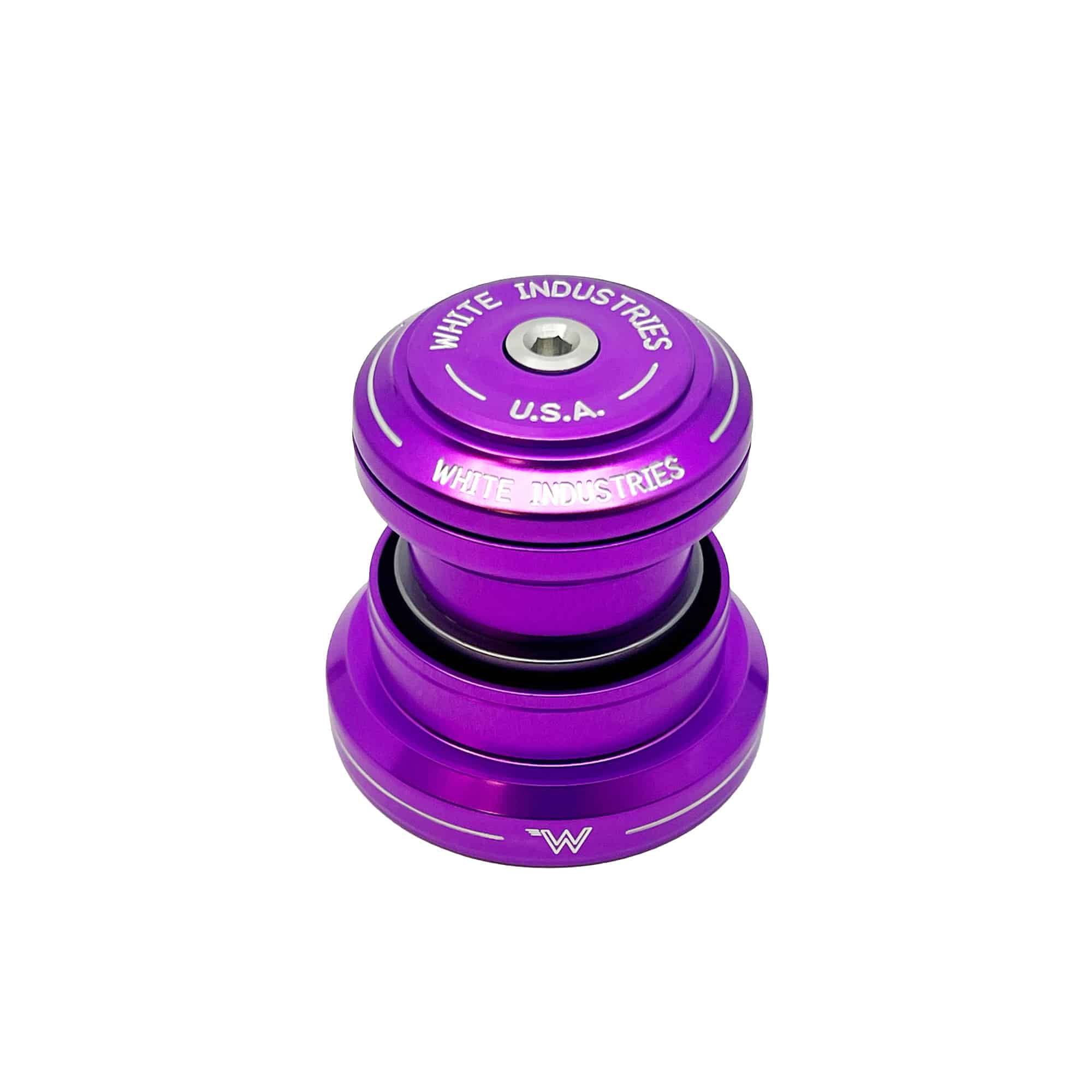

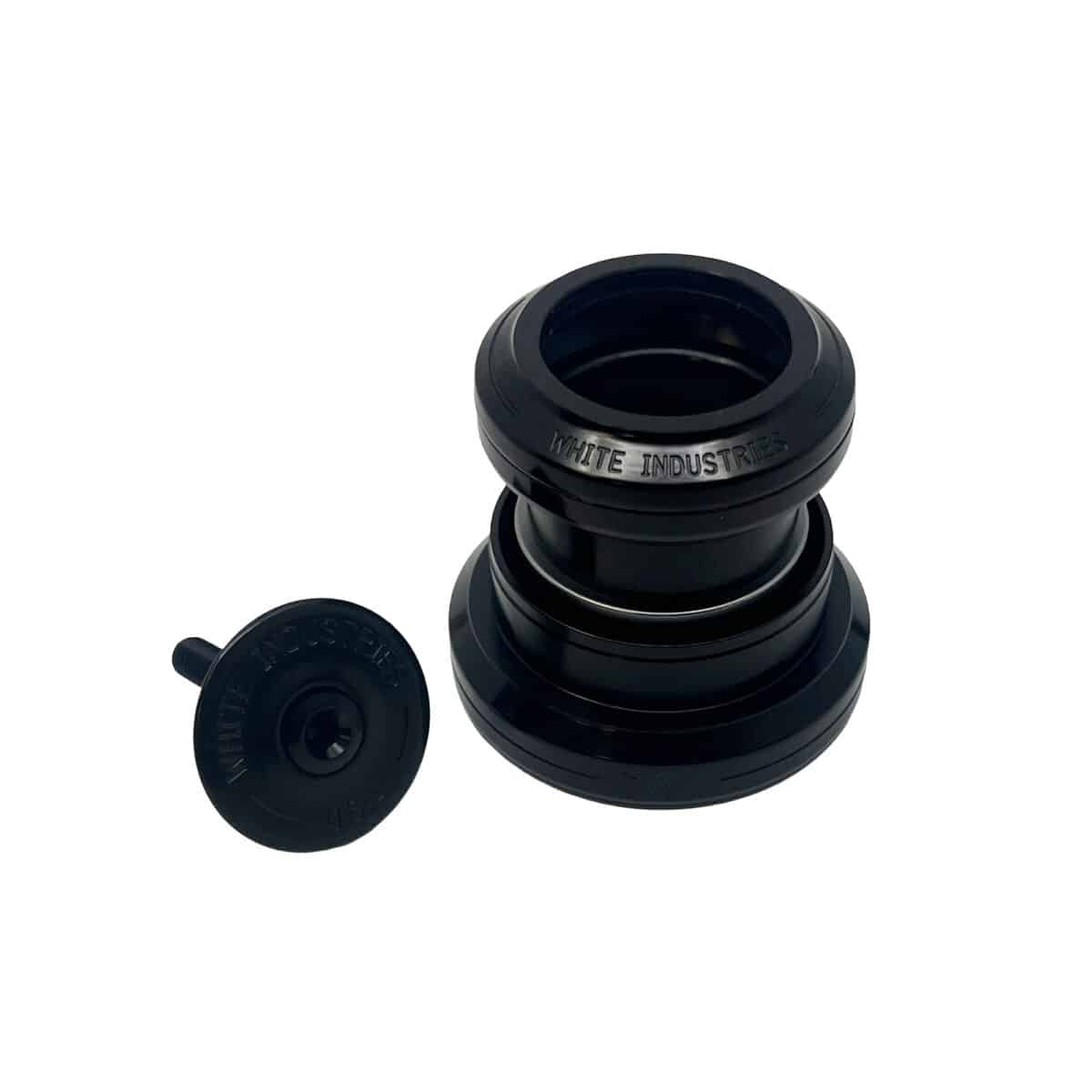

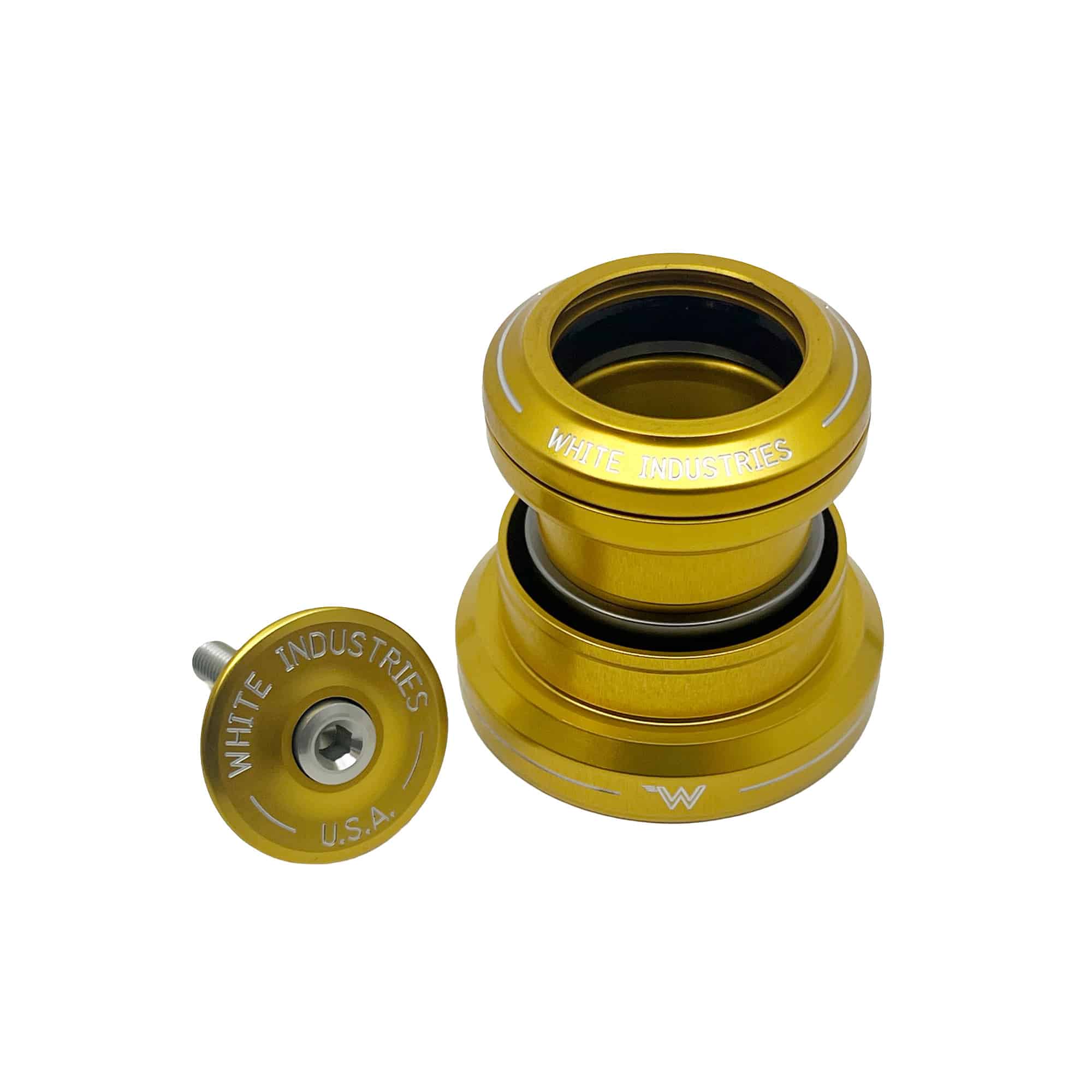

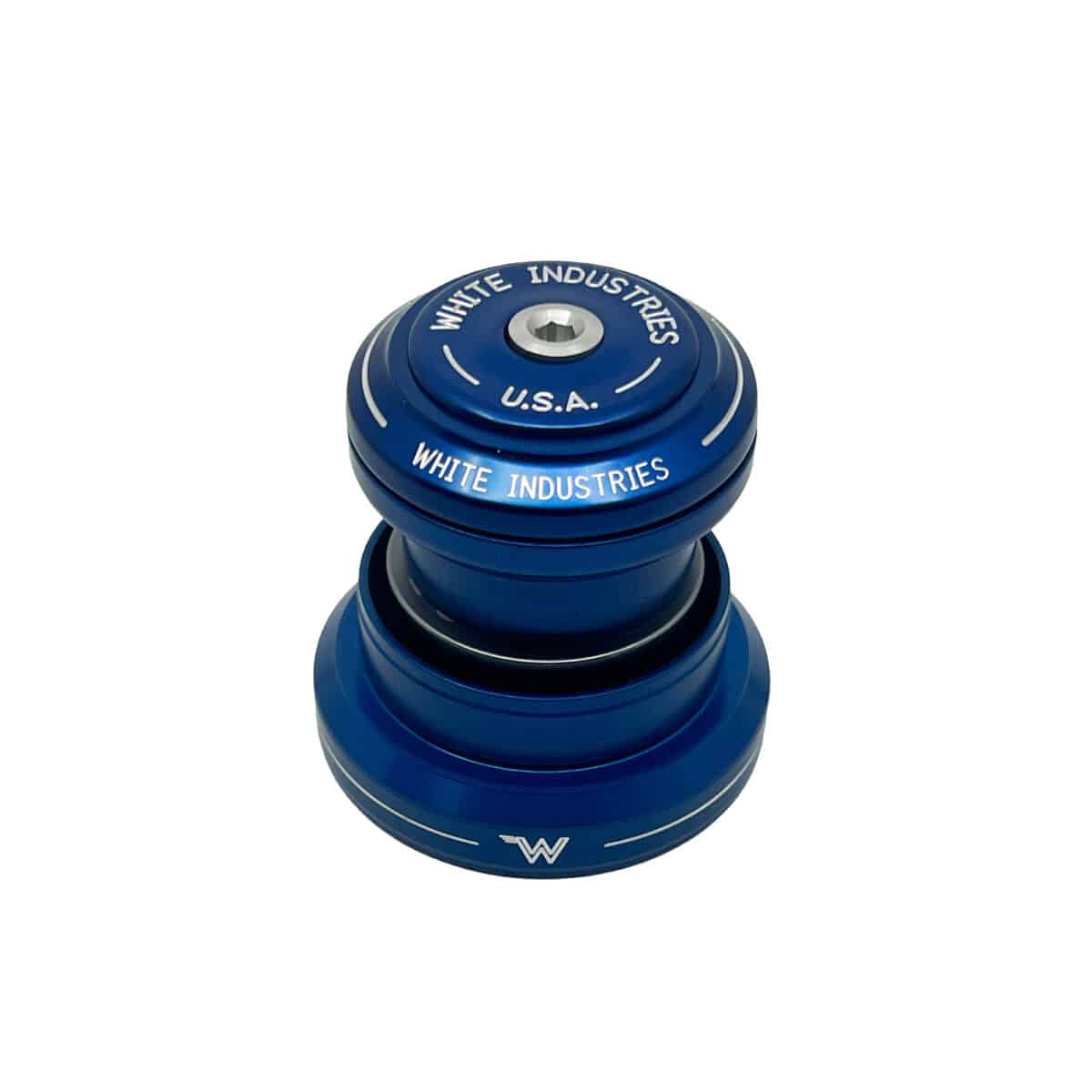

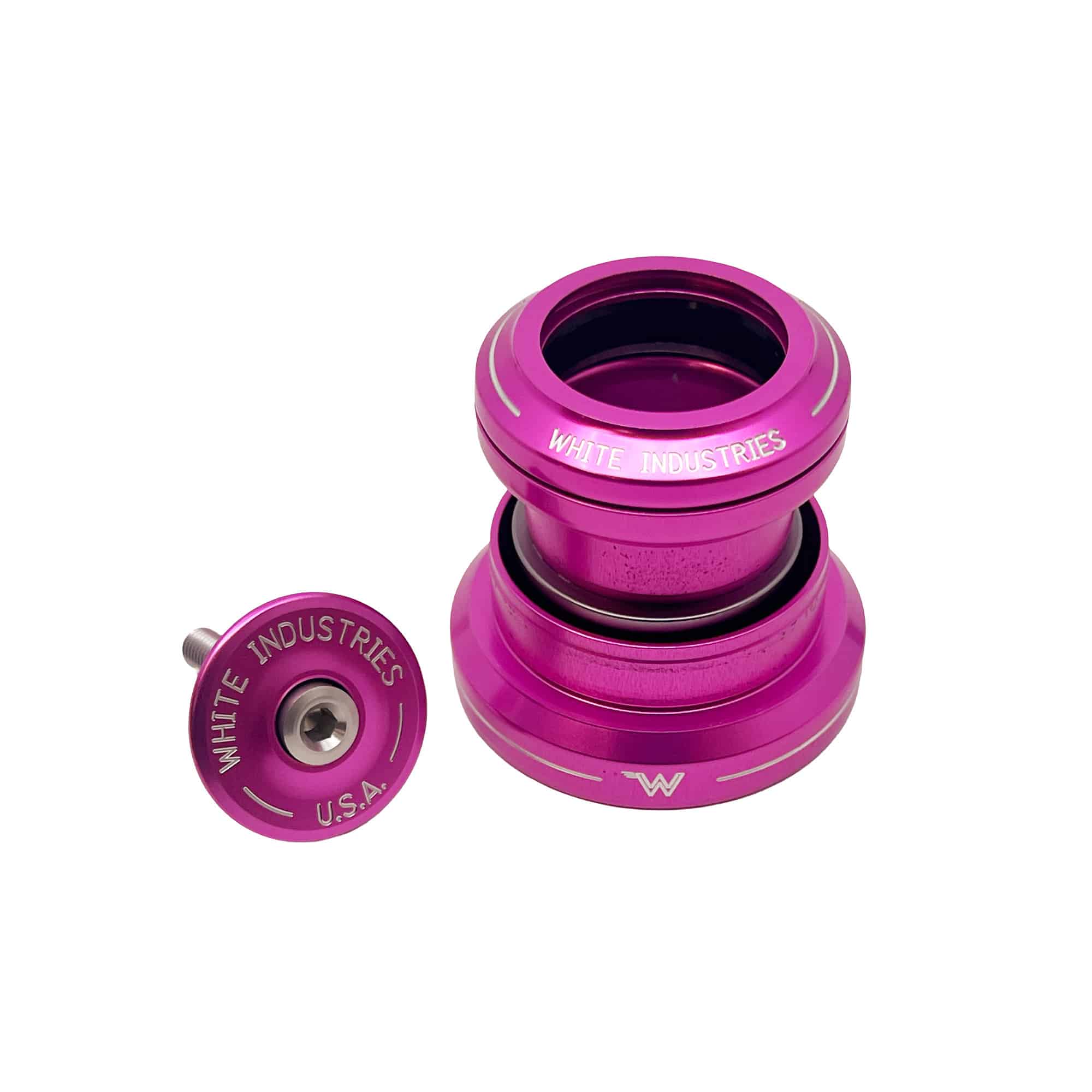

The EC34│EC44 headset is designed to fit frames with tapered head tubes and can accommodate straight and tapered fork steerers with the appropriate crown race.  The “EC” stands for “External Cup” meaning the section of the cup that houses the bearing sits outside of the frame’s head tube and the “34”/”44” (top/bottom) stands for the diameter of the “skirt” that presses into the frame.

Note: As of 9/14/23, headsets will no longer include Star Nuts due to the Earth’s star nut overpopulation crisis. If you need one, they are available separately here.



  • U.S. sourced 6061-T6 aluminum
  • Machine engraved White Industries logos
  • Easily replaceable Enduro bearings
  • “Split” crown race for tool-free installation and removal
  • Really sweet matching headset spacers available separately
  • Can accommodate 3 types of fork steerers:
    • “Straight 1-⅛” with a 30mm crown race seat
    • “Tapered 1-¼” with a 33mm crown race seat
    • “Tapered 1-½” with a 40mm crown race seat


  • SHIS specification
    • Upper: EC34/28.6
    • Lower: EC44/30, EC44/33, or EC4440
  • Stack height
    • Upper: 15mm
    • Lower: 12mm
  • SHIS definitions on the Park Tools website: here
  • Frame/Fork specs:

Frame upper head tube inside diameter

33.9mm to 33.95mm

Frame lower head tube inside diameter

43.95mm to 44mm

Fork steerer diameter top section

28.45mm to 28.6mm

Crown race seat diameter for

“straight 1-⅛”

30.015mm to 30.075mm

Crown race seat diameter for

“tapered 1-¼”

33.03mm to 30.09mm

Crown race seat diameter for

“tapered 1-½”

39.79mm to 39.85mm



Headset Model

Upper Bearing (inner/outer angle) Lower Bearing

(inner/outer angle)

Lower Fork Race Compatibility


ACB3645SS 36/45 ACB6808CCSS 36/45

1-⅛” (30mm)

 1-¼” (33mm)

 1-½” (40mm)
