SQROAD



SQUARE TAPER ROAD






the square taper road

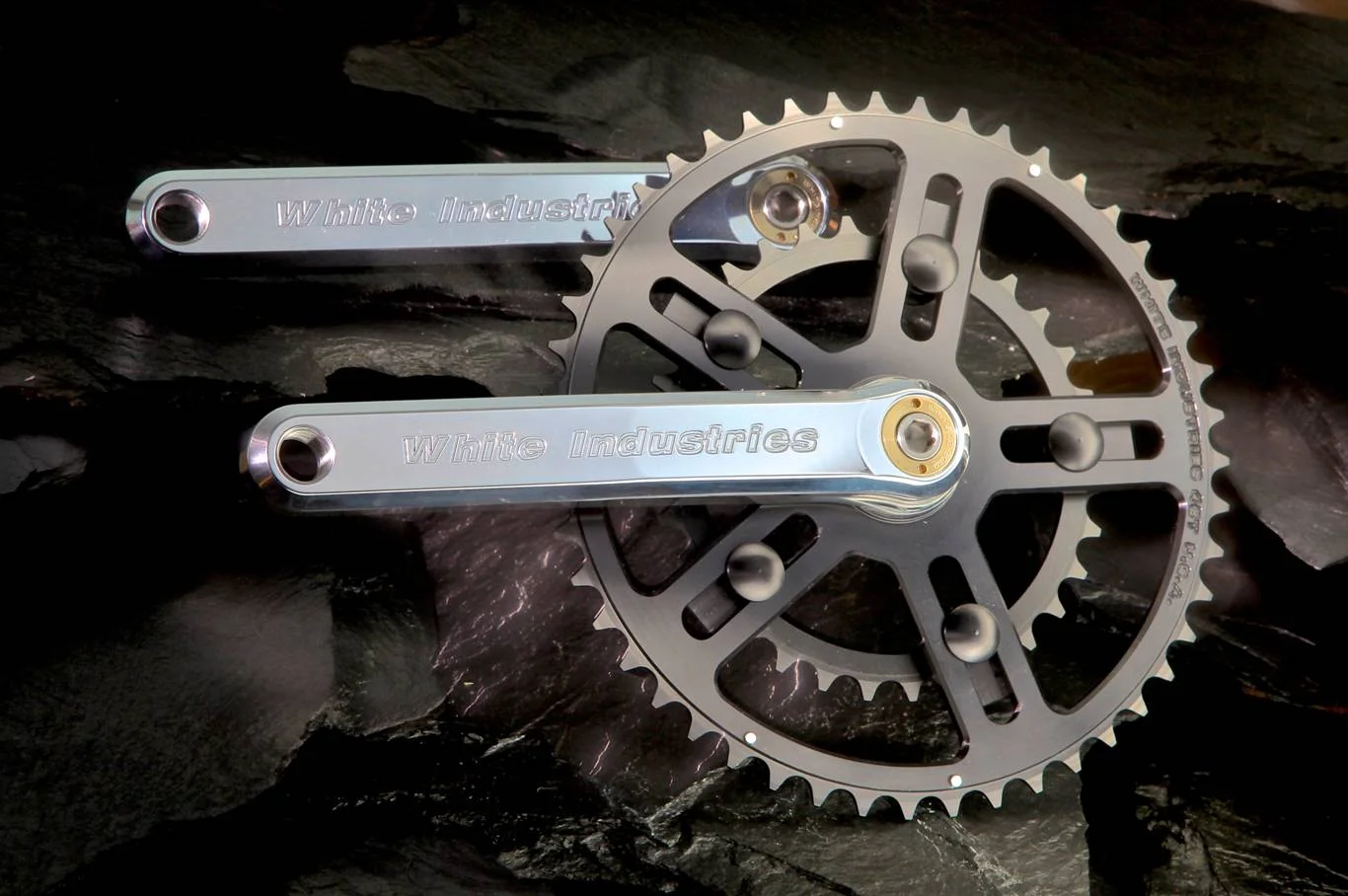

Our square taper road crankset is both an elegant and durable addition to your road bike. The crank set is designed as a traditional double ring crank set, however, it can also be paired with one of our single speed chain rings and be set up as a single. The crank is designed with a low Q factor, 150mm, that allows the arms to sit close to the chain stays effectively giving one more direct power transfer into each pedal stroke. The outer ring is innovative in design with a splined ring interfacing to the crank set. Engineered into the ring design is an elongated five window design that replaces the traditional chainring bolt circle. The windows are ingeniously unique and versatile allowing the inner ring to self center without being confined to a specific bolt circle. The chain rings are machined out of 7075, hard black anodized, and ramped and pinned for maximum shifting efficiency.  In addition, the road crank arms can be mated to the ENO single speed rings for a 1x road bike option.



SQUARE TAPER ROAD specs

Material: 2024 aluminum

BB type: JIS square Taper

Crank length: 165mm, 170mm, 172.5mm, 175mm, 180mm

Weight: 655 grams

Finish: polished silver, black

Available in: single speed/1x ENO rings or VBC double rings

Crank arms only US MSRP

Silver: $249.50       Black: $261.50

Bottom Bracket Compatibility

Crank Clearences

Crank instructions
