The XMR+

When designing the XMR+ the first thing that came to mind was wide. wide rims, wide tires, and most importantly wide hub flanges. Instead of doing just an endcap change we redesigned the hub shell to optimize the flange spacing for Boost, giving you a wider bracing angle and a stronger wheel build. With a stronger wheel build you need a strong hub, using a titanium freehub and a steal axle this hub will be able to get you up and down any mountain you can ride.

Made in the USA



XMR+ Front

Model: XMR+

Shell: 6061 aluminum

Axle: 17mm cro-mo

  • 15X110

Bearings: two:  17287-2rs

O.L.D.: 110mm

Weight: 180 grams

Finish: polished silver, black

Spoke Hole Drilling: 28, 32, 36

US MSRP Silver: $179  Black: $184

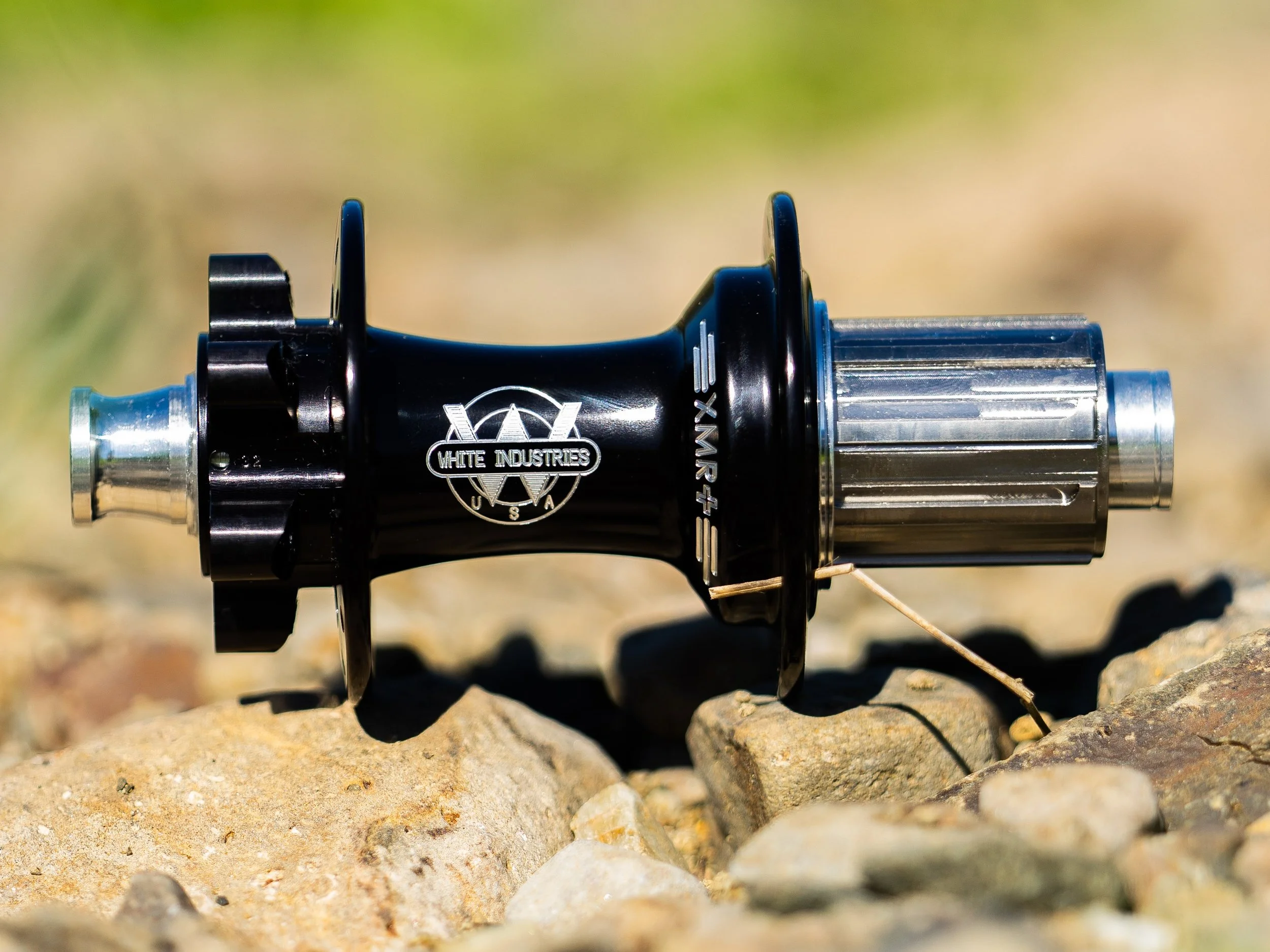

XMR+ Rear

Model: XMR+

Shell: 6061 aluminum

Axle: 15mm cro-mo

  • 12X148

Freehub body: 6al4v Titanium 11 speed
Specify:

  • Shimano

  • Shimano Micro Spline

  •  Campy

  • SRAM XD/ SRAM XDR

9/10 speed compatible when used with included spacer

Bearings:

  • Shimano: three: 6902-2rs, one: 3802-W/or two 6802

  • Campy, SRAM XD, Shimano Micro Spline:  two: 6902-2rs, two: 3802-W/or four 6802

Weight: 306 grams

Finish: polished silver, black

Spoke Hole Drilling: 28, 32, 36

US MSRP Silver: $332.25       Black: $339.25
